Engine
Powerful 4 cylinder Turbocharged Kubota engine with 68.4 HP. Displacement 2615cc, Bore x Stroke 87 mm x 110mm.
| Name | SVL65-2 |
|---|---|
| Engine Type | Tier 4 Emission Level |
| Fuel Type | Diesel |
| Cylinders | 4 |
| Engine Model | Kubota V2607-CR-TE4 |
| Engine Net | 59.9 HP |
| Engine Gross | 68.4 HP |
| Displacement | 2,615 cc |
| Rated speed | 2,600 rpm |
| Name | SVL65-2 |
|---|---|
| Track Width - Standard | 320 mm |
| Track Width - Wide | 380 mm |
| Ground pressure Cab - Standard Track | 5 psi |
| Ground pressure Cab - Wide Track | 4.4 psi |
| Track roller (per side) | 4 |
| Track Ground Contact Length | 1,470 mm |
| Traction Force | 3,813 kgf |
| Min. Ground Clearance | 233 mm |
| Name | SVL65-2 |
|---|---|
| Aux Hydraulic Flow - Standard | 65.8 l/min |
| Aux Hydraulic Flow - High | 102.2 l/min |
| Loader Hydraulic Pressure (Per cm2) | 229.4 kgf |
| Name | SVL65-2 |
|---|---|
| ROC - 35% Tipping Load | 953 kg |
| Tipping Load | 2,722 kg |
| Breakout Force - Bucket | 2,093 kg |
| Breakout Force - Lift Arm | 1,935 kg |
| Lift Arm Path | Vertical |
| Name | SVL65-2 |
|---|---|
| Low | 7.8 km/h |
| High | 11.5 km/h |
| Name | SVL65-2 |
|---|---|
| Length | 2,725 mm |
| Width - Standard Track | 1,657 mm |
| Width - Wide Track | 1,717 mm |
| Height | 2,029 mm |
| Operating Weight - Cab | 3,915 kg |
| Name | SVL65-2 |
|---|---|
| Fuel Reservoir | 82 l |
| Hydraulic System | 50 l |
| Hydraulic Tank | 20.3 l |
| Name | SVL65-2 |
|---|---|
| Cab | |
| Open Cab | |
| Front Sliding Window |
Implement Solutions
6-Way Dozer Blades DZ30 Series
View Model
Auger Drive SA35 Series
View Model
Box Blades BB30 Series
View Model
Hopper Brooms HB Series
View Model

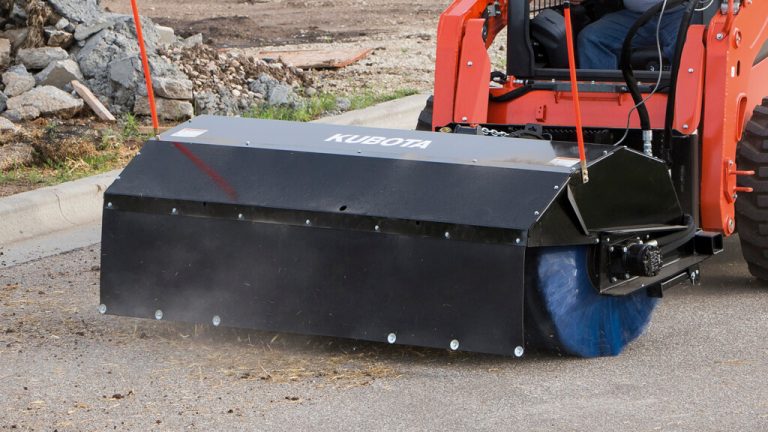

Angling Broom AB Series
View Model

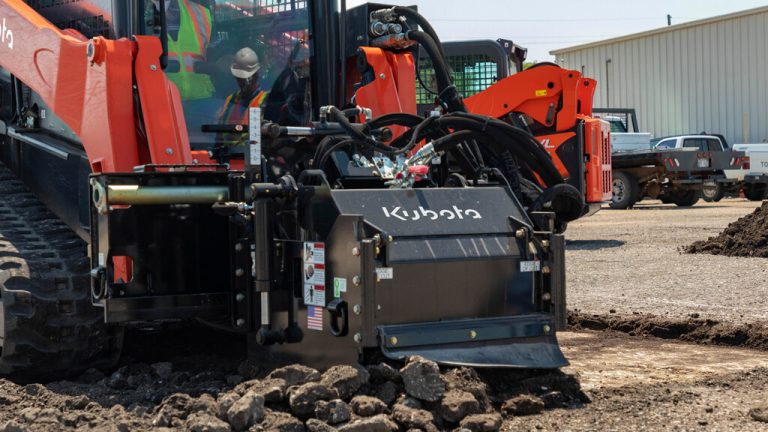

Cold Planers CP30 Series
View Model
Loader Boom LB60 Series
View Model
Pallet Forks AP-PFL56 Series
View Model
Powered Rakes SR27 Series
View Model

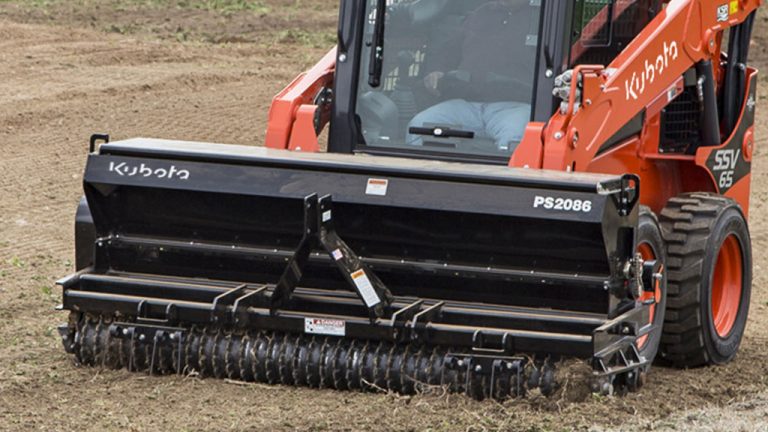

Primary Seeders PS20 Series
View Model
