LB60

Loader Boom LB60 Series

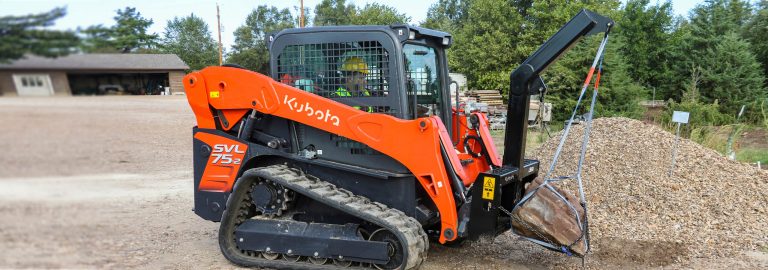

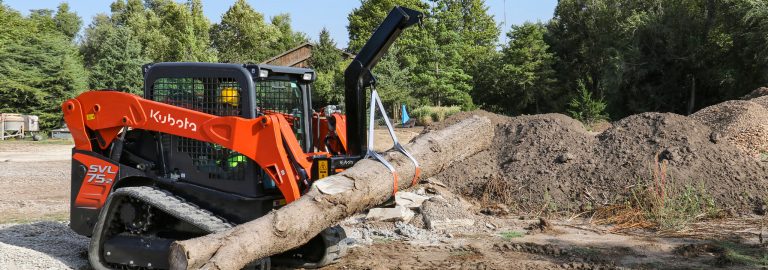

The LB60 Loader Boom provides a stable lifting platform for placing and removing concrete forms, moving large objects, and transplanting trees and shrubs. The 68" height provides extended reach for loading trailers. Reinforced mast provides extra sturdiness. Side plate with holes and slots enable the use of chain or straps for stabilizing. Secondary lift lug added in the middle of the boom increases lifting capabilities when boom is angled forward.

Product Features

Reinforced Mast

Reinforced mast provides extra sturdiness.

Reinforced Mast

Reinforced mast provides extra sturdiness.

Specifications

Download Brochure

Dimensions

Name	LB60
Weight	174 kg
Frame Width	1.14 m
Frame Height	1.73 m

Specifications

Name	LB60
Lift Capacity	2,722 kg
Lift Lugs , 2.5cm Plate	2
Lift Lug Hole Diameter – Max. Shackle Pin Size	2.5 cm
Side Plate – Slot for Chain Size	8 mm
Side Plate – Hole for Chain or Straps	76 mm
Reinforced Mast Plate	6 mm
