SA35

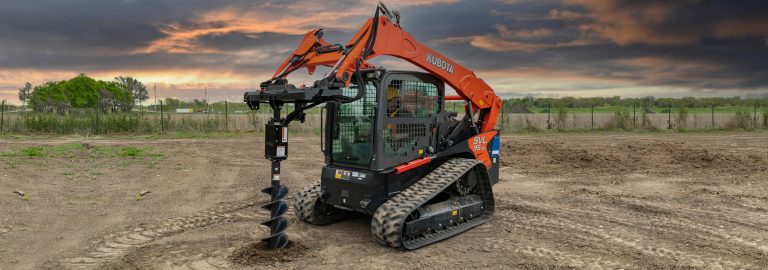

Auger Drive SA35 Series
Product Features
1
2
3
Hydraulic hoses
Hydraulic hoses are routed out the top of the gearbox housing, allowing housing to follow auger into a deeper hole without damaging hoses.
| Name | SA35 |
|---|---|
| Min. Hydraulic Flow | 57 l/min |
| Max. Hydraulic Flow | 95 l/min |
| Base Weight w/o Options | 168.7 kg |
| Auger Flighting Thickness | 8 mm |
| Max. Auger Speed | 110 rpm |
| Gearbox | Hydraulically Driven Planetary |
| Gearbox Oil Capacity | 414 mL |
| Hitch | Universal Quick Attach |
| Hydraulic Hose Length | 2.5 m |
| Hydraulic Couplers | Included |
| Name | SA35 |
|---|---|
| Auger Flighting Thickness | 8 mm |
| Auger Teeth | Forged |
| Auger Length | 1.29 m |
| Min. Dirt Auger Size | 6" (152mm) |
| Max. Dirt Auger Size | 36" (914mm) |
| Min. Rock Auger Size | 6" (152mm) |
| Max. Rock Auger Size | 24" (610mm) |
| Short Auger Extension | 24" (610mm) |
| Long Auger Extension | 48" (1219mm) |
