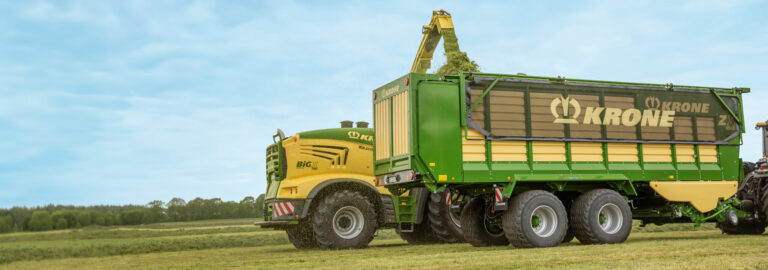

ZX Series Forage Wagons

Model Comparison Product Features Specifications

Forage Wagons

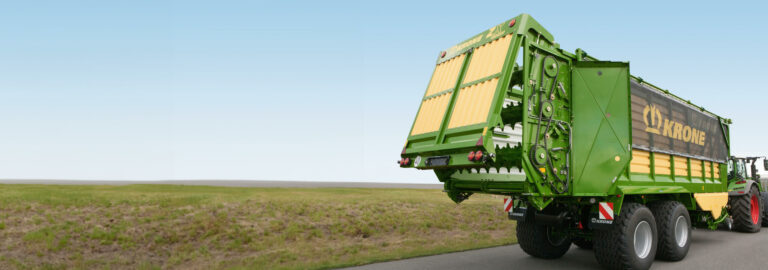

The ZX Series of Forage Wagons are true dual-purpose wagons, designed with state-of-the-art technology to maximise performance and productivity. Effectively functioning as unloading and loading wagons, ideal for discharging maize and forage in a controlled manner. At the same time, they act as transport trailers during maize harvests. The ZX series features the SpeedSharp knife sharpening system, taking only 4 minutes to sharpen and reposition the knife bed within the machine.

Model Comparison

Finance Offers

Download Brochure

43 m3
43 m3
47 m3
47 m3
56 m3
56 m3

Product Features

EasyFlow Pickup

Working at a width of 2.12m, the ZX series’ wide and camless pick-up with 6.5mm helical tines is powered by its own separate hydro motor improving pick-up capacity and ease of maintenance.

EasyFlow Pickup

Working at a width of 2.12m, the ZX series’ wide and camless pick-up with 6.5mm helical tines is powered by its own separate hydro motor improving pick-up capacity and ease of maintenance.

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	ZX430GL-2	ZX430GD-2	ZX470GL-2	ZX470GD-2	ZX560GL-2	ZX560GD-2
Volume DIN	43 m3	43 m3	47 m3	47 m3	56 m3	56 m3
Knives / Theoretical Chopping Length Min.	37 mm	37 mm	37 mm	37 mm	37 mm	37 mm
Knives / Theoretical Chopping Length Max.	48 mm	48 mm	48 mm	48 mm	48 mm	48 mm
Length (approx)	9,845 mm	9,845 mm	10,595 mm	10,595 mm	11,990 mm	11,990 mm
Width (approx)	2,950 mm	2,950 mm	2,950 mm	2,950 mm	2,950 mm	2,950 mm
Height (approx)	3,990 mm	3,990 mm	3,990 mm	3,990 mm	3,990 mm	3,990 mm
Platform Height (approx)	1,700 mm	1,700 mm	1,700 mm	1,700 mm	1,700 mm	1,700 mm
Track Width (approx)	2,050 mm	2,050 mm	2,050 mm	2,050 mm	2,050 mm	2,050 mm
Empty Weight (approx)	11,600 kg	12,100 kg	11,900 kg	12,400 kg	14,200 kg	14,200 kg
Drawbar Tongue Load	4,000 kg	4,000 kg	4,000 kg	4,000 kg	4,000 kg	4,000 kg
Gross Weight w/ Tandem Axle	20,000 kg	20,000 kg
Gross Weight w/ Triple Axle			27,000 kg	27,000 kg	27,000 kg	27,000 kg
Pick-Up Work Width	2,125 mm	2,125 mm	2,125 mm	2,125 mm	2,125 mm	2,125 mm
Articulated Drawbar Clearance	750 mm	750 mm	750 mm	750 mm	750 mm	750 mm
Crop Feed Width	1,910 mm	1,910 mm	1,910 mm	1,910 mm	1,910 mm	1,910 mm
Rotor Cutter Diameter			880 mm	880 mm	880 mm	880 mm
Tyre Size	800 / 45 R 26.5 Trac	800 / 45 R 26.5 Trac	800 / 45 R 26.5 Trac	800 / 45 R 26.5 Trac	800 / 45 R 26.5 Trac	800 / 45 R 26.5 Trac

Specifications

Name	ZX430GL-2	ZX430GD-2	ZX470GL-2	ZX470GD-2	ZX560GL-2	ZX560GD-2
Minimum HP Requirement	190 hp	190 hp	200 hp	210 hp	240 hp	240 hp
Discharge Rollers		3		3		3
PTO Shaft 6 spline 1 3/4
PTO Shaft 6 spline 1 3/8
Wheel	10 Stud Rim	10 Stud Rim	10 Stud Rim	10 Stud Rim	10 Stud Rim	10 Stud Rim

Standard Options

Name	ZX430GL-2	ZX430GD-2
Automatic Loading – Powerload
EasyFlow Camless Pick-Up
Lower Hitch with Active Steering
880mm Rotor Cutter Diameter / Drive	Gearbox	Gearbox
Pivoting Headboard
Rapid Auto Floor System and Hydraulic Moving Floor
Heavy Duty Spilt Chain and Slat Floor
Wide Angle PTO Shaft
Automatic Loading Sensor
Articulated Drawbar Module and Drawbar Suspension
Strong Parking Jack

Standard Extras

Name	ZX430GL-2	ZX430GD-2	ZX470GL-2	ZX470GD-2	ZX560GL-2	ZX560GD-2
SpeedSharp System
Swing Out Knife Bank w/ 2nd Knife Set
IsoBus	CCI 1200	CCI 1200	CCI 1200	CCI 1200	CCI 1200	CCI 1200
Retrofit STW Power Harness for Non Isobus Tractor
Bottom Hitch	50mm K80 Ball-head	50mm K80 Ball-head	50mm K80 Ball-head	50mm K80 Ball-head	50mm K80 Ball-head	50mm K80 Ball-head
Additional Rear Guide Wheels
Hydropneumatic Axle Suspension
Automatic Drawbar Lift and Lifting Drawbar Sensor
Hydropneumatic Axle Suspension
Tandem Axle w/ Air Brakes			Yes (option)	Yes (option)	Yes (option)	Yes (option)
Tandem Axle Hydraulic Brakes Option
Tridem Axle w/ Air Brakes
Tridem Axle Hydraulic Brakes Option
LED Work Lights
Warning Panels
40km/hr Permission
Extra Work Lights
