ZT Diesel Engine

Model Comparison Product Features Specifications
ZT Diesel Engine previewZT Diesel Engine

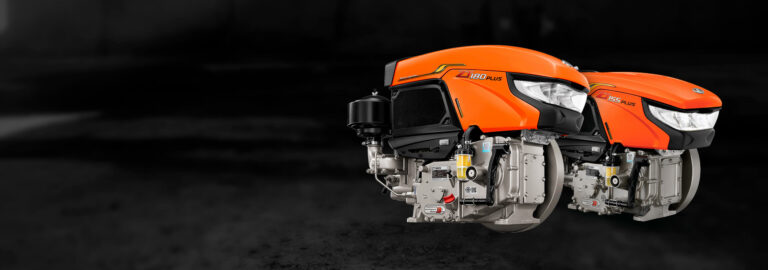

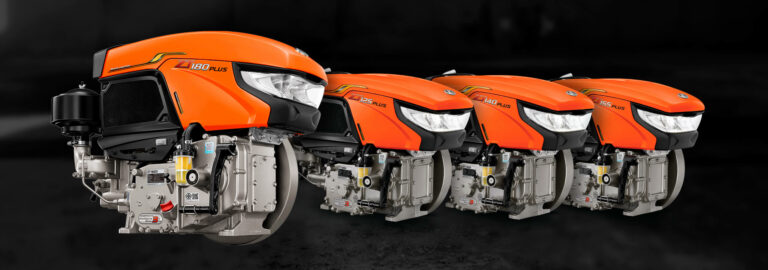

Known for their exceptional reliability and long-lasting performance, the Kubota ZT Series is a powerful horizontal, water-cooled, 4-cycle diesel engine with outputs ranging between 12.3hp (9.2kW) and 18hp (13.4kW). This series is thoughtfully engineered to prioritise user experience and environmental sustainability, ensuring durability and fuel efficiency while also lowering emissions and reducing ecological impact.

Model Comparison

Finance Offers
Download Brochure
  • 666 cc
  • 709 cc
  • 770 cc
  • 944 cc

Product Features

kubota previewkubota
1
2
3
4
5
6

Direct injection system

Direct injection system delivers significant fuel savings compared to competitor products.

Direct injection system

Direct injection system delivers significant fuel savings compared to competitor products.

Specifications

Download Brochure
General
Name ZT125 ZT140 ZT155 ZT180
Cooling Type Water Cooled Water Cooled Water Cooled Water Cooled
Orientation Horizontal Horizontal Horizontal Horizontal
Fuel Type Diesel Diesel Diesel Diesel
Cylinders 1 1 1 1
Stroke 96 mm 96 mm 98 mm 105 mm
Displacement 666 cc 709 cc 770 cc 944 cc
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection
Intake System Naturally Aspirated Naturally Aspirated Naturally Aspirated Naturally Aspirated
Manual Crank Handle N/A N/A N/A
Starting System Manual/Electric Electric Electric Electric
Speed Type Variable Variable Variable Variable
Name ZT125 ZT140 ZT155 ZT180
Net Intermittent Power 9.2 kw (12.3 hp) 10.3 kw (13.8 hp) 11.4 kw (15.3 hp) 13.4 kw (18.0 hp)
Net Rated Speed 2,400 rpm 2,400 rpm 2,400 rpm 2,400 rpm
