Kubota Z400 Series Zero-Turn Mower

Model Comparison Product Features Specifications

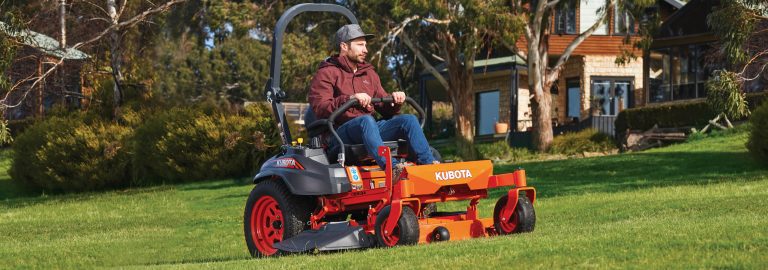

Kubota Z400 Series Zero-Turn Mower previewKubota Z400 Series Zero-Turn Mower
Designed for residential or professional users that demand superior durability, comfort and performance, Kubota’s Z400 series zero-turn mowers deliver all this and more, using powerful engines matched with rugged transmissions, smooth operation levers, and, of course, Kubota’s reputation for outstanding reliability. Residential users require high levels of comfort and convenience. Professional users demand superior durability and performance. Both want easy operation and top level performance to handle even the most challenging mowing tasks. The Z400 Series delivers all this and more.

Model Comparison

Finance Offers
Download Brochure
  • 22 hp
  • 24 hp

Product Features

kubota previewkubota
1
2
3
4
5

Zero-Turn Manoeuvrability

The zero-turn advantage provides a turning radius that is effectively zero, allowing for quick, sharp turns. Couple that manoeuvrability with the Z400's ability to get into tight spaces to navigate obstacles with ease, and cut so closely to eliminate the need for trimming.

Dual operation levers provide the smooth, precise control you’ll need for delicate work around trees and flowerbeds.





Zero-Turn Manoeuvrability

The zero-turn advantage provides a turning radius that is effectively zero, allowing for quick, sharp turns. Couple that manoeuvrability with the Z400's ability to get into tight spaces to navigate obstacles with ease, and cut so closely to eliminate the need for trimming.

Dual operation levers provide the smooth, precise control you’ll need for delicate work around trees and flowerbeds.





Specifications

Download Brochure
Engine
Name Z412KW-48 Z422KW-54
Engine Type Air-cooled Air-cooled
Fuel Type Petrol Petrol
Cylinders 2 2
Engine Model Kawasaki GH7302V Kawasaki GH7301V
Engine Gross 22 hp 24 hp
Displacement 726 cc 726 cc
Fuel Tank Capacity 25.7 l 25.7 l
Rated Speed 3,600 rpm 3,600 rpm
Name Z412KW-48 Z422KW-54
Transmission 2-HST w/Gear reduction 2-HST w/Gear reduction
Drive Method Adjustable Dual Lever Steering Adjustable Dual Lever Steering
Brakes Dry Brakes with Foot Operated Parking Brake Dry Brakes with Foot Operated Parking Brake
PTO Belt Drive with Electric Clutch Belt Drive with Electric Clutch
Name Z412KW-48 Z422KW-54
Front 13×6.5–6 13x6.5-6
Rear 24×9.5-14 24×9.5-14
Name Z412KW-48 Z422KW-54
Max. Forward Speed 16 km/h 16 km/h
Max. Reverse Speed 8 km/h 8 km/h
Name Z412KW-48 Z422KW-54
Model RCK48P-400Z RCK54P-400Z
Mower Lift System Mechanical / Foot pedal Mechanical / Foot pedal
Mower Deck Type Side discharge Side discharge
Deck Depth 127 mm 127 mm
Belt Type Belt drive Belt drive
Deck Steel Thickness 3.4 mm 3.4 mm
Cutting Width 48 in. 54 in.
Number of Blades 3 3
Cutting Height 38 - 127 mm 38 - 127 mm
Mounting System of Mower Parallel linkage Parallel linkage
Blade Tip Speed Max. 18,800 fpm 18,700 fpm
Name Z412KW-48 Z422KW-54
Bag Type 3 Bag, Manual Dump 3 Bag, Manual Dump
Bag Capacity 250 l 250 l
Name Z412KW-48 Z422KW-54
Length 2,055 mm 2,055 mm
Width 1,552 mm 1,710 mm
Height (w/ ROPS Upright) 1,772 mm 1,772 mm
Wheelbase 1,255 mm 1,255 mm
Ground Clearance 124 mm 124 mm
Tread Front 944 mm 944 mm
Tread Rear 1,000 mm 1,000 mm
Turning Radius 0 m 0 m
Weight 394 kg 400 kg
