Wheel Loader R430

Product Features Specifications

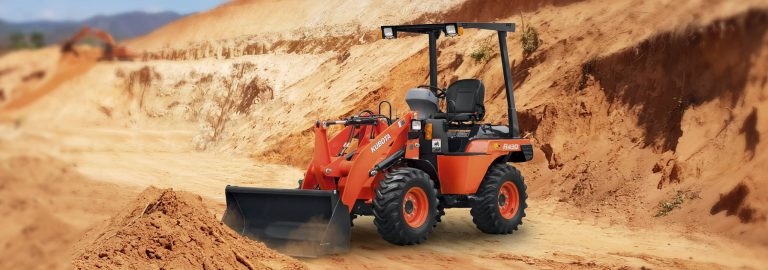

Wheel Loader R430 previewWheel Loader R430
The R430 is versatile and powerful and designed to take on a wide range of challenging jobs, with an excellent breakout force and exceptional reach and clearance. The R430 is only available in Canopy model and replaces the previous R420S with some modern updates including a new powerful T4 engine producing 47.6 HP with an increase of 20% compared to the previous R420. The all round performance, versatility and comfort of this machine make this a great addition to the Kubota wheel loader range.

Product Features

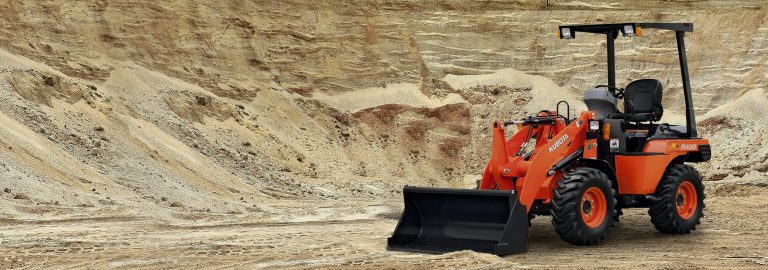

kubota previewkubota
1
2
3
4

Engine & Maintenance

The R430’s powerful engine produces 47.6 horsepower, a remarkable 20% increase over the R420’s 39.2 horsepower. You’ll appreciate that extra muscle when accelerating, pushing, and climbing hills.

The engine bonnet opens wide to the rear giving you easy convenient access to all the key maintenance points, reducing downtime and costs. The new modern digital display with digital meter is easy-to-read and displays error messages to keep the operator fully informed of loader and engine conditions. Fuel level indication buzzer sounds to prevent overfilling.

Standard Pre Cleaner to keep dust and dirt away from engine and extend filter life while reducing maintenance costs.

Engine & Maintenance

The R430’s powerful engine produces 47.6 horsepower, a remarkable 20% increase over the R420’s 39.2 horsepower. You’ll appreciate that extra muscle when accelerating, pushing, and climbing hills.

The engine bonnet opens wide to the rear giving you easy convenient access to all the key maintenance points, reducing downtime and costs. The new modern digital display with digital meter is easy-to-read and displays error messages to keep the operator fully informed of loader and engine conditions. Fuel level indication buzzer sounds to prevent overfilling.

Standard Pre Cleaner to keep dust and dirt away from engine and extend filter life while reducing maintenance costs.

Specifications

Download Brochure
Engine
Name R430
Engine Type Tier 4 Emission Level
Fuel Type Diesel
Cylinders 4
Engine Model Kubota D1803-CR-TIE4-WL5
Engine Net 44.5 HP
Engine Gross 47.6 HP
Displacement 1,826 cc
Rated Speed 2,600 rpm
Name R430
Transmission Load Sensing
Brakes Wet Disc
Name R430
Aux Hydraulic Flow 45.4 l/min
Aux Hydraulic Pressure 18.6 psi
Name R430
Tipping Load Straight With Bucket 2,010 kg
Tipping Load Full Turn With Bucket 1,735 kg
ROC - 50% Tipping Load With Bucket 868 kg
Name R430
Low 4.8 km/h
High 20 km/h
Name R430
Length 4,265 mm
Width w/o Bucket 1,520 mm
Height 2,515 mm
Operating Weight - Canopy 3,080 kg
Name R430
Fuel Reservoir 54 l
Hydraulic System 58 l
Hydraulic Tank 42 l
Name R430
Standard Bucket Capacity 0.4 m3
Breakout Force - Bucket 2,661 kgf
Lifting Capacity At Ground Level 1,734 kgf
Loader Raise Time 4.4 sec
Loader Lower Time 3.3 sec
Name R430
Ground Clearance 280 mm
Wheelbase 1,775 mm
Tread 1,180 mm
Loader Clearance Circle w/ Standard Bucket 3,695 mm
Turning Radius Track Circle 3,085 mm
Bucket Width 1,580 mm
Height To Hinge Pin 2,805 mm
Dump Clearance 2,150 mm
Reach Fully Raised 805 mm
Digging Depth 45 mm
Dump Angle Fully Raised 44 degree
Tilt Back Angle At Travelling Position 51 degree
Articulation Angle 40 degree
Name R430
Canopy
Cab
