621G

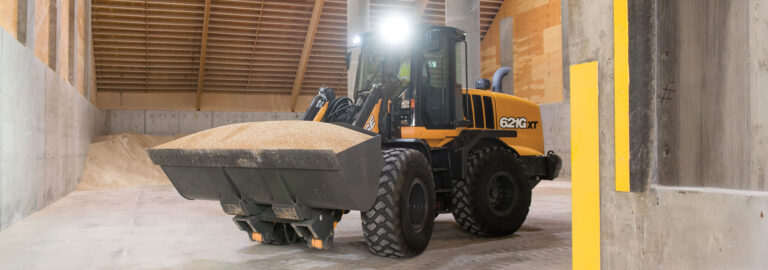

Case Wheel Loader 621G
Model Comparison
- 106 kW (142.1 hp)
- 128 kW (171.7 hp)
- 128 kW (171.7 hp)
- N/A
- N/A
- N/A
- N/A
- N/A
Product Features
1
2
3
4
Productivity
Representing one of the industry’s most popular size classes, the 521G provides extreme application versatility (three linkage options, multiple axle options, and broad attachment compatibility), best-in-class horsepower and breakout force, and powerful hydraulics, ensuring owners get the most out of each machine. Four power modes, excellent fuel efficiency, a new dynamic operator environment and proven engine and emissions technologies make these among the most productive and efficient loaders on the market.
| Name | 621G |
|---|---|
| Maker & Model | FTP N67 |
| No. of cylinders | 6 |
| Displacement (l) | 6.7 |
| Air intake | Turbocharger with air-to-air cooling. No EGR valve is used: Only fresh air is taken for combustion and no extra cooling system is needed. |
| Injection | Common Rail Multiple Injection. |
| After Treatment System | HI-eSCR 2 (DOC+SCRoF) |
| Emission level | Compliant with EU Stage IV |
| Maximum power | 128 kW (171.7 hp) |
| @ Engine speed (ISO 14396) (rpm) | 1600 |
| Maximum Torque | 730 Nm |
| @ Engine speed (ISO 14396) (rpm) | 1600 |
| Name | 621G |
|---|---|
| ProShift | 5-speed powershift with lock up (optional). Lock up clutch eliminates torque converter losses from second gear up to fifth gear. Intelligent Clutch Cut Off (ICCO) with Power Inch: Proportional declutching. |
| 4-speed ZF Powershift | with Intelligent Clutch Cut Off (ICCO) |
| Name | 621G |
|---|---|
| Heavy Duty ZF Axles with Limited Slip Differential on both front and rear axle | |
| Heavy Duty ZF Axles with automatic 100% differential lock on front and open | |
| Heavy Duty ZF Axles with automatic 100% differential lock on front and LSD on rear axle | |
| Standard ZF Axles with Limited Slip Differential on both front and rear axle | |
| Axles oscillation angle (total) | 24 ° |
| Name | 621G |
|---|---|
| Standard tire’s size | 20.5R25 |
| Name | 621G |
|---|---|
| Service brake | Maintenance free, self-adjusting wet 4-wheel disc brakes. |
| Service brake disc area | 0.39 m²/hub |
| Parking brake | With the negative brake all four wheels are automatically stopped when the engine is stopped. |
| Parking brake disc area | 58 cm² |
| Name | 621G |
|---|---|
| Loader control valve | Bosch-Rexroth, closed center, load sensing/flow sharing. |
| Steering | Steering cylinders actuated by hydraulic orbitrol under priority valve, controlled, in turn, by active load sensing signal. |
| Loader controls | Pilot with proportional solenoid valves controlled by electro-hydraulic single joystick or single-axis 2/3 levers. |
| Pump type | Single, variable displacement |
| Max oil flow | 169 l/min |
| @ engine speed | 2,000 rpm |
| Name | 621G |
|---|---|
| Max oil flow | 169 l/min |
| Max pressure (bar) | 249 - 255 |
| Name | 621G |
|---|---|
| Fuel tank, usable volume | 248 L |
| DEF (AdBlue®) tank | 41.3 L |
| Engine coolant | 27 L |
| Engine oil | 13 L |
| Hydraulic oil tank | 91 L |
| Total hydraulic system oil | 148 L |
| Front and Rear Axles (l) | 22+22 |
| Transmission oil | 19 L |
| Name | 621G |
|---|---|
| Protection against falling objects (FOPS) | According to ISO EN 3449 std. |
| Protection against roll-over (ROPS) | According to ISO EN 13510 std. |
| Name | 621G |
|---|---|
| In the cab - LpA (dB) (ISO 6396-2008) | 68 |
| Outside - LwA (dB) (2000/14/EC) | 104 |
| Vibrations | Operator ‘s seat meets the criteria of ISO 7096:2000. The vibrations transmitted do not exceed 0.5 m/s² |
| Name | 621G |
|---|---|
| System voltage (V) | 24 |
| Batteries (n° x V) | 2 x 12 |
| Alternator - capacity | 120 A |
