VariPack Series Round Balers

Model Comparison Product Features Specifications

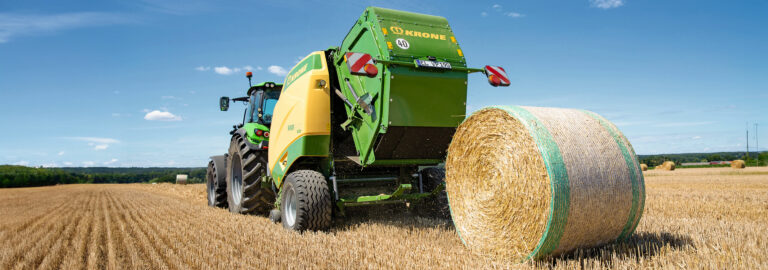

Krone VariPack and VariPack Plus round balers are specifically designed for baling dry crops thanks to the smooth belts utilised in the bale chamber. They offer an uncomplicated design, high throughputs and high baling densities. Available in two model sizes, the compact VariPack 165 can produce round bales from 0.8 to 1.50 metres in diameter, while the large-diameter VariPack 190 is capable of producing round bales between 0.8 and 1.90 metres in diameter. VariPack XC models feature the XCut cutting unit with 17 blades as standard and 26 blades on VariPack Plus models.

Model Comparison

Finance Offers
Download Brochure
  • 80 hp
  • 90 hp
  • 80 hp
  • 90 hp
  • 100 hp
  • 100 hp
  • 100 hp
  • 100 hp

Product Features

kubota previewkubota
1
2
3
4

EasyFlow

The VariPack EasyFlow camless pickup features a v shaped 2.15m EasyFlow pick-up. Double tines gather the material effectively and feed it consistently to the feed rotor and rotor cutter. In rough terrain, the spring-loaded EasyFlow provides perfect ground contouring. The EasyFlow system is camless, resulting in a simple design with fewer moving parts, less wear, and quiet running. The tines are particularly powerful and hard-wearing, narrowly spaced at 55 mm, they're capable of picking up heavy crops thoroughly and without contamination.

EasyFlow

The VariPack EasyFlow camless pickup features a v shaped 2.15m EasyFlow pick-up. Double tines gather the material effectively and feed it consistently to the feed rotor and rotor cutter. In rough terrain, the spring-loaded EasyFlow provides perfect ground contouring. The EasyFlow system is camless, resulting in a simple design with fewer moving parts, less wear, and quiet running. The tines are particularly powerful and hard-wearing, narrowly spaced at 55 mm, they're capable of picking up heavy crops thoroughly and without contamination.

VariPack Series Round Balers in Kubota Down To Earth

Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their VariPack Series Round Balers.

First Class Field Work previewFirst Class Field Work

First Class Field Work

DTE Issue 4

Specifications

Download Brochure
Dimensions & Weight
Name V165 V165XC V190 V190XC V165 Plus V165XC Plus V190 Plus V190XC Plus
Length 4,900 mm 4,900 mm 4,900 mm 4,900 mm 4,900 mm 4,900 mm 4,900 mm 4,900 mm
Height 2,980 mm 2,980 mm 3,050 mm 3,050 mm 3,050 mm 2,980 mm 3,050 mm 3,050 mm
Width 2,750 mm 2,750 mm 2,750 mm 2,750 mm 2,750 mm 2,750 mm 2,750 mm 2,750 mm
Camless Pick-up Work Width 2,150 mm 2,150 mm 2,150 mm 2,150 mm 2,150 mm 2,150 mm 2,150 mm 2,150 mm
Machine Weight 3,730 kg 3,860 kg 3,890 kg 4,020 kg 4,190 kg 4,590 kg 4,355 kg 4,755 kg
Tyre Size 500 / 55-20 12PR 500 / 55-20 12PR 500 / 55-20 12PR 500 / 55-20 12PR 600 / 50-20 R22.5 600 / 50-20 R22.5 600 / 50-20 R22.5 600 / 50-20 R22.5
Name V165 V165XC V190 V190XC V165 Plus V165XC Plus V190 Plus V190XC Plus
Bale Width & Diameter 800 x 1650-1200 mm 800 x 1650-1200 mm 800 x 1650-1200 mm 800 x 1650-1200 mm 800 x 1650-1200 mm 800 x 1650-1200 mm 800 x 1900-1200 mm 800 x 1900-1200 mm
Endless Belts 4 mm 4 mm 4 mm 4 mm 3 mm 3 mm 3 mm 3 mm
Minimum PTO 80 hp 90 hp 80 hp 90 hp 100 hp 100 hp 100 hp 100 hp
Tine Rows 4 4 4 4 5 5 5 5
Cutter
Blades 17 17 26 26
Minimum Blade Spacing 64 mm 64 mm 42 mm 42 mm
Drop Floor (to clear blockages)
Rotor Diameter 530 mm 530 mm 530 mm 530 mm 530 mm 530 mm 530 mm 530 mm
Driveshaft Speed 540 rpm 540 rpm 540 rpm 540 rpm 540 rpm 1,000 rpm 540 rpm 1,000 rpm
Hydraulic Couplers 2 SA – Free Return Line 2 SA – Free Return Line 2 SA – Free Return Line 2 SA – Free Return Line 1 SA, 1 DA – Free Return Line 1 SA, 1 DA – Free Return Line 1 SA, 1 DA – Free Return Line 1 SA, 1 DA – Free Return Line
Rear Door Timing Min. 4 sec 4 sec 4 sec 4 sec 4 sec 4 sec 4 sec 4 sec
Rear Door Timing Max. 5 sec 5 sec 5 sec 5 sec 5 sec 5 sec 5 sec 5 sec
Name V165 V165XC V190 V190XC V165 Plus V165XC Plus V190 Plus V190XC Plus
Camless Pick-Up "EasyFlow" Straight Tine Arrangement 4 Rows 4 Rows 4 Rows 4 Rows 5 Rows 5 Rows 5 Rows 5 Rows
Integral Rotor Intergrates 2 Feed Rollers
XC Zero Knife Setting (operation from cab) N/A
3 Zone Hydraulic density (operation from cab)
Hard / Soft Core (operation from cab)
Electric Baling Pressure Valve BYPY BYPY BYPY BYPY BYPY BYPY BYPY BYPY
PTO Wide Angle with Cam Clutch
Roller Crop Guard
Automatic Chain Lubrication
Mechanical Jack Stand
Fire Extinguisher Holder
Name V165 V165XC V190 V190XC V165 Plus V165XC Plus V190 Plus V190XC Plus
Single Axle Yes with Brakes Yes with Brakes Yes with Brakes Yes with Brakes Yes with Brakes Yes with Brakes Yes with Brakes Yes with Brakes
Net Wrap System
LED Work Lights
IsoBus Ready and Monitor
Comfort ECU Job Computer CCI800 CCI800 CCI800 CCI800 CCI800 CCI800 CCI800 CCI800
Retrofit STW Power Harness for Non Isobus Tractor
Cleaning Scraper Rollers
Easy Slide Net Wrap System
Safety Chain
Bale Kicker
TIM 1.0 Baler Automation
