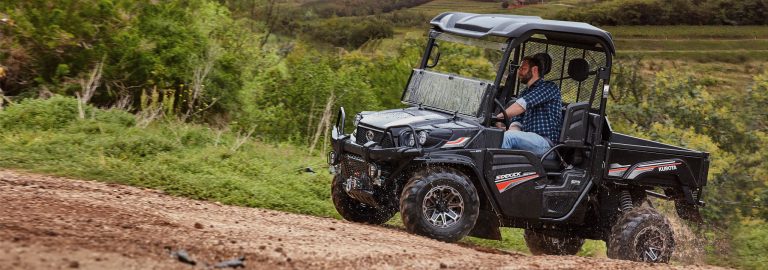

Kubota RTV-XG850 Off-Road RTV
Product Features
Engine
The Sidekick’s quick acceleration and high transport speed—up to 64 km/h come from a powerful 54 HP Petrol engine. Equipped with a CVT Plus transmission, this rugged, water-cooled engine provides plenty of torque for an astonishingly quick and smooth take-off.
ISC (Idle Speed Control) and highland correction ensure stable power for any situation. And you’ll never have to worry about overheating with a built-in microcomputer that monitors engine oil temperature and sounds an alarm.
Kubota RTV-XG850 Off-Road RTV in Kubota Down To Earth
Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their Kubota RTV-XG850 Off-Road RTV.
| Name | RTV-XG850WD-A | RTV-XG850WR-A | RTV-XG850GL-AS | RTV-XG850SL-AS |
|---|---|---|---|---|
| Engine Model | Kubota GZ850H-EM-UV | Kubota GZ850H-EM-UV | Kubota GZ850H-EM-UV | Kubota GZ850H-EM-UV |
| Fuel Type | Petrol | Petrol | Petrol | Petrol |
| Cylinders | 2 | 2 | 2 | 2 |
| Engine Gross | 54 hp | 54 hp | 54 hp | 54 hp |
| Displacement | 851 cc | 851 cc | 851 cc | 851 cc |
| Fuel Tank Capacity | 32.7 l | 32.7 l | 32.7 l | 32.7 l |
| Rated Speed | 6,000 rpm | 6,000 rpm | 6,000 rpm | 6,000 rpm |
| Name | RTV-XG850WD-A | RTV-XG850WR-A | RTV-XG850GL-AS | RTV-XG850SL-AS |
|---|---|---|---|---|
| Transmission | CVT Plus | CVT Plus | CVT Plus | CVT Plus |
| Drive Method | Selectable 4WD | Selectable 4WD | Selectable 4WD | Selectable 4WD |
| Brakes | Dry Disc | Dry Disc | Dry Disc | Dry Disc |
| Differential Front | Limited-slip differential | Limited-slip differential | Limited-slip differential | Limited-slip differential |
| Differential Rear | Foot operated differential lock | Foot operated differential lock | Foot operated differential lock | Foot operated differential lock |
| Gear Selection | Hi-Lo Range, forward, neutral, reverse, | Hi-Lo Range, forward, neutral, reverse, | Hi-Lo Range, forward, neutral, reverse, | Hi-Lo Range, forward, neutral, reverse, |
| Steering | Speed Sensitive Electric Power Steering | Speed Sensitive Electric Power Steering | Speed Sensitive Electric Power Steering | Speed Sensitive Electric Power Steering |
| Name | RTV-XG850WD-A | RTV-XG850WR-A | RTV-XG850GL-AS | RTV-XG850SL-AS |
|---|---|---|---|---|
| Front Suspension | Independent, Dual cast iron A-arms with adjustable spring preload | Independent, Dual cast iron A-arms with adjustable spring preload | Independent, Dual cast iron A-arms with adjustable spring preload | Independent, Dual cast iron A-arms with adjustable spring preload |
| Front Suspension Travel | 229 mm | 229 mm | 229 mm | 229 mm |
| Rear Suspension | Independent with coil over shock | Independent with coil over shock | Independent with coil over shock | Independent with coil over shock |
| Rear Suspension Travel | 216 mm | 216 mm | 216 mm | 216 mm |
| Name | RTV-XG850WD-A | RTV-XG850WR-A | RTV-XG850GL-AS | RTV-XG850SL-AS |
|---|---|---|---|---|
| Tubular Overhead Structure | 50.8 mm | 50.8 mm | 50.8 mm | 50.8 mm |
| Seat Belts | 3-point | 3-point | 3-point | 3-point |
| Certification | SAE J2194 and OSHA ROPS standards | SAE J2194 and OSHA ROPS standards | SAE J2194 and OSHA ROPS standards | SAE J2194 and OSHA ROPS standards |
| Name | RTV-XG850WD-A | RTV-XG850WR-A | RTV-XG850GL-AS | RTV-XG850SL-AS |
|---|---|---|---|---|
| Front | 25 x 10-12 | 25 x 10-12 | 25 x 10-12 | 25 x 10-12 |
| Rear | 25 x 10-12 | 25 x 10-12 | 25 x 10-12 | 25 x 10-12 |
| Name | RTV-XG850WD-A | RTV-XG850WR-A | RTV-XG850GL-AS | RTV-XG850SL-AS |
|---|---|---|---|---|
| Maximum High Speed | 64.4 km/h | 64.4 km/h | 64.4 km/h | 64.4 km/h |
| N/A | N/A | N/A |
| Name | RTV-XG850WD-A | RTV-XG850WR-A | RTV-XG850GL-AS | RTV-XG850SL-AS |
|---|---|---|---|---|
| Length | 3,093 mm | 3,093 mm | 3,093 mm | 3,093 mm |
| Width | 1,605 mm | 1,605 mm | 1,605 mm | 1,605 mm |
| Height | 2,020 mm | 2,020 mm | 2,020 mm | 2,020 mm |
| Tread Front | 1,320 mm | 1,320 mm | 1,320 mm | 1,320 mm |
| Tread Rear | 1,320 mm | 1,320 mm | 1,320 mm | 1,320 mm |
| Wheelbase | 2,045 mm | 2,045 mm | 2,045 mm | 2,045 mm |
| Turning Radius | 4 m | 4 m | 4 m | 4 m |
| Ground Clearance Front | 249 mm | 249 mm | 249 mm | 249 mm |
| Ground Clearance Rear | 249 mm | 249 | 249 mm | 249 mm |
| Weight | 799 kg | 799 kg | 799 kg | 799 kg |
| Towing Capacity | 907.2 kg | 907.2 kg | 907.2 kg | 907.2 kg |
| Payload Capacity | 651 kg | 651 kg | 651 kg | 651 kg |
| Name | RTV-XG850WD-A | RTV-XG850WR-A | RTV-XG850GL-AS | RTV-XG850SL-AS |
|---|---|---|---|---|
| Material | Steel | Steel | Steel | Steel |
| Length | 1,465 mm | 1,465 mm | 1,465 mm | 1,465 mm |
| Width | 1,030 mm | 1,030 mm | 1,030 mm | 1,030 mm |
| Depth | 290 mm | 290 mm | 290 mm | 290 mm |
| Bed Height | 873 mm | 873 mm | 873 mm | 873 mm |
| Volume | 0.43 m3 | 0.43 m3 | 0.43 m3 | 0.43 m3 |
| Cargo Bed Capacity | 454 kg | 454 kg | 454 kg | 454 kg |
| Dumping System | Manual with optional electric hydraulic kit | Manual with optional electric hydraulic kit | Manual with optional electric hydraulic kit | Manual with optional electric hydraulic kit |
