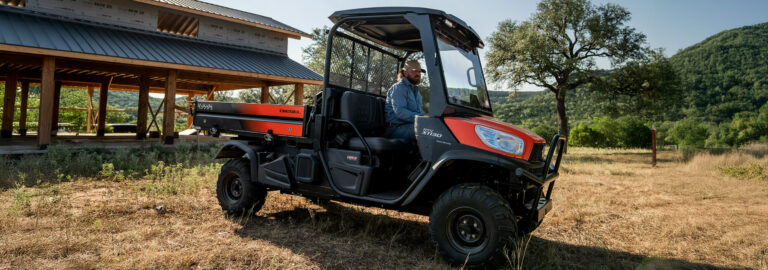

Kubota RTV-X1130 Heavy-Duty RTV

Model Comparison Product Features Specifications
Kubota RTV-X1130 Heavy-Duty RTV previewKubota RTV-X1130 Heavy-Duty RTV
Kubota's high performing and reliable diesel utility vehicle range just got even better with the addition of the all-new RTV-X1130. This long bed model holds true to the legacy of the RTV-X Series; powered by Kubota's D1105 Diesel Engine, paired with VHT-X transmission, hydraulic dump box and power steering; features that have made the X-Series so popular. With it comes a suite of new features like Pro-Konvert functionality and new cargo box accessories, that represent capability re-imagined. No matter what job you have to get done, or how you like to spend your free-time, the RTV-X1130 is built to outwork!

Model Comparison

Finance Offers
Download Brochure
  • 24.8 hp
  • 24.8 hp
  • 24.8 hp
  • 21.6 hp
  • 21.6 hp
  • 21.6 hp
  • 24.8 hp
  • 24.8 hp
  • 24.8 hp

Product Features

kubota previewkubota
1
2
3
4
5
6
7

Engine

The Kubota RTV-X1130 boasts a powerful 24.8HP liquid-cooled diesel engines for long and strenuous tasks. The 3 cylinder engines are quiet, powerful and are renowned bullet proof marvels at the true heart of the RTV-X Series

Engine

The Kubota RTV-X1130 boasts a powerful 24.8HP liquid-cooled diesel engines for long and strenuous tasks. The 3 cylinder engines are quiet, powerful and are renowned bullet proof marvels at the true heart of the RTV-X Series

Specifications

Download Brochure
Engine
Name RTV-X1130
Engine Model Kubota D1105
Fuel Type Diesel
Cylinders 3
Engine Gross 24.8 hp
Displacement 1,123 cc
Fuel Tank Capacity 30 l
Rated Speed 3,000 rpm
Name RTV-X1130
Transmission Variable Hydro Transmission
Drive Method Selectable 4WD
Brakes Wet Disc
Differential Front Limited-slip differential
Differential Rear Foot operated differential lock
Gear Selection Hi-Lo Range, forward, neutral, reverse,
Steering Hydrostatic Power Steering
Name RTV-X1130
Front Suspension Independent, Dual A-arms with adjustable spring preload
Front Suspension Travel 205 mm
Rear Suspension Independent with coil over shock
Rear Suspension Travel 205 mm
Name RTV-X1130
Tubular Overhead Structure 50.8 mm
Seat Belts Lap Sash
Certification SAE J2194 and OSHA 1928 ROPS and ANSI B71.9
Name RTV-X1130
Front 25 x 10-12
Rear 25 x 10-12
Name RTV-X1130
Maximum High Speed 40 km/h
Name RTV-X1130
Length 3,925 mm
Width 1,605 mm
Height 2,025 mm
Tread Front 1,280 mm
Tread Rear 1,280 mm
Wheelbase 2,495 mm
Turning Radius 5.2 m
Ground Clearance Front 293 mm
Ground Clearance Rear 257 mm
Weight 1,060 kg
Towing Capacity 590 kg
Payload Capacity 754 kg
Name RTV-X1130
Material Steel
Length 1,837 mm
Width 1,384 mm
Depth 294 mm
Bed Height 924 mm
Volume 0.74 m3
Cargo Bed Capacity 550 kg
Dumping System Hydraulic
