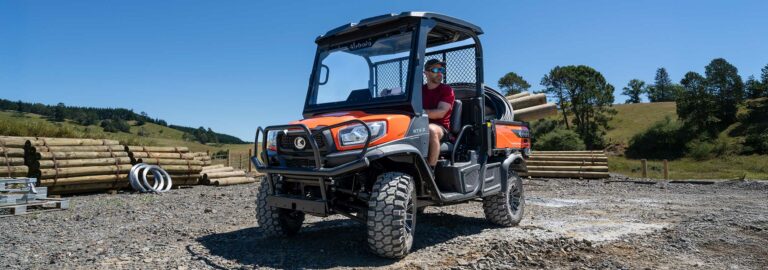

Kubota RTV-X Series Utility Vehicle

Model Comparison Product Features Specifications

Agriculture

Utility Vehicles

RTV-X Series Diesel

Kubota's all-new RTV-X Series are workhorse diesel utility-vehicles that help power your productivity, are tough and dependable and make you reimagine what side by side vehicles is capable of. Offering a smooth ride, exceptional drivability and optimum comfort, the Kubota RTV-X Series is designed for the operator seeking a new level of efficiency and convenience.

Model Comparison

Finance Offers

Download Brochure

24.8 hp
24.8 hp
24.8 hp
21.6 hp
21.6 hp
21.6 hp
24.8 hp
24.8 hp
24.8 hp

Product Features

Engine

You can rely on the RTV-X's powerful 24.8HP diesel engines to keep you moving forward. Kubota-built and trail-proven, these 3-cylinder liquid-cooled diesel engines have a well-earned reputation for dependable performance even in the harshest terrains.

Engine

Specifications

Highlight differences

Download Brochure

Engine

Name	RTV-X General Purpose	RTV-X Premium ATV Tyres	RTV-X Premium HDMP Tyres
Engine Model	Kubota D1105	Kubota D1105	Kubota D1105
Fuel Type	Diesel	Diesel	Diesel
Cylinders	3	3	3
Engine Gross	24.8 hp	24.8 hp	24.8 hp
Displacement	1,123 cc	1,123 cc	1,123 cc
Fuel Tank Capacity	30 l	30 l	30 l
Rated Speed	3,000 rpm	3,000 rpm	3,000 rpm

Drive Train

Name	RTV-X General Purpose	RTV-X Premium ATV Tyres	RTV-X Premium HDMP Tyres
Transmission	Variable Hydro Transmission	Variable Hydro Transmission	Variable Hydro Transmission
Drive Method	Selectable 4WD	Selectable 4WD	Selectable 4WD
Brakes	Wet Disc	Wet Disc	Wet Disc
Differential Front	Limited-slip differential	Limited-slip differential	Limited-slip differential
Differential Rear	Foot operated differential lock	Foot operated differential lock	Foot operated differential lock
Gear Selection	Hi-Lo Range, forward, neutral, reverse,	Hi-Lo Range, forward, neutral, reverse,	Hi-Lo Range, forward, neutral, reverse,
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering	Hydrostatic Power Steering

Suspension

Name	RTV-X General Purpose	RTV-X Premium ATV Tyres	RTV-X Premium HDMP Tyres
Front Suspension	Independent, Dual A-arms with adjustable spring preload	Independent, Dual A-arms with adjustable spring preload	Independent, Dual A-arms with adjustable spring preload
Front Suspension Travel	205 mm	205 mm	205 mm
Rear Suspension	Independent with coil over shock	Independent with coil over shock	Independent with coil over shock
Rear Suspension Travel	205 mm	205 mm	205 mm

Occupant Protective System

Name	RTV-X General Purpose	RTV-X Premium ATV Tyres	RTV-X Premium HDMP Tyres
Tubular Overhead Structure	50.8 mm	50.8 mm	50.8 mm
Seat Belts	Lap Sash	Lap Sash	Lap Sash
Certification	SAE J2194 and OSHA 1928 ROPS and ANSI B71.9	SAE J2194 and OSHA 1928 ROPS and ANSI B71.9	SAE J2194 and OSHA 1928 ROPS and ANSI B71.9

Tyre Size

Name	RTV-X General Purpose	RTV-X Premium ATV Tyres	RTV-X Premium HDMP Tyres
Front	25 x 10-12	25 x 10-12	25 x 10-12
Rear	25 x 10-12	25 x 10-12	25 x 10-12

Travelling Speed

Name	RTV-X General Purpose	RTV-X Premium ATV Tyres	RTV-X Premium HDMP Tyres
Maximum High Speed	40 km/h	40 km/h	40 km/h

Dimensions

Name	RTV-X General Purpose	RTV-X Premium ATV Tyres	RTV-X Premium HDMP Tyres
Length	3,050 mm	3,123 mm	3,123 mm
Width	1,605 mm	1,605 mm	1,605 mm
Height	2,020 mm	2,020 mm	2,020 mm
Tread Front	1,240 mm	1,240 mm	1,240 mm
Tread Rear	1,240 mm	1,240 mm	1,240 mm
Wheelbase	2,045 mm	2,045 mm	2,045 mm
Turning Radius	4 m	4 m	4 m
Ground Clearance Front	266 mm	265 mm	265 mm
Ground Clearance Rear	260 mm	260 mm	260 mm
Weight	935 kg	957 kg	957 kg
Towing Capacity	1,000 kg	1,000 kg	1,000 kg
Payload Capacity	685 kg	663 kg	663 kg

Cargo Bed

Name	RTV-X General Purpose	RTV-X Premium ATV Tyres	RTV-X Premium HDMP Tyres
Material	Steel	Steel	Steel
Length	1,030 mm	1,030 mm	1,030 mm
Width	1,465 mm	1,465 mm	1,465 mm
Depth	285 mm	285 mm	285 mm
Bed Height	887 mm	887 mm	887 mm
Volume	0.43 m3	0.43 m3	0.43 m3
Cargo Bed Capacity	500 kg	500 kg	500 kg
Dumping System	Hydraulic	Hydraulic	Hydraulic
