TX Series Forage Wagons

Model Comparison Product Features Specifications

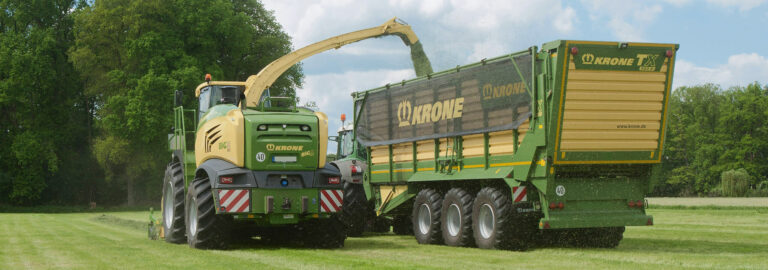

TX Series Forage Wagons previewTX Series Forage Wagons
Krone’s TX Series of Forage Wagons is the perfect business partner, offering huge capacities, safe and swift travel, and fast unloading. It features a sloping steel floor that increases capacity and stability without increasing the size of the wagon, and its low dead weight makes it at home in any field or condition. The TX Series features an extremely powerful roller chain to drive the chain and slat floor, reducing unloading times.

Model Comparison

Finance Offers
Download Brochure
  • 120 hp
  • 120 hp
  • 140 hp
  • 140 hp

Product Features

kubota previewkubota
1
2
3
4

Chain-and-Slat Floor

Equipped with four high tensile chains that are tensioned mechanically ensure swift unloading. The chain-and-slat floor slopes at the front to reduce the length of the passageway increasing efficiency for easy loading. The large double rotor beaters allow for fast and easy unloading on the go. Rear beaters are protected by the main tractor PTO shaft clutch instead of an individual beater clutch, an optional third beater can be fitted.

Chain-and-Slat Floor

Equipped with four high tensile chains that are tensioned mechanically ensure swift unloading. The chain-and-slat floor slopes at the front to reduce the length of the passageway increasing efficiency for easy loading. The large double rotor beaters allow for fast and easy unloading on the go. Rear beaters are protected by the main tractor PTO shaft clutch instead of an individual beater clutch, an optional third beater can be fitted.

Specifications

Download Brochure
Dimensions & Weight
Name TX460 TX460D TX560 TX560D
Volume DIN 46 m3 46 m3 56 m3 56 m3
Length (approx) 10,030 mm 10,030 mm 11,840 mm 11,840 mm
Width Min. (approx) 2,900 mm 2,900 mm 2,900 mm 2,900 mm
Width Max. (approx) 2,960 mm 2,960 mm 2,960 mm 2,960 mm
Height (approx) 4,000 mm 4,000 mm 4,000 mm 4,000 mm
Drawbar Tongue Load 4,000 kg 4,000 kg 4,000 kg 4,000 kg
Gross Weight w/ Tandem Axle 20,000 kg 20,000 kg
Gross Weight w/ Tridem Axle 27,000 kg 27,000 kg
Tyre Size 800 / 45 R 26.5 Trac 800 / 45 R 26.5 Trac 800 / 45 R 26.5 Trac 800 / 45 R 26.5 Trac
Name TX460 TX460D TX560 TX560D
Minimum HP Requirement 120 hp 120 hp 140 hp 140 hp
Discharge Rollers 2 2
PTO Speed 1,000 rmp 1,000 rmp 1,000 rmp 1,000 rmp
Chain and Slat Floor Advancing Speed 34 m/min 17 m/min 34 m/min 17 m/min
Name TX460 TX460D TX560 TX560D
Load Area Height Increase
Sloping Floor
Articulated Drawbar With Hydraulic Control
Drawbar Suspension
Automatic Loading Sensor
Wide Angle PTO Shaft
Name TX460 TX460D TX560 TX560D
Tandem Axle With Hydaulic Brake
Tridem Axle With Hydaulic Brake
Ring Towing Hitch 50mm Loose
Lower Hitch Ball K80
Weight Indicator By Pressure
LED Work Lights
Warning Panels
40km/hr Permission
