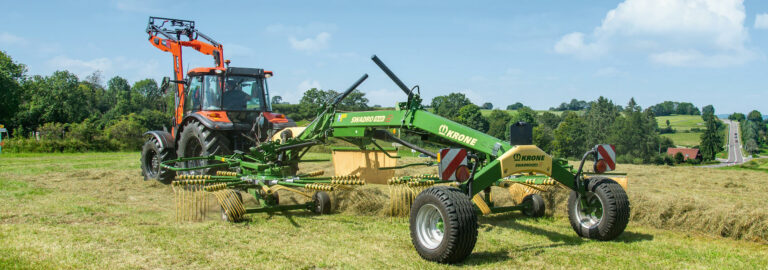

Swadro Twin Rotor Side Delivery Rakes

Model Comparison Product Features Specifications

Featuring up to 13 tines, the Krone Twin Rotor Side Delivery Rakes offer excellent value and the cleanest rakes. The rakes can form single and double swaths as well as two narrow swaths side-by-side. Turn two windrows for better drying, make one large windrow on the side or add a second windrow next to the first one for efficient crop feed for your harvester or baler.

Model Comparison

Finance Offers

Download Brochure

1,600 mm
1,600 mm
1,600 mm
1,400 mm

Product Features

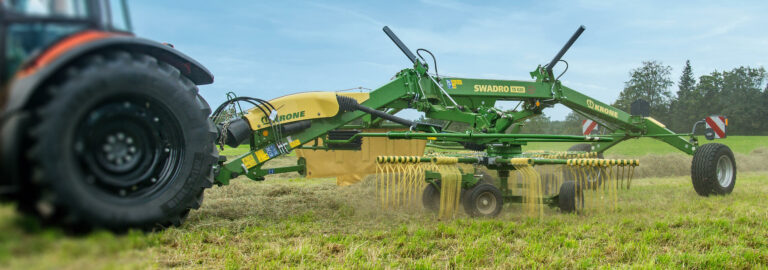

Cardanic Rotor Suspension

Swadro twin-rotor rakes feature a cardanic rotor suspension that works to keep the Swadro rotor level when lifted and lowered. A cardanic joint on the arm prevents the tines from being pressed into the ground or from being suspended in the air, avoiding crop contamination. The rotors pivot to give optimum adaption to undulating ground.

Cardanic Rotor Suspension

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	Swadro TS620T	Swadro TS680T	Swadro TS740T	Swadro 710T
Working Width – Single	6,200 mm	6,800 mm	7,400 mm	6,200 mm
Working Width – Double	6,920 mm	7,600 mm	8,200 mm	6,800 mm
Swath Width Min.	1,100 mm	1,100 mm	1,200 mm	800 mm
Swath Width Max.	1,600 mm	1,600 mm	1,600 mm	1,400 mm
Transport Width	2,760 mm	2,900 mm	2,900 mm	2,990 mm
Transport Height	3,900 mm	3,990 mm	3,990 mm	1,350 mm
Transport Height Arms Folded	3,460 mm	3,550 mm	3,550 mm	N/A mm
Storage Length	8,000 mm	8,300 mm	8,650 mm	8,400 mm
Rotor Diameter	2,960 mm	3,300 mm	3,600 mm	2,960 mm
Weight	1,600 kg	2,200 kg	2,200 kg	1,600 kg
Acreage Output Min	6 m2	6.5 m2	7.5 m2	5.5 m2
Acreage Output Max.	7 m2	8 m2	8.5 m2	6 m2
Tyre Size	11.5 x 80-15.3	15.0 x 55-17	15.0 x 55-17	18 x 8.50-8
Tyre Size on Bogies	16 x 6.50-8	16 x 6.50-8	16 x 6.50-8	18 x 8.50-8

Specifications

Name	Swadro TS620T	Swadro TS680T	Swadro TS740T	Swadro 710T
Attachment	Lwr. Link Arms	Lwr. Link Arms	Lwr. Link Arms	Drawbar
Delivery	Side	Side	Side	Side
No. of Tine Arms Front	10	13	13	13
No. of Tine Arms Rear	13	13	13	13
No. of Double Tines	96	104	104	91
No. of Rotors	2	2	2	2
Minimum PTO	50 hp	50 hp	60 hp	50 hp

Standard Options

Name	Swadro TS620T	Swadro TS680T	Swadro TS740T	Swadro 710T
Lift Tine
Fully Enclosed Gearbox with "DuraMax" Dry Cam Track Design
Maintenance Free Rotor (no grease nipple per tine arm)
Overrun Clutch

Standard Extras

Name	Swadro TS620T	Swadro TS680T	Swadro TS740T	Swadro 710T
Folding Tine Arms
Electric Height Adjustment
Hydraulic Width Adjustment
Pivoting Swath Curtain
Additional Swath Curtain
Spring Suspension
LED Lights and Warning Panel
