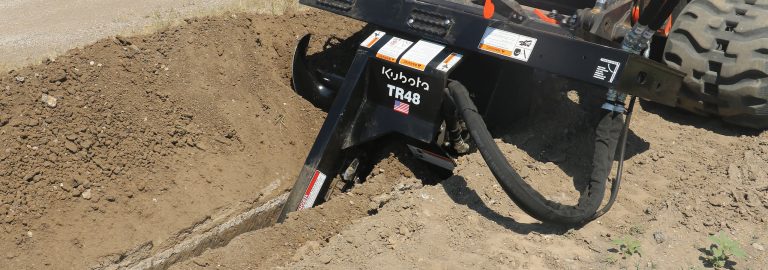

TR48
/ TR60
Trenchers TR Series
Model Comparison
- 2.3 m
- 2.6 m
Product Features
1
2
3
Adjustable grader blades
Dual height grader blades allow the grader to be adjusted to desired amount of cultivation, leveling, & grading.
| Name | TR48 | TR60 |
|---|---|---|
| Weight w/2 Pitch Cup Chain & Hydraulic Side Shift | 560.6 kg | 589.7 kg |
| Overall Length | 2.3 m | 2.6 m |
| Standard Boom Length | 1.66 m | 1.97 m |
| Digging Depth at 60° | 1.22 m | 1.52 m |
| Overall Width | 1.63 m | 1.63 m |
| Trenching Width Available (small) | 15.2 cm | 15.2 cm |
| Trenching Width Available (medium) | 20.3 cm | 20.3 cm |
| Trenching Width Available (large) | 25.4 cm | 25.4 cm |
| Side Shift Travel | 55.9 cm | 55.9 cm |
| Auger diameter | 39.4 cm | 39.4 cm |
| Name | TR48 | TR60 |
|---|---|---|
| Side Shift Options (From Center To Right) | 55.9 cm | 55.9 cm |
| Min. Hydraulic Flow | 57 L/min | 57 L/min |
| Max. Hydraulic Flow | 91 L/min | 91 L/min |
| Max. Chain Speed | 112 m/min | 112 m/min |
| Motor Case Drain | Standard | Standard |
| Motor | Reversible | Reversible |
| Chain Tightener | Grease Cylinder | Grease Cylinder |
| Crumber Shoe | Floating | Floating |
| Spoil Auger | Removable | Removable |
| Patented Depth Indicator | Standard | Standard |
| Roller Guide Bearings With Triple-Lip Seals | Standard | Standard |
| Self-Contained Drive Bearings | Standard | Standard |
| Standard Chain | 2 Pitch Cup | 2 Pitch Cup |
| Frame Material Thickness | 8 mm | 8 mm |
| Frame Reinforcement Bar | 19 mm | 19 mm |
| Trencher Chain Tensile Strength | 22,680 kg | 22,680 kg |
