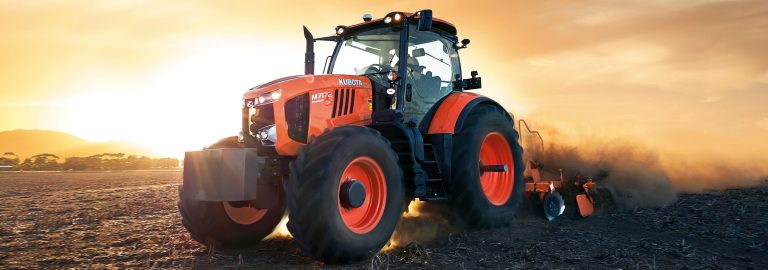

M7-2 Premium
Model Comparison
- 128 hp
- 148 hp
- 168 hp
Product Features
The M7-2 is powered by a next-generation 6.1 litre, four-cylinder diesel engine, incorporating Kubota’s clean-air technology. 30 speed semi-powershift lets you find the right gear for every task. Some jobs can’t be done properly at typical working speeds and that’s why the M7-2 gives you additional 24 forward and 12 reverse creep speeds to let you do those jobs at extremely slow working speeds. The M7-2 Premium model is ready to go to work with a closed centre 110l/min hydraulic supply to four standard electric valves and the option of adding a fifth auxiliary control valve. Out of the box, the M7-2 Premium models can handle any ISO-BUS connector-compatible implements. Simply attach the implement to the universal plug, and information about the implement is instantly displayed on the LCD monitor for adjustment and control. For ISO-BUS compatible implements, you won't need to install a control box, special monitor, extension, power source, or wiring.
Engine
The M7-2 Series includes Kubota's most powerful engine. Offering improved engine performance by lowering the rated engine speed from 2200 rpm to 2100 rpm and lowering the output speed from 2200 rpm to 1900 rpm. Kubota's updated engine results in better fuel economy and reduced engine noise. The M7-2 Series provides constant power and torque used for PTO and towing work.
M7-2 Premium in Kubota Down To Earth
Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their M7-2 Premium.
| Name | M7-132 Premium | M7-152 Premium | M7-172 Premium |
|---|---|---|---|
| Engine Type | Direct Injection, with Intercooler turbocharger, water-cooled 4 cycle diesel engine | Direct Injection, with Intercooler turbocharger, water-cooled 4 cycle diesel engine | Direct Injection, with Intercooler turbocharger, water-cooled 4 cycle diesel engine |
| Engine Model | Kubota V6108 | Kubota V6108 | Kubota V6108 |
| Engine Gross | 128 hp | 148 hp | 168 hp |
| PTO | 102 hp | 122 hp | 142 hp |
| Displacement | 6,124 cc | 6,124 cc | 6,124 cc |
| Fuel tank capacity | 330 l | 330 l | 330 l |
| Rated speed | 1,900 rpm | 2,100 rpm | 1,900 rpm |
| Name | M7-132 Premium | M7-152 Premium | M7-172 Premium |
|---|---|---|---|
| Transmission | Semi-Powershift w/creep, Electro-Hydraulic 6 Gears x 5 Ranges, 30F / 15R, w/creep 54F / 27R | Semi-Powershift w/creep, Electro-Hydraulic 6 Gears x 5 Ranges, 30F / 15R, w/creep 54F / 27R | Semi-Powershift w/creep, Electro-Hydraulic 6 Gears x 5 Ranges, 30F / 15R, w/creep 54F / 27R |
| Drive method | 4WD | 4WD | 4WD |
| Brakes | Wet Disc Brakes with 4WD braking, hydraulic trailer brakes | Wet Disc Brakes with 4WD braking, hydraulic trailer brakes | Wet Disc Brakes with 4WD braking, hydraulic trailer brakes |
| PTO | Live-independent PTO, hydraulical operated wet clutch, w/ PTO brake | Live-independent PTO, hydraulical operated wet clutch, w/ PTO brake | Live-independent PTO, hydraulical operated wet clutch, w/ PTO brake |
| PTO - Rear | 540 / 1000 / 540E / 1000E rpm | 540 / 1000 / 540E / 1000E rpm | 540 / 1000 / 540E / 1000E rpm |
| Name | M7-132 Premium | M7-152 Premium | M7-172 Premium |
|---|---|---|---|
| Hydraulic Pump Output | 110 l/min | 110 l/min | 110 l/min |
| 3-point hitch | Telescopic lower link, Category III | Telescopic lower link, Category III | Telescopic lower link, Category III |
| Rear Linkage Lift Capacity | 9,400 kg | 9,400 kg | 9,400 kg |
| Steering | Hydraulic Power Steering | Hydraulic Power Steering | Hydraulic Power Steering |
| Name | M7-132 Premium | M7-152 Premium | M7-172 Premium |
|---|---|---|---|
| Front | 540/65R28 | 540/65R28 | 540/65R28 |
| Rear | 650/65R38 | 650/65R38 | 650/65R38 |
| Name | M7-132 Premium | M7-152 Premium | M7-172 Premium |
|---|---|---|---|
| Forward | 0.37-50 km/h | 0.37-50 km/h | 0.37-50 km/h |
| Reverse | 0.4-27 km/h | 0.4-27 km/h | 0.4-27 km/h |
| Name | M7-132 Premium | M7-152 Premium | M7-172 Premium |
|---|---|---|---|
| Length | 4,770 mm | 4,770 mm | 4,770 mm |
| Width | 2,825 mm | 2,825 mm | 2,825 mm |
| Height | 3,030 mm | 3,030 mm | 3,030 mm |
| Wheelbase | 2,720 mm | 2,720 mm | 2,720 mm |
| Ground clearance | 370 – 410 mm | 370 – 410 mm | 370 – 410 mm |
| Tread Front | 1537-2237 mm | 1537-2237 mm | 1537-2237 mm |
| Tread Rear | 1582-2086 mm | 1582-2086 mm | 1582-2086 mm |
| Turning radius (w/o brake) | 6.35 m | 6.35 m | 6.35 m |
| Tractor Weight | 6,730 kg | 6,730 kg | 6,730 kg |
