M7-172 Deluxe
/ M7-132 Deluxe
/ M7-152 Deluxe

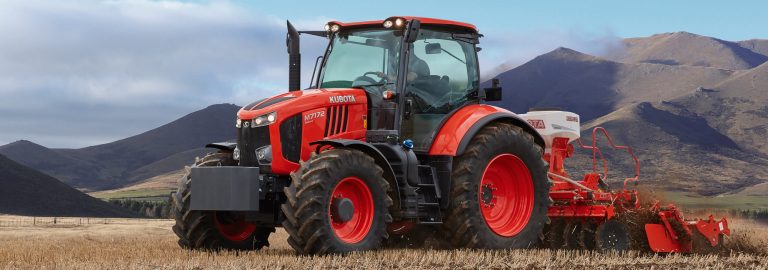

M7-2 Deluxe

M7-2 Deluxe previewM7-2 Deluxe
Kubota has taken the simplicity of operation of our standard grade with select specifications from our premium grade and designed the all-new M7-2 Deluxe. Now producers can have a tractor which is easy to operate with less electronics and has features such as a Closed Centre Load Sensing (CCLS) hydraulic system with 110 l/min flow and to accomplish the most demanding jobs. The M7 series keeps evolving to make your job more productive and enjoyable. Since its launch to the market, the Kubota M7 series has contributed to making farm work more productive and comfortable. It’s hard to beat your best, but that’s what Kubota just did. Carefully listening to feedback from Australia and New Zealand, we have proudly introduced an improved M7 that brings even greater productivity and operability to the field.
  • 168 hp
  • 128 hp
  • 148 hp

Product Features

Hydraulic Flow Control Adjustment (Standard and Deluxe Models only) means you no longer need to leave the cab to adjust the hydraulic flow rate. The flow rate adjustment dial is now conveniently located within easy reach from inside the cab, saving you time—and improving productivity— when setting up the tractor for various types of work. The M7-2's front suspension helps to maintain proper traction while the tractor has 3-point or draft loads while pulling in the field. Suspension stiffness can be adjusted manually or automatically, allowing the operator to control power to the ground in the field or a more comfortable, controlled ride during transport. Advanced loader systems on the M7-2 include a mechanical self-levelling system that significantly increases the lifting height to 4250 mm. while providing an astonishing 2620 kg of front lifting power and the capability of lifting two 5 X 6 round bales. A tight turning radius, excellent mobility, and better forward visibility further enhance operational efficiency. The loader control lever is conveniently located to enable quick, smooth, and intuitive control of front loader operations. The M7-2 pushes the envelope to achieve a new level of power and efficiency in front loader performance.

kubota previewkubota
1
2
3
4

Engine

The M7-2 Series includes Kubota's most powerful engine. Offering improved engine performance by lowering the rated engine speed from 2200 rpm to 2100 rpm and lowering the output speed from 2200 rpm to 1900 rpm. Kubota's updated engine results in better fuel economy and reduced engine noise. The M7-2 Series provides constant power and torque used for PTO and towing work.

Engine

The M7-2 Series includes Kubota's most powerful engine. Offering improved engine performance by lowering the rated engine speed from 2200 rpm to 2100 rpm and lowering the output speed from 2200 rpm to 1900 rpm. Kubota's updated engine results in better fuel economy and reduced engine noise. The M7-2 Series provides constant power and torque used for PTO and towing work.

Specifications

Download Brochure
Engine
Name M7-172 Deluxe M7-132 Deluxe M7-152 Deluxe
Fuel Type Diesel Diesel Diesel
Engine Model Kubota V6108 Kubota V6108 Kubota V6108
Engine Gross 168 hp 128 hp 148 hp
PTO 142 hp 102 hp 122 hp
Displacement 6,124 cc 6,124 cc 6,124 cc
Fuel Tank Capacity 330 l 330 l 330 l
Rated Speed 1,900 rpm 1,900 rpm 1,900 rpm
Name M7-172 Deluxe M7-132 Deluxe M7-152 Deluxe
Transmission Semi-Powershift Semi-Powershift Semi-Powershift
Ranges 5 Range 5 Range 5 Range
Gears 30F 30F 30F
Drive Method 4WD 4WD 4WD
Brakes Wet Disc Wet Disc Wet Disc
PTO 540 1,000 rpm 1,000 rpm 1,000 rpm
Name M7-172 Deluxe M7-132 Deluxe M7-152 Deluxe
Hydraulic Pump Output 110 l/min 110 l/min 110 l/min
3-Point Hitch Category III Category III Category III
Rear Linkage Lift Capacity 9,400 kg 9,400 kg 9,400 kg
Steering Hydraulic Power Steering Hydraulic Power Steering Hydraulic Power Steering
Name M7-172 Deluxe M7-132 Deluxe M7-152 Deluxe
AG
Name M7-172 Deluxe M7-132 Deluxe M7-152 Deluxe
Minimum Low Speed 0.37 km/h 0.37 km/h 0.37 km/h
Maximum High Speed 50 km/h 50 km/h 50 km/h
Name M7-172 Deluxe M7-132 Deluxe M7-152 Deluxe
Length 4,770 mm 4,770 mm 4,770 mm
Width 2,500 mm 2,500 mm 2,500 mm
Height 3,010 mm 3,010 mm 3,010 mm
Wheelbase 2,720 mm 2,720 mm 2,720 mm
Ground Clearance 410 mm 410 mm 410 mm
Turning Radius 6.35 m 6.35 m 6.35 m
Tractor Weight 6,730 kg 6,730 kg 6,730 kg
