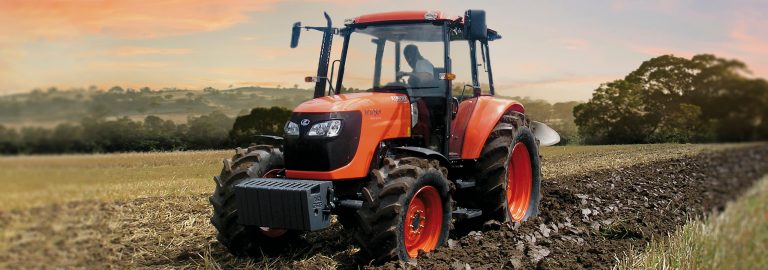

M108 tractor
Product Features
Kubota's M108DC is a dependable mid-sized utility tractor with the advanced features you need to take on the most challenging farming jobs. Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more power, fuel efficiency and durability. Fully synchronised main and hydraulic shuttle transmission with optional creep speeds for specialty applications. The Hydraulic Independent PTO helps you increase productivity. The M108DC comes with a standard 540/540E rpm Hydraulic Independent PTO and optional 540/1000 rpm. The Category II 3-point hitches provide fast and simple attachment of rear-mounted implements. Clutchless hydraulic shuttle shift makes it possible to shift smoothly and easily. The M108DC's hydraulic pumps are located on the side case instead of on the engine which shortens the oil flow path to increase oil flow efficiency. The bevel-gear front axle provides better all-around manoeuvrability, especially for jobs in tight spaces and improved ground clearance.
Engine
The V3800DI-T engine powers the M108DC tractor, equipped with Kubota’s revolutionary center-direct injection system (E-CDIS) . The E-CDIS engines offer a unique combination of more power, durability and better fuel efficiency, so you’ll be able to get the job done quicker and more efficiently while minding your budget. These engines also boast lower noise levels, which equates to less stress and fatigue after long work days. This hearty diesel engine employs a reliable 4-valve, center-direct injection system to achieve greater towing power. Combine this with the V3800DI-T’s turbo charger and you have all the power you’ll ever need, especially in the low rpm range, to perform heavy-duty tasks and during operations requiring sure-footed traction.
M108 tractor in Kubota Down To Earth
Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their M108 tractor.
| Name | M108DC |
|---|---|
| Type | Direct injection, liquid-cooled |
| Cylinders | 4 |
| Engine Model | Kubota V3800 |
| Engine Gross | 105 hp |
| PTO | 96 hp |
| Displacement | 3,769 cc |
| Fuel Tank Capacity | 175 l |
| Rated Speed | 2,600 rpm |
| Name | M108DC |
|---|---|
| Transmission | Synchronized 4 Gears - 2 Ranges & electrohydraulic swing shift splitter - 16F/16R - optional with creep 24F/24R |
| Drive Method | 4WD |
| Brakes | Hydraulic wet discs |
| PTO | Hydraulic independent PTO with PTO brake, wet discs |
| PTO - Rear | 540 / 1000 rpm |
| Name | M108DC |
|---|---|
| Hydraulic Pump Output | 65 l/min |
| 3-Point Hitch | Category II |
| Rear Linkage Lift Capacity | 3,900 kg |
| Steering | Hydraulic power steering |
| Name | M108DC |
|---|---|
| Front - Ag & Vineyard | 340/85R24 / 320/85R24 / 320/85R20 / 320/85R24 |
| Rear - Ag & Vineyard | 480/70R34 / 420/85R34 / 380/85R30 / 340/85R38 |
| Name | M108DC |
|---|---|
| Forward | 0.38 - 37.26 km/h |
| Reverse | 0.38 - 37.58 km/h |
| Name | M108DC |
|---|---|
| Length | 4,070 mm |
| Width | 2,010 mm |
| Height | 2,680 mm |
| Wheelbase | 2,435 mm |
| Ground Clearance | 435 mm |
| Tread Front | 1390-1690 mm |
| Tread Rear | 1730-2035 mm |
| Turning Radius | 4.7 m |
| Tractor Weight | 3,510 kg |
