Model Comparison
- 22 hp
- 25.5 hp
- 26 hp
- 31 hp
- 31 hp
- 31 hp
Product Features
1
2
3
4
Engine
22HP/25.5HP liquid-cooled diesel engines, with Kubota’s E-TVCS (three-vortex combustion system), offers tremendous power, high torque, cleaner emissions, and low vibration.

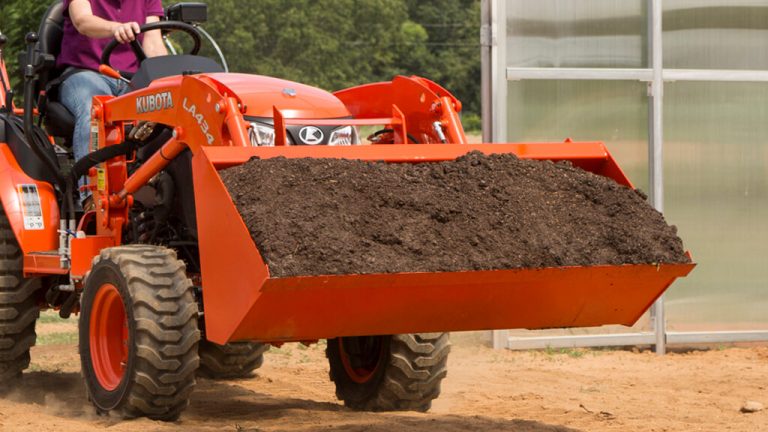

Front Loader
View Attachment

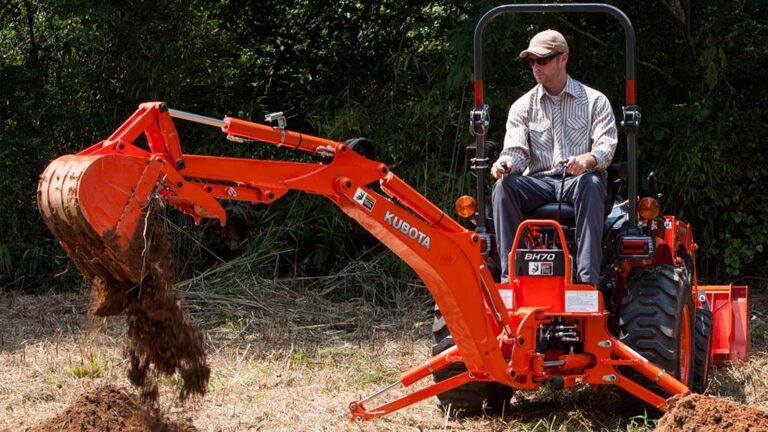

Backhoe
View Attachment

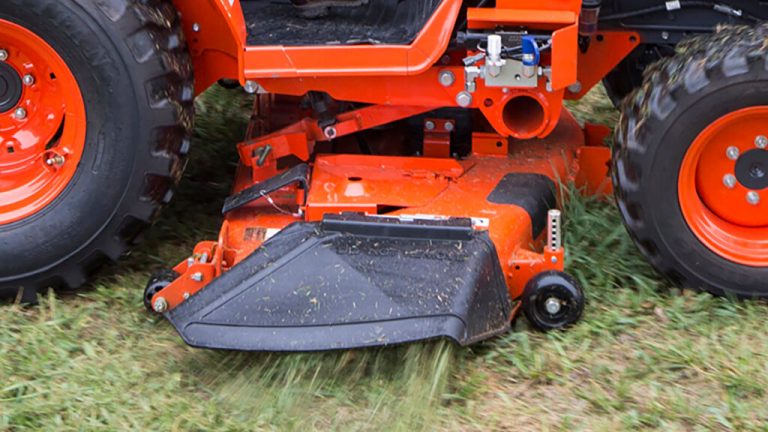

Mid-mount Mower
View Attachment
| Name | B2301HD | B2601HD |
|---|---|---|
| Fuel Type | Diesel | Diesel |
| Cylinders | 3 | 3 |
| Engine Model | Kubota D1005 | Kubota D1005 |
| Engine Gross | 22 hp | 25.5 hp |
| PTO | 17.5 hp | 19.5 hp |
| Displacement | 1,001 cc | 1,123 cc |
| Fuel Tank Capacity | 23 l | 23 l |
| Rated Speed | 2,800 rpm | 2,800 rpm |
| Name | B2301HD | B2601HD |
|---|---|---|
| Transmission | HST | HST |
| Ranges | 3 Range | 3 Range |
| Drive Method | 4WD | 4WD |
| Brakes | Wet Disc | Wet Disc |
| PTO 540 | 2,768 rpm | 2,768 rpm |
| PTO 2500 | 2,753 rpm | 2,753 rpm |
| Name | B2301HD | B2601HD |
|---|---|---|
| Hydraulic Pump Output | 31.4 l/min | 31.4 l/min |
| 3-Point Hitch | Category I | Category I |
| Rear Linkage Lift Capacity | 640 kg | 640 kg |
| Steering | Hydraulic Power Steering | Hydraulic Power Steering |
| Name | B2301HD | B2601HD |
|---|---|---|
| AG | ||
| Industrial | ||
| Turf |
| Name | B2301HD | B2601HD |
|---|---|---|
| Minimum Low Speed | 0 km/h | 0 km/h |
| Maximum High Speed | 19.1 km/h | 20.4 km/h |
| Name | B2301HD | B2601HD |
|---|---|---|
| Length | 2,380 mm | 2,410 mm |
| Width | 1,150 mm | 1,245 mm |
| Height | 2,130 mm | 2,160 mm |
| Wheelbase | 1,560 mm | 1,560 mm |
| Ground Clearance | 305 mm | 325 mm |
| Turning Radius | 2.1 m | 2.1 m |
| Tractor Weight | 710 kg | 740 kg |
Implement Solutions
Designed to take your productivity to the next level, Kubota’s hard-working B2301 and B2601 deliver class-leading results. Both are compatible with a range of implements and attachments, so you’re always equipped to take on any task, no matter how tough. From farming to property maintenance, you’ll enjoy exceptional power, versatility and comfort.
