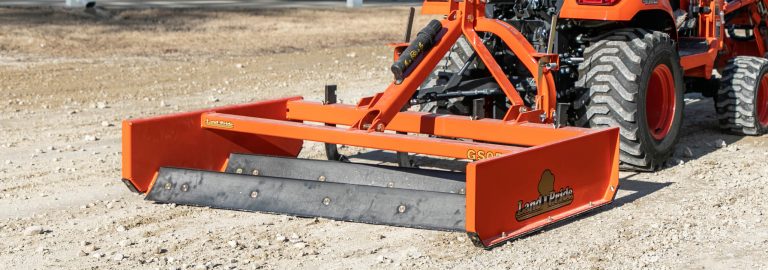

Grading Scraper GS05 Series

Model Comparison Product Features Specifications

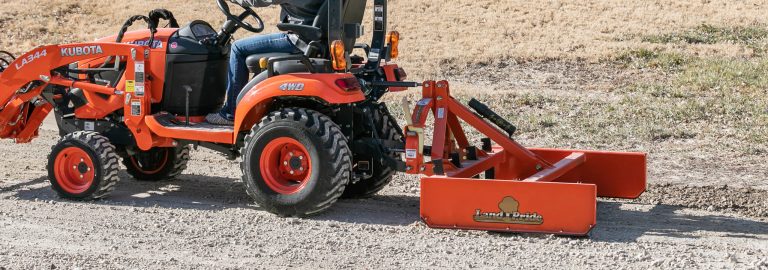

Land Pride GS0548 & GS0560 Grading Scrapers have uses and applications in landscaping, hobby farms, and small estates and are a low cost alternative for road grading applications. They do not require the additional horsepower or tending of tractor 3-point lift controls that a box scraper normally requires. Simply setting a properly adjusted GS05 Series Grading Scraper on the ground and driving forward enables the operator to grade off high spots and fill in ruts and low spots on unimproved roads and lanes with little or no manipulation of the tractors 3-point hitch controls. Unlike a rear blade, they require no adjustment of blade angling or offset positions.

Model Comparison

Finance Offers

Download Brochure

122 cm
152 cm

Product Features

QUICK-HITCH COMPATIBLE

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

QUICK-HITCH COMPATIBLE

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

Specifications

Highlight differences

Download Brochure

Specifications

Name	GS0548	GS0560
Min. Horsepower	18 hp	18 hp
Max. Horsepower	33 hp	33 hp
Hitch - Cat I
Working Width	122 cm	152 cm
Side Panel Thickness	4.7 mm	4.7 mm
Skid Shoe Thickness	6 mm	6 mm
Number of Shank Positions	3	3
Cutting Edge Width	152 mm	152 mm
Cutting Edge Thickness	10 mm	10 mm
Cutting Edge Adjustment	Fixed	Fixed
Weight	141 kg	159 kg
