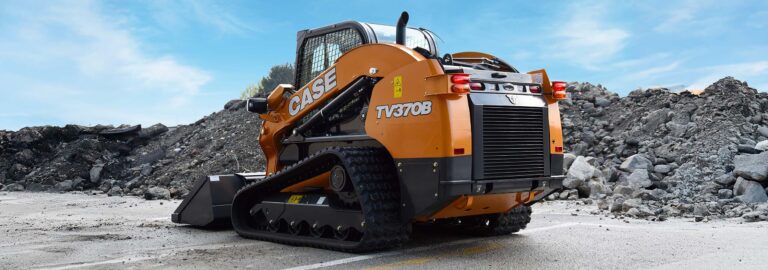

Case Track Loader TV370B

Model Comparison Product Features Specifications
Case Track Loader TV370B previewCase Track Loader TV370B
The TV370B is ideal for contractors looking for large-frame CTL strength and capacity in an extremely efficient machine. At 74 hp (55 kW), it delivers rated operating capacity (1,600 kg at 50 % tipping load) and reach that allows it to load, lift and carry with the big boys – all powered by a maintenance-free Tier 4 Final emissions solution. The TV370 is extremely versatile and compatible with hundreds of attachments for even greater productivity.

Model Comparison

Finance Offers
Download Brochure
  • 55 kW (73.8 hp)
  • 55 kW (73.8 hp)
  • 67 kW (89.8 hp)
  • 55 kW (73.8 hp)
  • 67 kW (89.8 hp)
  • 85 kW (114.0 hp)

Product Features

kubota previewkubota
1
2
3
4

Visibility and Comfort

CASE CTLs feature industry-leading visibility with a new backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. CASE CTLs feature one of the industry’s widest cabs and new control handles that provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.

Visibility and Comfort

CASE CTLs feature industry-leading visibility with a new backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. CASE CTLs feature one of the industry’s widest cabs and new control handles that provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.

Specifications

Download Brochure
Specifications
Name TV370B
Lift Configuration Vertical
Engine FPT F5B FL413 D*C001
Gross Horsepower 55 kW (73.8 hp)
Net Horsepower 51 kW (68.4 hp)
Peak Torque 314 Nm
Displacement 3.4 L
Emissions Certification* Solutions Tier 4 Final Certified (CEGR, DOC)
Rated Operating Capacity (ROC) 35% 1,175 kg
Rated Operating Capacity (ROC) 50% 1,678 kg
Tipping Load 3,357 kg
Bucket Breakout Force 39 kN
Standard Auxiliary Hydraulics 91.5 L/min
High-Flow Auxiliary Hydraulics 142.5 L/min
Operating Weight 4,536 kg
Name TV370B
Height to Bucket Hinge Pin 3.34 m
Dump Height with Foundry/ Excavating Bucket 2.67 m
Height to Top of ROPS 2.04 m
Overall Length with Foundry/ Excavating Bucket 3.6 m
Track Width 450 mm
