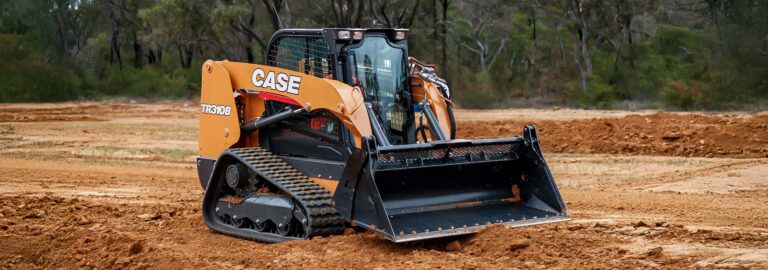

Case Track Loader TR310B

Model Comparison Product Features Specifications
Case Track Loader TR310B previewCase Track Loader TR310B
The TR310B sets the standard for strength and stability in a medium-frame CTL, with wider tracks and powerful lift cylinders that provide a greater rated operating capacity (1,400 kg at 50 % tipping load) without sacrificing a compact footprint, low ground pressure or the machine’s maintenance-free Tier 4 Final emissions solution.

Model Comparison

Finance Offers
Download Brochure
  • 55 kW (73.8 hp)
  • 55 kW (73.8 hp)
  • 67 kW (89.8 hp)
  • 55 kW (73.8 hp)
  • 67 kW (89.8 hp)
  • 85 kW (114.0 hp)

Product Features

kubota previewkubota
1
2
3
4

Visibility and Comfort

CASE CTLs feature industry-leading visibility with a new backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. CASE CTLs feature one of the industry’s widest cabs and new control handles that provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.

Visibility and Comfort

CASE CTLs feature industry-leading visibility with a new backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. CASE CTLs feature one of the industry’s widest cabs and new control handles that provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.

Specifications

Download Brochure
Specifications
Name TR310B
Lift Configuration Radial
Engine FPT F5H FL463A*G001
Gross Horsepower 55 kW (73.8 hp)
Net Horsepower 51 kW (68.4 hp)
Peak Torque 314 Nm
Displacement 3.4 L
Emissions Certification* Solutions Tier 4 Final Certified (CEGR, DOC)
Rated Operating Capacity (ROC) 35% 984 kg
Rated Operating Capacity (ROC) 50% 1,406 kg
Tipping Load 2,812 kg
Bucket Breakout Force 38.6 kN
Standard Auxiliary Hydraulics 91.5 L/min
High-Flow Auxiliary Hydraulics 122.6 L/min
Operating Weight 4,028 kg
Name TR310B
Height to Bucket Hinge Pin 3.18 m
Dump Height with Foundry/ Excavating Bucket 2.56 m
Height to Top of ROPS 2 m
Overall Length with Foundry/ Excavating Bucket 3.28 m
Track Width 400 mm
