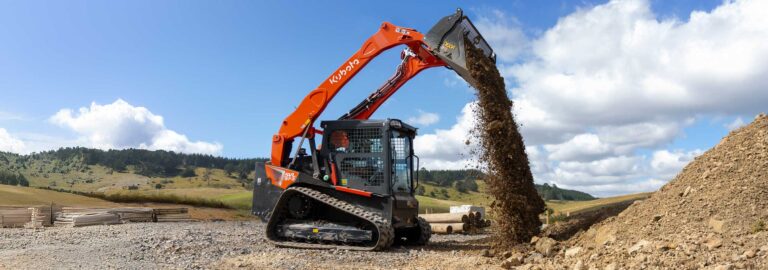

Track Loader SVL97-3

Product Features Specifications
Track Loader SVL97-3 previewTrack Loader SVL97-3

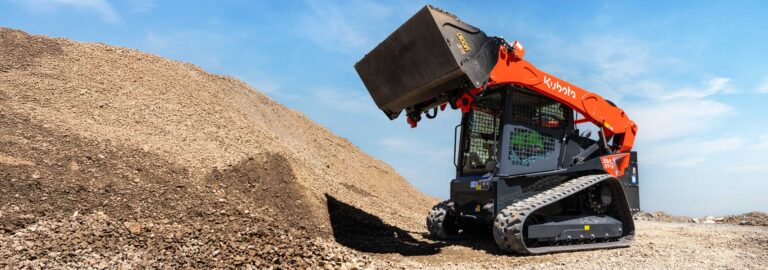

The newly introduced SVL97-3 takes the place of the established SVL97-2 and is Kubota's latest track loader, offering a comprehensive selection of innovative features that boost performance and comfort. With a robust 96.4HP Kubota engine, the Kubota SVL97-3 offers a bucket breakout force of 3468KG and a lifting capacity of 2394KG, along with delivering unparalleled comfort and performance to handle any job effortlessly. Delivering remarkable versatility, the hi-flow hydraulics provide 156.0 l/min, allowing for the use of the largest attachments, from tree mulchers to road profilers. The newly introduced features include a one-piece cabin, advanced hydraulic system, a 7-inch LCD touchscreen with keyless ignition and an integrated reverse camera, an updated engine layout, and additional options including Heated Air Suspension seat and KSR (Kubota Shockless Ride). The standard and high-flow models continue to allow the use of a wide range of options from our SSV and SVL performance-matched attachments lineup.

Product Features

kubota previewkubota
1
2
3
4
5
6

One-Piece Sealed Pressurised Cabin

The SVL97-3 continues to provide a fully comfortable experience for its operator that features a fully sealed, integrated pressurised cabin that blocks the ingress of dirt, dust, water, and debris, creating a clean operational environment for the user.

This model is now fitted with a Heated Air Seat, LED work lights and improved HVAC performance with outstanding air flow for cooling and Heating regardless of the outside temperature.

One-Piece Sealed Pressurised Cabin

The SVL97-3 continues to provide a fully comfortable experience for its operator that features a fully sealed, integrated pressurised cabin that blocks the ingress of dirt, dust, water, and debris, creating a clean operational environment for the user.

This model is now fitted with a Heated Air Seat, LED work lights and improved HVAC performance with outstanding air flow for cooling and Heating regardless of the outside temperature.

Specifications

Download Brochure
Engine
Name SVL97-3
Engine Type Water Cooled
Fuel Type Diesel
Cylinders 4
Engine Model Kubota V3800-TIEF4
Engine Net 85.2 HP
Engine Gross 96.4 HP
Displacement 3,769 cc
Rated Speed 2,500 rpm
Name SVL97-3
Track Width - Standard 450 mm
Ground Pressure Cab - Standard Track 4.7 psi
Track Roller (Per Side) 5
Track Ground Contact Length 1,667 mm
Traction Force 5,976 kg
Min. Ground Clearance 278 mm
Name SVL97-3
Aux Hydraulic Flow - High 156 l/min
Loader Hydraulic Pressure (Per cm2) 249.8 kgf
Name SVL97-3
ROC - 35% Tipping Load 1,569 kg
Tipping Load 4,483 kg
Breakout Force - Bucket 3,468 kg
Breakout Force - Lift Arm 2,394 kg
Lift Arm Path Vertical
Name SVL97-3
Low 8.9 km/h
High 13.5 km/h
Name SVL97-3
Length 3,141 mm
Width - Standard Track 1,962 mm
Height 2,112 mm
Operating Weight - Cab 5,411 kg
Name SVL97-3
Fuel Reservoir 115.7 l
Hydraulic System 70 l
Hydraulic Tank 40.2 l
Name SVL97-3
Cab
Open Cab
Front Sliding Window
