Tine Cultivator CU3001PF Series

Model Comparison Product Features Specifications

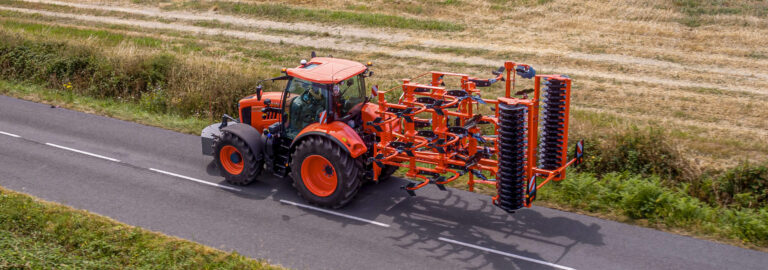

Tine Cultivator CU3001PF Series previewTine Cultivator CU3001PF Series
On today’s farms, cultivation demands have changed. Tight time slots have to be balanced with higher machine performance. Restricted crop rotations call for technology that meets all the requirements of modern cultivation. Kubota’s CU3001PF Series of folding tine cultivators offer powerful and efficient performance at high forward speeds and consistent working depth. The CU3001PF Series has a well-organised tine arrangement over 3 rows with 285 mm spacing that is designed to ensure smooth flow, optimal mixing and intensive seedbed cultivation even with long residues.

Model Comparison

Finance Offers
Download Brochure
  • 3 m
  • 3.5 m
  • 3 m
  • 3.5 m
  • 4 m
  • 4.5 m
  • 5 m

Product Features

The Kubota CU3001PF Series have a maximum working depth of 350 mm. High 750 mm inter-row clearance and even bigger 870 mm underbeam clearance ensure blockage-free operation in any conditions for maize, sunflower, wheat, oil seed, rape, stubble or big intermediate crops. The CU3001PF also comes with a wide choice of shares, rear rollers and levelling gear.

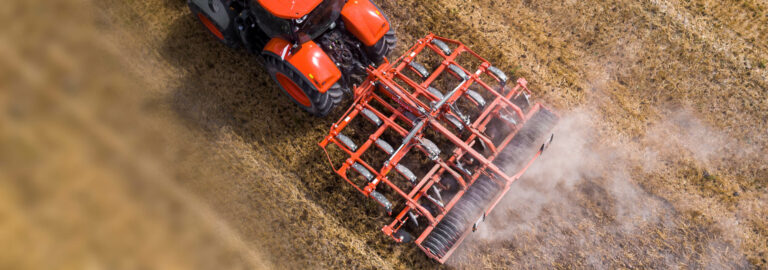

kubota previewkubota
1
2
3
4
5
6

Strong Frame

The CU3001PF Series frame is a result of a long study made by FEM (Finite Element Method) calculation to optimise the steel over the working width and find a strong structure suitable for tractors up to 350 hp. The CU3001PF range has been designed to combine with even the heaviest rollers. All the most aggressive work scenarios (deep turn work, headland turns, transport) have been tested to ensure the cultivator frames are strong and reliable, as you’d expect from Kubota.

Strong Frame

The CU3001PF Series frame is a result of a long study made by FEM (Finite Element Method) calculation to optimise the steel over the working width and find a strong structure suitable for tractors up to 350 hp. The CU3001PF range has been designed to combine with even the heaviest rollers. All the most aggressive work scenarios (deep turn work, headland turns, transport) have been tested to ensure the cultivator frames are strong and reliable, as you’d expect from Kubota.

Specifications

Download Brochure
Dimensions & Weight
Name CU3401PF CU3451PF CU3501PF
Working Width 4 m 4.5 m 5 m
Transport Width 2.85 m 2.85 m 2.85 m
Weight w/Cage Roller 3,180 kg 3,330 kg 3,480 kg
Weight w/ActiPack Roller 3,700 kg 3,920 kg 4,140 kg
Name CU3401PF CU3451PF CU3501PF
Rigid or Folding Frame Folding Folding Folding
No. of Tines 14 16 18
Max. Working Depth 350 mm 350 mm 350 mm
Distance Between Rows 750 mm 750 mm 750 mm
Rows of Tines 3 3 3
Tine Arm TriFlex 700 w/Auto-Reset TriFlex 700 w/Auto-Reset TriFlex 700 w/Auto-Reset
Tine Holder Fixing to Toolbar Bolted w/Caster Clamp Bolted w/Caster Clamp Bolted w/Caster Clamp
Tine Protection Non-Stop Leaf Spring (Auto Reset) Non-Stop Leaf Spring (Auto Reset) Non-Stop Leaf Spring (Auto Reset)
Tine Arm Size (Heat Treated for Strength) 70 x 40 mm 70 x 40 mm 70 x 40 mm
Tine Auto-Reset Breakout Force 700 kg 700 kg 700 kg
Tine Point (Front Tungsten Plates) 70mm Tiger 2 Point 70mm Tiger 2 Point 70mm Tiger 2 Point
Underbeam Clearance 870 mm 870 mm 870 mm
Average Tine Spacing 285 mm 285 mm 285 mm
Frame Box Section Size 100 x 100 x 8 mm 100 x 100 x 8 mm 100 x 100 x 8 mm
Central Frame Size 200 x 200 x 10 mm 200 x 200 x 10 mm 200 x 200 x 10 mm
Linkage Cat III Cat III Cat III
Depth Control (Cage Roller) 550 mm dia. 550 mm dia. 550 mm dia.
Depth Control (ActiPack Roller) 560 mm dia. 560 mm dia. 560 mm dia.
Seed Box Fitment Possible
Name CU3401PF CU3451PF CU3501PF
Hollow Levelling Discs w/Mechanical Height Adjustment
70mm Tiger 2 Carbide Points
320mm Wing shares - Bolted
Twisted Tine Deflectors
Rear Lighting Kit
Parking Stands
