Tine Cultivator CU3001 Series

Model Comparison Product Features Specifications

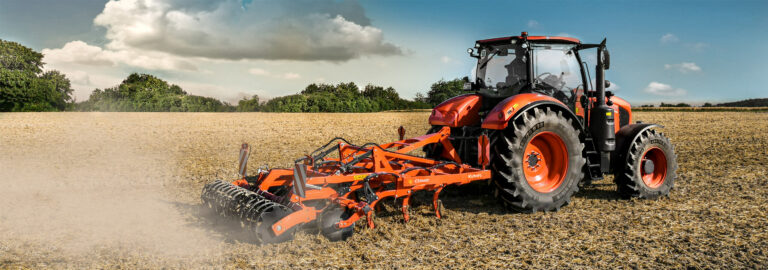

Tine Cultivator CU3001 Series previewTine Cultivator CU3001 Series
On modern farms, cultivation demands have changed. Tight time slots have to be balanced with higher machine performance. Restricted crop rotations call for technology that meets all the requirements of complex cultivation. Kubota’s CU3001 Series Tine Cultivators offer powerful and efficient performance at high forward speeds and consistent working depth. The CU3001 Series has a well-organised tine arrangement over 3 rows with 285 mm spacing that is designed to ensure smooth flow, optimal mixing and intensive seedbed cultivation even with long residues.

Model Comparison

Finance Offers
Download Brochure
  • 3 m
  • 3.5 m
  • 3 m
  • 3.5 m
  • 4 m
  • 4.5 m
  • 5 m

Product Features

The Kubota CU3001 Series Tine Cultivators have a maximum working depth of 300 mm (CU3301) or 350 mm (CU3351), respectively. High 750 mm inter-row clearance and even bigger 870 mm underbeam clearance ensure blockage-free operation in any conditions for maize, sunflower, wheat, oil seed, rape, stubble or big intermediate crops. The CU3001 also comes with a wide choice of shares, rear rollers and levelling gear.

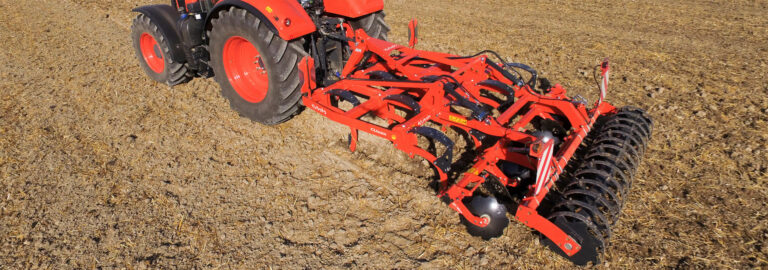

kubota previewkubota
1
2
3
4
5

Strong Frame

The CU3001 Series frame is a result of a long study made by FEM (Finite Element Method) calculation to optimise the steel over the working width and find a strong structure suitable for tractors up to 350 hp. The CU3001 range has been designed to combine with even the heaviest rollers. All the most aggressive work scenarios (deep turn work, headland turns, transport) have been tested to ensure the cultivator frames are strong and reliable, as you’d expect from Kubota.

Strong Frame

The CU3001 Series frame is a result of a long study made by FEM (Finite Element Method) calculation to optimise the steel over the working width and find a strong structure suitable for tractors up to 350 hp. The CU3001 range has been designed to combine with even the heaviest rollers. All the most aggressive work scenarios (deep turn work, headland turns, transport) have been tested to ensure the cultivator frames are strong and reliable, as you’d expect from Kubota.

Specifications

Download Brochure
Dimensions & Weight
Name CU3301 CU3351
Working Width 3 m 3.5 m
Transport Width 3 m 3.5 m
Weight w/Cage Roller 1,930 kg 2,170 kg
Weight w/ActiPack Roller 2,080 kg 2,500 kg
Name CU3301 CU3351
Rigid or Folding Frame Rigid mm Rigid mm
No. of Tines 10 12
Max. Working Depth 300 mm 300 mm
Distance Between Rows 750 mm 750 mm
Rows of Tines 3 3
Tine Arm TriFlex 700 w/Auto-Reset TriFlex 700 w/Auto-Reset
Tine Holder Fixing to Toolbar Bolted w/Caster Clamp Bolted w/Caster Clamp
Tine Protection Non-Stop Leaf Spring (Auto Reset) Non-Stop Leaf Spring (Auto Reset)
Tine Arm Size (Heat Treated for Strength) 70 x 40 mm 70 x 40 mm
Tine Auto-Reset Breakout Force 700 kg 700 kg
Tine Point (Front Tungsten Plates) 70mm Tiger 2 Point 70mm Tiger 2 Point
Underbeam Clearance 870 mm 870 mm
Average Tine Spacing 285 mm 285 mm
Frame Box Section Size 100 x 100 x 8 mm 100 x 100 x 8 mm
Central Frame Size N/A mm N/A mm
Linkage Cat II & Cat III Cat II & Cat III
Depth Control (Cage Roller) 550 mm dia. 550 mm dia.
Depth Control (ActiPack Roller) 560 mm dia. 560 mm dia.
Seed Box Fitment Possible
Name CU3301 CU3351
65mm Bolt-on Reversible Point
Straight Tine Deflectors
