Brands
02 9826 600002 9826 6000
AHSGroup
SRT62
/ SRT76

SRT Skid Rotary Tiller

Model Comparison Product Features Specifications

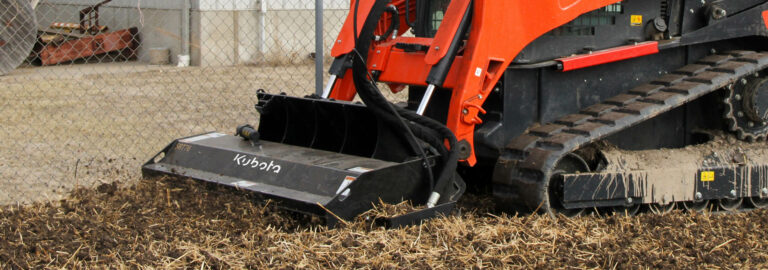

SRT Skid Rotary Tiller previewSRT Skid Rotary Tiller
Soil preparation for seedbeds or garden plots is easy with Land Pride's SRT Series forward and reverse rotation Rotary Tillers. The SRT series is perfect for use with Kubota SVL and SSV loaders. With formed and reinforced rear deflectors, these machines are well suited for use in landscaping, nurseries, gardens, and light commercial applications. The SRT series features curl and depth indicators to achieve precise and adjustable tilling depth.

Model Comparison

Finance Offers
Download Brochure
  • 9
  • 11

Product Features

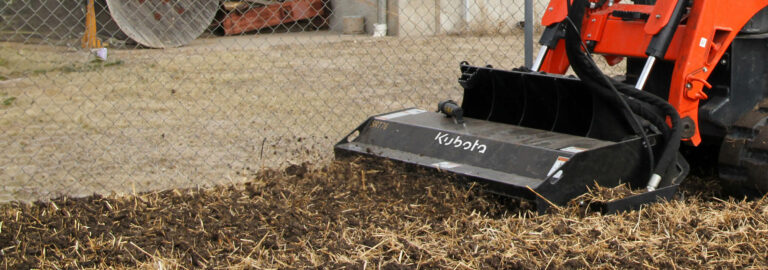

kubota previewkubota
1
2
3

Adjustable Scarifier Shanks

SRT Rotary Tillers are built tough with hardened steel scarifier shanks capable of cutting through hard soil.

Adjustable Scarifier Shanks

SRT Rotary Tillers are built tough with hardened steel scarifier shanks capable of cutting through hard soil.

Specifications

Download Brochure
Specifications
Name SRT62 SRT76
No. Rotor Flanges 9 11
No. Tines per Flange 4 4
Rotor Swing Diameter 46.5 cm 46.5 cm
No. Shanks 5 6
Side Shift Capabilities (to the right) 15.2 cm 15.2 cm
Depth Indicator
Min. Low Flow Motor Hydraulic Req. 53 Lpm
Max. Low Flow Motor Hydraulic Req. 87 Lpm
Min. High Flow Motor Hydraulic Req. 87 Lpm
Max. High Flow Motor Hydraulic Req. 159 Lpm
Min. Low Flow Motor Hydraulic Pressure 19.3 mPa
Max. Low Flow Motor Hydraulic Pressure 31 mPa
Min. High Flow Motor Hydraulic Pressure 13.8 mPa 15.9 mPa
Max. High Flow Motor Hydraulic Pressure 31 mPa 31 mPa
Min. Low Flow Motor RPM 143 RPM
Max. Low Flow Motor RPM 245 RPM
Min. High Flow Motor RPM 133 RPM 133 RPM
Max. High Flow Motor RPM 244 RPM 244 RPM
Motor Case Drain Standard Standard
Tine Construction Bi-Directional Forged Hardened "C" Shaped Bi-Directional Forged Hardened "C" Shaped
Direction of Travel Bi-Directional Bi-Directional
Skid Shoes Replaceable Replaceable
Shank Retainers Spring Loaded Raining Clips 2 Spring Loaded Raining Clips 2
Shank Construction 19 x 64 x 406mm Adjustable Hardened Steel 19 x 64 x 406mm Adjustable Hardened Steel
Deck Plate Construction 6 mm 6 mm
End Plate Construction 10 mm 10 mm
Name SRT62 SRT76
Tilling Width 157 cm 193 cm
Overall Width 189 cm 225 cm
Tilling Width 157 cm 193 cm
Min. Tilling Depth 2 cm 2 cm
Max. Tilling Depth 14.2 cm 14.2 cm
Weight 356 kg 399 kg
Name SRT62 SRT76
Hitch Universal Quick Attach Hitch Universal Quick Attach Hitch
