SQ1120B
/ SQ1150B

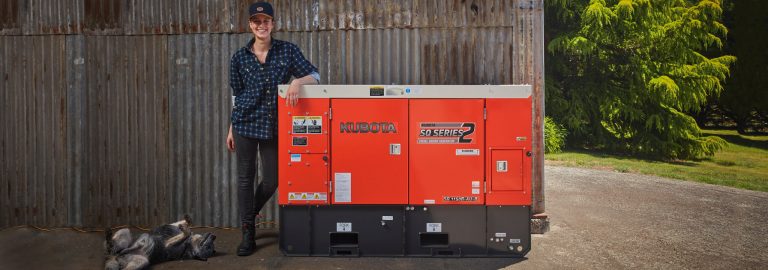

SQ1120/SQ1150 Generator

Model Comparison Product Features Specifications
SQ1120/SQ1150 Generator previewSQ1120/SQ1150 Generator
The Kubota SQ1120 is a premium compact single-phase, four pole, diesel generator with a capacity of 11.2kVA at 1500RPM at 240 volts, running a current (A) of 46.7 amps, while the SQ1150 diesel generator has a capacity of 16kVA at 1500RPM and is available to work at 240 volts and runs a current (A) of 62.5 amps. Both are fully sound attenuated for a super quiet operation, have high fuel efficiency and low emissions, and are therefore a premium choice for a wide range of applications, including agriculture, tradespeople, hire, emergency services and the mining and construction industries. It’s ready to plug in and get to work fast straight off the bat, and you can use it as your primary power source by plugging it straight into your meter box. Fully bunded for your peace of mind in case of engine failure or fuel leaks, it is factory fitted with digital controller and 2-wire auto start model for solar applications. Power when you need it.

Model Comparison

Finance Offers
Download Brochure
  • 24 hours
  • 24.4 hours

Product Features

kubota previewkubota
1
2
3
4
5
6
7
8

Engine

The Kubota SQ-1120B-AU-B is powered by Kubota’s D1703 fuel efficient, water cooled diesel engine, while the Kubota SQ-1150B-AU-B diesel generator is powered by our V2203 diesel engine, built to withstand Australia’s toughest conditions. Kubota diesel engines incorporate a TVCS combustion system which improve air/fuel mixture, resulting in cleaner emissions. All models are available with automatic shutdown of the engine if abnormal conditions are detected.

Engine

The Kubota SQ-1120B-AU-B is powered by Kubota’s D1703 fuel efficient, water cooled diesel engine, while the Kubota SQ-1150B-AU-B diesel generator is powered by our V2203 diesel engine, built to withstand Australia’s toughest conditions. Kubota diesel engines incorporate a TVCS combustion system which improve air/fuel mixture, resulting in cleaner emissions. All models are available with automatic shutdown of the engine if abnormal conditions are detected.

Specifications

Download Brochure
General
Name SQ1120B SQ1150B
Fuel Type Diesel Diesel
Phase Single Single
Fuel Tank Capacity 72 l 100 l
Operating Hours @Full Load 24 hours 24.4 hours
Starting System Electric Electric
Weight 780 kg 915 kg
Sound Levels @7m 61 dBA 63 dBA
Dimensions 1725 x 795 x 1095 mm 1725 x 795 x 1180 mm
Name SQ1120B SQ1150B
Engine Model D1703-EBG V2203-EBG
Engine Type Vetical Water Cooled Vetical Water Cooled
Displacement 1,647 cc 2,197 cc
No of Cylinders 3 4
Bore & Stroke 87 x 92.4 mm 87 x 92.4 mm
Rated Output 13.6 kW (18.2 hp) 18.4 kW (24.7 hp)
RPM 1,500 rpm 1,500 rpm
Name SQ1120B SQ1150B
Type Revolving Field Revolving Field
Max Output 11.8 kVA 16 kVA
Rated Output 11.2 kVA 15 kVA
Voltage 240 240
Frequently 50 Hz 50 Hz
Current 46.7 Amps 62.5 Amps
Power Factor 1 1
Poles 4 4
Voltage Regulation AVR AVR
