Case Skid Steer Loader SR160B

Model Comparison Product Features Specifications

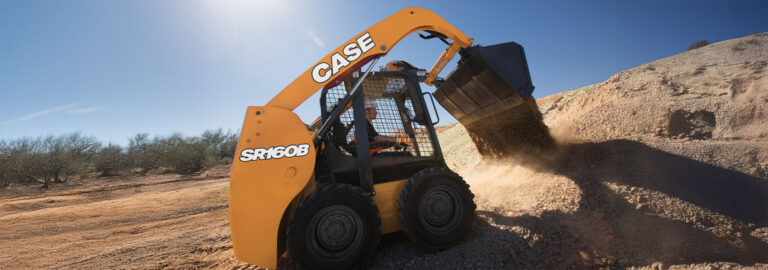

Case Skid Steer Loader SR160B previewCase Skid Steer Loader SR160B
The SR160B is easy to own, operate and maintain. It’s light (2,560 kg), short (just over 1.8 m tall at the top of the ROPS), narrow (at 1.5 m width) and compact for easy transportation and access to tight jobsites — all while retaining trademark CASE stability and low total cost of ownership.

Model Comparison

Finance Offers
Download Brochure
  • 36.4 kW (48.8 hp)
  • 44.7 kW (59.9 hp)
  • 60 kW (80.5 hp)
  • 44.7 kW (59.9 hp)
  • 44.7 kW (59.9 hp)
  • 67 kW (89.8 hp)
  • 55 kW (73.8 hp)
  • 55 kW (73.8 hp)
  • 55 kW (73.8 hp)
  • 55 kW (73.8 hp)
  • 67 kW (89.8 hp)

Product Features

kubota previewkubota
1
2
3
4

Industry-Leading Visibility

With an emphasis on safety and precision, CASE’s B Series skid steers feature exceptional all-around visibility. Operators benefit from wide sightlines to the bucket, low thresholds, reinforced skylights, and large rear windows. A cab-wide mirror and standard 360° lighting ensure clear views in every direction, improving awareness and control in both daylight and low-light conditions.

Industry-Leading Visibility

With an emphasis on safety and precision, CASE’s B Series skid steers feature exceptional all-around visibility. Operators benefit from wide sightlines to the bucket, low thresholds, reinforced skylights, and large rear windows. A cab-wide mirror and standard 360° lighting ensure clear views in every direction, improving awareness and control in both daylight and low-light conditions.

Specifications

Download Brochure
Dimensions
Name SR160B
Overall Height w/ LPE Bkt 3,860 mm
Bucket Hinge Pin 2,850 mm
Top Of ROPS 1,920 mm
Bottom of Bkt Fully Raised 2,680 mm
Length w/o Attachment 2,440 mm
Length w/ LPE Bkt 3,300 mm
Dump Angle 40.2 °
Dump Height w/ LPE Bkt 2,150 mm
Dump Reach w/ LPE Bkt 580 mm
Max Rollback at Ground 26.1 °
Max Rollback Fully Raised 95.2 °
Wheelbase 940 mm
Ground Clearance 180 mm
Angle of Departure 22 °
Rear Axle to Bumper 860 mm
Overall Width (Spec Tyre) 1,520 mm
Name SR160B
Rated Operating Capacity 50% 726 kg
Tipping Load 1,455 kg
Lift Cylinder Breakout Force 14.7 kN
Bucket Cylinder Breakout Force 23.4 kN
Name SR160B
Engine Brand PERKINS
Engine Model ISM N844LT-F-45SL
Displacement 2.2 L
Horsepower Gross 60 kW (80.5 hp)
Peak torque 188 N·m
Name SR160B
Low Range 11.9 Km/h
Name SR160B
Pump flow 100% 55.5 Lpm
Displacement 35 cc
Name SR160B
Operating Weight 2,560 kg
Shipping Weight 2,370 kg
Name SR160B
Fuel Tank 60.5 L
