Swadro 2000

Swadro Six Rotor Centre Delivery Rakes

Product Features Specifications

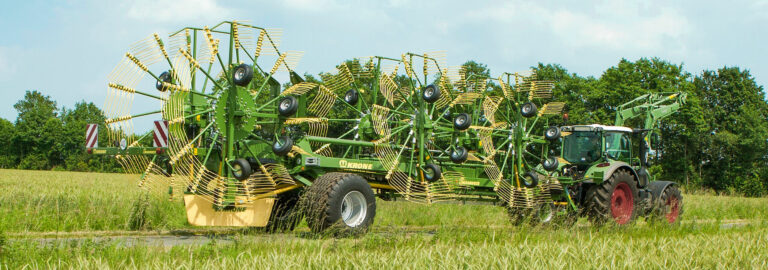

Swadro Six Rotor Centre Delivery Rakes previewSwadro Six Rotor Centre Delivery Rakes

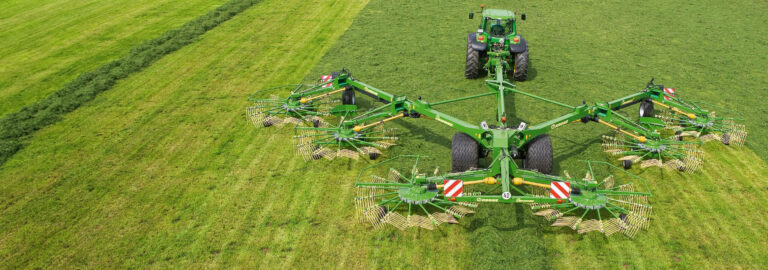

The Swadro 2000 six-rotor rake is the largest rotary rake in the world with a flexible working width of up to 19.6 metres, reducing swath length by up to 30% and producing swaths that match the capacities of the follower harvesters. The Swadro S single-rotor rakes stand out for ease of operation, offering adjustable work height and swath width, and unbeatable transportation and storage for its size.

Product Features

kubota previewkubota
1
2
3
4

Cardanic Rotor Suspension

Swadro twin-rotor rakes feature a cardanic rotor suspension that works to keep the Swadro rotor level when lifted and lowered. A cardanic joint on the arm prevents the tines from being pressed into the ground or from being suspended in the air, avoiding crop contamination. The rotors pivot to give optimum adaption to undulating ground.

Cardanic Rotor Suspension

Swadro twin-rotor rakes feature a cardanic rotor suspension that works to keep the Swadro rotor level when lifted and lowered. A cardanic joint on the arm prevents the tines from being pressed into the ground or from being suspended in the air, avoiding crop contamination. The rotors pivot to give optimum adaption to undulating ground.

Specifications

Dimensions & Weight
Name Swadro 2000
Working Width Min. 10,000 mm
Working Width Max. 19,000 mm
Swath Width Min. 1,800 mm
Swath Width Max. 3,000 mm
Transport Width 2,990 mm
Transport Height 3,990 mm
Transport Height Arms Folded N/A mm
Storage Length 13,200 mm
Rotor Diameter Min. 3,300 mm
Rotor Diameter Max. 3,600 mm
Weight 9,400 kg
Acreage Output Min. 20 m2
Acreage Output Max. 20 m2
Tyre Size 800 / 45 R26.5
Tyre Size on Bogies Under the Rotor 16 x 6.50-8
Name Swadro 2000
Attachment Lwr. Link Arms
Delivery Centre
No. of Tine Arms 4 x 13 | 2 x 15
No. of Rotors 6
No. of Double Tines 328 (4 x front, 4 x centre, 5 x rear rotors)
Height Adjustment Electric
Hydraulic Width Adjustment
Minimum PTO 130 hp
Name Swadro 2000
Lift Tine
Fully Enclosed Gearbox with "DuraMax" Dry Cam Track Design
Maintenance Free Rotor (no grease nipple per tine arm)
Rotor Suspensions Front Mechanical
Rotor Suspension Rear Mechanical
Overrun Clutch
Load Sensing Line Included
Isobus Cable Option
Name Swadro 2000
Single Axle with Hydraulic Brake
Swath Curtain
Pivoting Swath Curtain
CCI1200 IsoBus Comfort Monitor
Electronic Independent Rotor Lift-out Included
Rotor Switching System Included
LED Work Lights
LED Lights and Warning Panel
Retrofit STW Power Harness for Non Isobus Tractor Option
Section Control Activation (machine only) On Request
