SGC Series Claw Grapples

Model Comparison Product Features Specifications

Agriculture

Implements

Claw Grapples

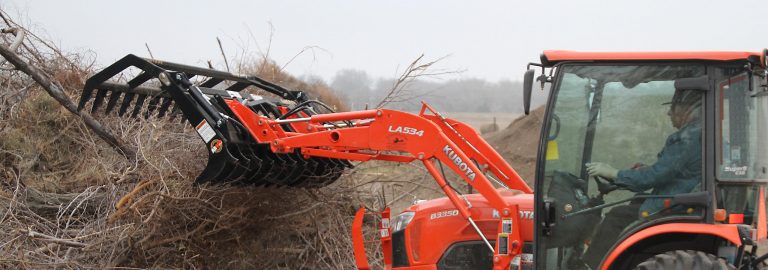

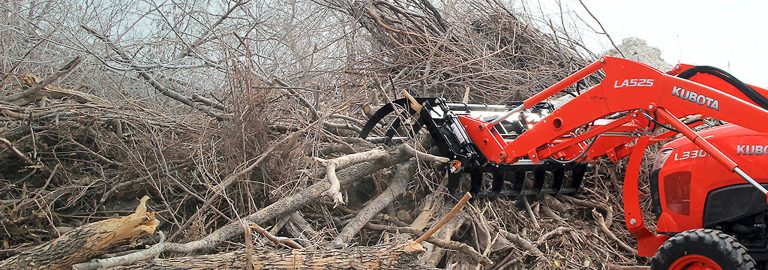

Easily grasp, lift, and move a variety of materials greatly reducing the time spent on property maintenance with Land Pride's Claw Grapples. The tines are manufactured from high-tensile AR400 steel making it light-weight, yet extremely durable. For additional strength, the frame is made of stout 2" x 3" rectangular tubing. The hinge points feature 3/4" greasable pins. The 9-3/8" tooth spacing and a 32" jaw opening make this attachment a versatile tool to help you get work done. Land Pride also has six 3rd Function Valve Kits for a variety of Kubota tractor/loader combinations. Add versatility to your tractor by completing the package with a 3rd Function Kit.

Model Comparison

Finance Offers

Download Brochure

213 mm
229 mm
286 mm
286 mm

Product Features

PIN-ON HITCH

Kubota BX Quick Hitch System or Pin Direct to Loader Arms

PIN-ON HITCH

Kubota BX Quick Hitch System or Pin Direct to Loader Arms

Specifications

Highlight differences

Download Brochure

Dimensions

Name	SGC0548	SGC0660	SGC1060	SGC1072
Width	122 cm	157.5 cm	157.5 cm	190.5 cm
Weight	100 kg	112 kg	161 kg	188 kg
Closed Height	673 mm	762 mm	838 mm	838 mm

Specifications

Name	SGC0548	SGC0660	SGC1060	SGC1072
Hitch	BX Pin On	Universal Quick-Attach	Universal Quick-Attach	Universal Quick-Attach
Bottom Teeth	6	7	10	12
Top Teeth	5	6	9	11
Tooth Spacing	238 mm	238 mm	152 mm	152 mm
Inner Teeth Thickness	6 mm	8 mm	9.5 mm	9.5 mm
Outer Teeth Thickness	6 mm	8 mm	12.7 mm	12.7 mm
Tooth Working Length	213 mm	229 mm	286 mm	286 mm
Jaw Opening	762 mm	813 mm	1,003 mm	1,003 mm
Tine Material	AR400	AR400	AR400	AR400
Max. Horsepower	30 hp	40 hp	55 hp	55 hp
