Seeding Combination SC Series

Model Comparison Product Features Specifications

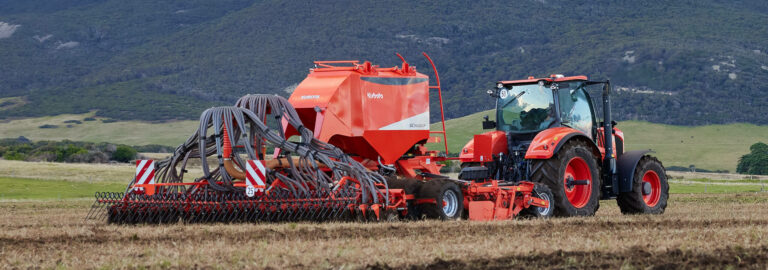

Seeding Combination SC Series previewSeeding Combination SC Series
Kubota’s SC Series Seeding Combination Seed Drills find the perfect balance between high-tech performance and easy operation. They work hard, yet are easy to handle, transport and maintain. The fully ISOBUS compatible SC series puts precision farming techniques like one-pass sowing and automatic headland control at your fingertips, to help boost efficiency, and save time and money.

Model Comparison

Finance Offers
Download Brochure
  • 3 m
  • 4 m
  • 4 m
  • 6 m
  • 6 m

Product Features

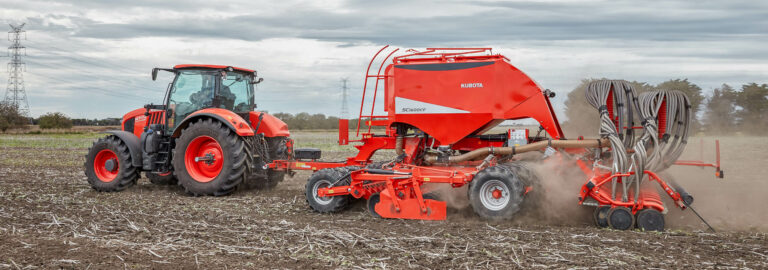

The SC1001 series is a trailed seed drill combination available in working widths of 4 m and 6 m to carry out seedbed preparation, levelling, reconsolidation, seeding and pressing in one pass. This seed drill combination has been designed with the lowest weight possible and requires relatively low pulling force. The SC series offers high performance and operator convenience, to achieve consistently good results. The focus in design has been especially given to high speed operation (10-18km/h) whilst ensuring a perfect seed placement.

kubota previewkubota
1
2
3
4
5
6

Electronic Dosing

The ELDOS metering device is electrically driven and fully ISOBUS compatible. Special sensors ensure perfect functionality, which is safely and efficiently monitored from the cab. Calibration tests are simple, with on-screen guidance and settings – there’s no need to adjust any gears. The SC Series comes complete with a full set of rotors, for high-rate cereals through to grass, rape, lower seeding rates, and maize and sunflower seeds.

Electronic Dosing

The ELDOS metering device is electrically driven and fully ISOBUS compatible. Special sensors ensure perfect functionality, which is safely and efficiently monitored from the cab. Calibration tests are simple, with on-screen guidance and settings – there’s no need to adjust any gears. The SC Series comes complete with a full set of rotors, for high-rate cereals through to grass, rape, lower seeding rates, and maize and sunflower seeds.

Specifications

Download Brochure
Dimensions & Weight
Name SC1301C SC1401F SC1401CF SC1601F SC1601CF
Working Width 3 m 4 m 4 m 6 m 6 m
Transport Width 3 m 3 m 2.99 m 2.99 m 2.99 m
Weight w/Front Packer 4,800 kg 5,600 kg 5,800 kg 8,120 kg 8,400 kg
Name SC1301C SC1401F SC1401CF SC1601F SC1601CF
Hitching 2 Point Hitch – Pivoting Headstock 2 Point Hitch – Pivoting Headstock 2 Point Hitch – Pivoting Headstock 2 Point Hitch – Pivoting Headstock 2 Point Hitch – Pivoting Headstock
Min. Power Required 120 hp 140 hp 140 hp 180 hp 180 hp
Name SC1301C SC1401F SC1401CF SC1601F SC1601CF
Frame Rigid Folding Folding Folding Folding
Hopper Capacity 3,000 L 3,000 L 3,000 L 4,350 L 4,200 L
Hopper Configuration Grain / Fert Grain Only Grain / Fert Grain Only Grain / Fert
Hopper Split 60:40 (50:50 possible for 3000ltr hopper)
Pressurised Hopper
Metering Device ELDOS (Electronic Dosing) ELDOS (Electronic Dosing) ELDOS (Electronic Dosing) ELDOS (Electronic Dosing) ELDOS (Electronic Dosing)
No. of Metering Devices 2 1 2 1 2
Sowing Range Per Metering Device 1-400 kg/ha 1-400 kg/ha 1-400 kg/ha 1-400 kg/ha 1-400 kg/ha
Micro Metering Possible
Calibration Button at Metering Device
No. of Sowing Coulters 24 32 32 48 48
Double Disc Sowing Coulter Size 410 mm 410 mm 410 mm 410 mm 410 mm
Sowing Row Spacing 5 inch 5 inch 5 inch 5 inch 5 inch
Max. Row Unit Down Pressure - Adjustable from the Cabin 100 kg 100 kg 100 kg 100 kg 100 kg
Rear Press Wheel w/Scraper Size 380 x 50 mm 380 x 50 mm 380 x 50 mm 380 x 50 mm 380 x 50 mm
No. of Cultivation Discs 24 32 32 48 48
Cultivation Disc Size 460 x 5 mm 460 x 5 mm 460 x 5 mm 460 x 5 mm 460 x 5 mm
Fertiliser Placement as Standard (other options available) Double Shoot in Sowing Row Double Shoot in Sowing Row Double Shoot in Sowing Row
Sowing Depth and Cultivation Depth Adjustment Electrically in cab from ISOBUS control Electrically in cab from ISOBUS control Electrically in cab from ISOBUS control Electrically in cab from ISOBUS control Electrically in cab from ISOBUS control
Offset Rear Tyre Packer (900mm)
Speed Input Signal by on Board RADAR
Onboard Headland Management System
Fully ISOBUS Controlled
ISOBUS Terminal - TELLUS PRO or TELLUS GO+ Option Option Option Option Option
Roll-Over Hopper Tarp
Individual Fully Sealed Steel Hopper Lids
Hydraulic Fan Drive
Hydraulic Trailer Brakes
Name SC1301C SC1401F SC1401CF SC1601F SC1601CF
Complete Front Packer Option
5 Different Seeding Rotors (2 x complete sets)
Rear Camera Fitted
LED Internal Hopper Lights and LED External Working Lights
Filling Auger
Extended Drawbar for Duals (500mm)
Rear Finger Harrow - 12mm Straight
