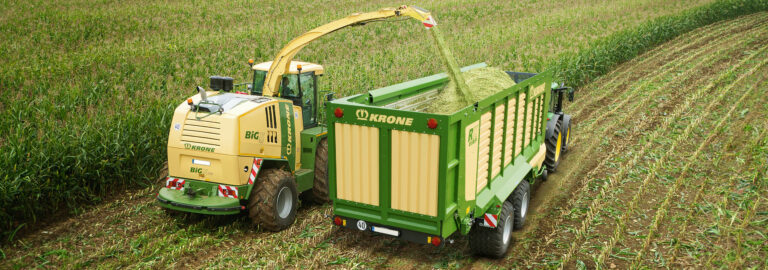

RX Series Forage Wagons

Model Comparison Product Features Specifications

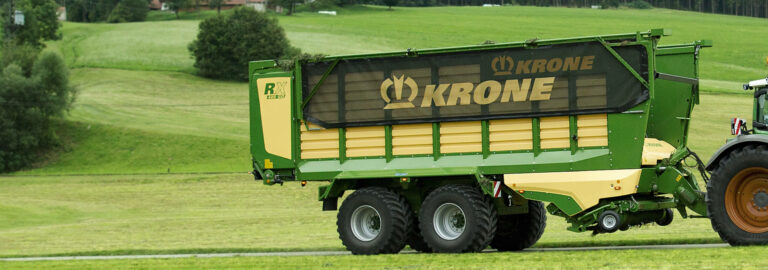

The RX series is a master in the field with the most advanced features including a 2m wide EasyFlow camless pickup, hydraulic pivoting front wall, and SpeedSharp knife sharpening system, taking only 4 minutes to sharpen and reposition the knife bed within the machine. The AX Series serves two purposes – as self-loading and controlled-unloading forage wagons, as well as silage trailers in the transport fleet serving the forage harvester. Krone’s RX forage wagon offers a choice between the MX and ZX range with a volume size of 40m3.

Model Comparison

Finance Offers

Download Brochure

40 m3
40 m3

Product Features

EasyFlow Pickup

The MX Series features a 1.8 metre EasyFlow pick-up which easily gathers wide swaths of material and feeds it to the rotor cutter in a consistent flow. Jockey wheels provide optimal ground clearance.

EasyFlow Pickup

The MX Series features a 1.8 metre EasyFlow pick-up which easily gathers wide swaths of material and feeds it to the rotor cutter in a consistent flow. Jockey wheels provide optimal ground clearance.

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	RX400GL	RX400GD
Volume DIN	40 m3	40 m3
Knives / Theoretical Chopping Length Min.	37 mm	37 mm
Knives / Theoretical Chopping Length Max.	46 mm	46 mm
Length (approx)	10,006 mm	10,006 mm
Width (approx)	2,980 mm	2,980 mm
Height (approx)	3,950 mm	3,950 mm
Platform Height (approx)	1,570 mm	1,570 mm
Track Width (approx)	2,050 mm	2,050 mm
Empty Weight (approx)	10,200 kg	10,900 kg
Drawbar Tongue Load	4,000 kg	4,000 kg
Gross Weight w/ Tandem Axle	20,000 kg	20,000 kg
Pick-Up Work Width	2,015 mm	2,015 mm
Articulated Drawbar Clearance	750 mm	750 mm
Crop Feed Width	1,785 mm	1,785 mm
Tyre Size	800 / 45 R 26.5 Trac	800 / 45 R 26.5 Trac

Specifications

Name	RX400GL	RX400GD
Minimum HP Requirement	170 hp	170 hp
Cross Conveyor Behind Machine		Indent Only
Discharge Rollers		3
PTO Shaft 6 spline 1 3/8
Wheel	10 Stud Rim	10 Stud Rim

Standard Options

Name	RX400GL	RX400GD
Automatic Loading – Powerload
EasyFlow Camless Pick-Up
880mm Rotor Cutter Diameter / Drive	Gearbox	Gearbox
Pivoting Headboard
Rapid Auto Floor System and Hydraulic Moving Floor
Heavy Duty Spilt Chain and Slat Floor
Wide Angle PTO Shaft
Automatic Loading Sensor
Articulated Drawbar Module and Drawbar Suspension
Strong Parking Jack

Standard Extras

Name	RX400GL	RX400GD
SpeedSharp System
Swing Out Knife Bank w/ 2nd Knife Set
IsoBus	CCI 1200	CC I1200
Retrofit STW Power Harness for Non Isobus Tractor
Bottom Hitch	50mm K80 Ball-head	50mm K80 Ball-head
Additional Rear Guide Wheels
Automatic Drawbar Lift and Lifting Drawbar Sensor
Hydropneumatic Axle Suspension
Tandem Axle w/ Air Brakes
Tandem Axle Hydraulic Brakes Option
LED Work Lights
Warning Panels
40km/hr Permission
Extra Work Lights
