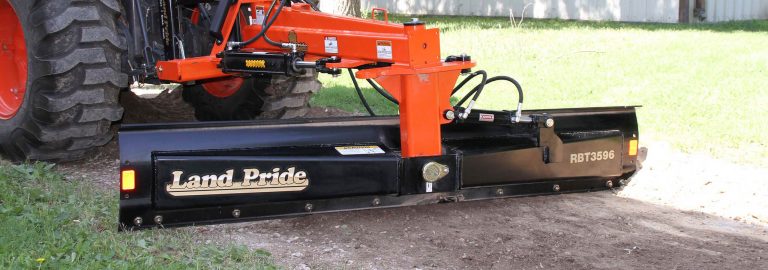

Rear Grader Blade RBT Series

Model Comparison Product Features Specifications

Agriculture

Implements

Rear Grader Blades

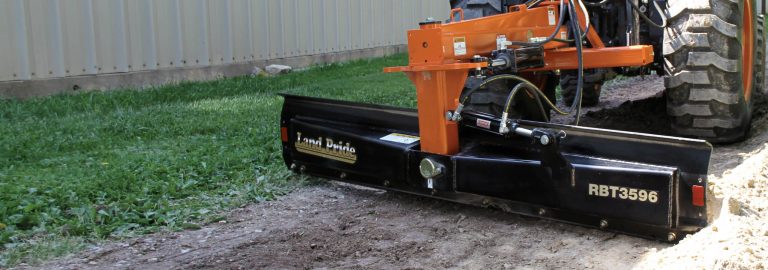

Land Pride's RBT35 & RBT45 Series Hydraulic Rear Blades are an excellent choice for leveling, finish grading, and backfilling applications at large feedlots, outdoor arenas, construction sites, nurseries, and maintenance operations on farms, ranches, or homeowner lanes or roadways. They are excellent for snow removal in the pulling or the push-blade mode. Their hydraulic or manual angle, offset, and tilt capability make them ideal for construction and maintenance of drainage ditches, waterways, and soil contours. They are also very effective in maintaining silage pit operations.

Model Comparison

Finance Offers

Download Brochure

213 cm
244 cm
244 cm
274 cm

Product Features

Fits Quick Hitch

Add in a Land Pride Quick Hitch to quickly and easily attach without leaving the tractor seat.

Fits Quick Hitch

Add in a Land Pride Quick Hitch to quickly and easily attach without leaving the tractor seat.

Specifications

Highlight differences

Download Brochure

Specifications

Name	RBT3584	RBT3596	RBT4596	RBT45108
Max. Horsepower - 2WD	80 hp	80 hp	125 hp	125 hp
Max. Horsepower - 4WD	65 hp	65 hp	125 hp	125 hp
Max. Angle Manual	40°	40°	45°	45°
Max. Angle Hydraulic	50°	50°	45°	45°
Blade Tilt Up	20°	20°	15°	15°
Blade Tilt Down	20°	20°	15°	15°
Tilt Cylinder Bore	51 mm	51 mm	76 mm	76 mm
Max. Offset	76 cm	76 cm	89 cm	89 cm
Offset Cylinder Bore	89 mm	89 mm	102 mm	102 mm

Moldboard

Name	RBT3584	RBT3596	RBT4596	RBT45108
Moldboard Height	432 mm	432 mm	483 mm	483 mm
Moldboard Thickness	8 mm	8 mm	8 mm	8 mm
Cutting Edge Width	152 mm	152 mm	152 mm	152 mm
Cutting Edge Thickness	13 mm	13 mm	13 mm	13 mm

Hitch

Name	RBT3584	RBT3596	RBT4596	RBT45108
Cat. I
Cat. II
Cat. III

Dimensions

Name	RBT3584	RBT3596	RBT4596	RBT45108
Working Width	213 cm	244 cm	244 cm	274 cm
Weight	322 kg	338 kg	513 kg	529 kg
