PP1450V
/ PP1450V-SX

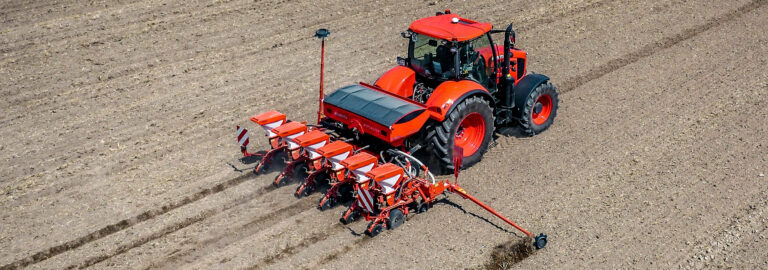

Precision Planter PP1000V Series

Model Comparison Product Features Specifications
Precision Planter PP1000V Series previewPrecision Planter PP1000V Series
Kubota’s PP1000V Series of precision planters are the perfect drill for busy farmers and contractors who need a machine with variable row widths and maximum flexibility. With the PP1000V, the crop row width is configured in no time, for efficient response to changing needs. The PP1000V can be equipped with a 1000 L fertiliser hopper or front hopper solution, and a microgranular applicator is also available.

Model Comparison

Finance Offers
Download Brochure
  • 2.97 m
  • 2.97 m

Product Features

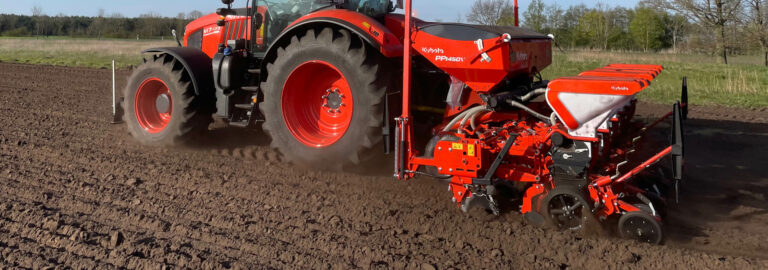

The PP1001V Series has a variable frame width of 3 m to 4.8m and a convenient and safe transport width of just under 3 m. The sturdy headstock is made of round tubes, which saves weight and increases stiffness. The main telescopic frame is a 160 mm square tube, in which tough plastic glide parts guarantee long-term performance. All inner rows are mounted on 8 maintenance-free plastic rollers and are adjustable in different step widths. Both models in the series are electrically driven and compatible with GEOSEED.

kubota previewkubota
1
2
3
4
5

High Speed Sowing

The HD-II sowing row on the PP1450V-HD is a heavy-duty unit with a traditional vacuum system to suck seeds to the seed disc. The air stream is then interrupted to allow the seed to fall to the furrow via gravity, allowing sowing at up to 9 km/h. The SX sowing row on the PP1450V-SX has a pressurised seeding heart blowing seeds to the disc. The seed is then released from the disc and shot down the seed tube at 70 km/h with precise seed placement at up to 18 km/h.

High Speed Sowing

The HD-II sowing row on the PP1450V-HD is a heavy-duty unit with a traditional vacuum system to suck seeds to the seed disc. The air stream is then interrupted to allow the seed to fall to the furrow via gravity, allowing sowing at up to 9 km/h. The SX sowing row on the PP1450V-SX has a pressurised seeding heart blowing seeds to the disc. The seed is then released from the disc and shot down the seed tube at 70 km/h with precise seed placement at up to 18 km/h.

Specifications

Download Brochure
Dimensions & Weight
Name PP1450V PP1450V-SX
Frame Width 3.00 – 4.80 m 3.00 – 4.80 m
Transport Width 2.97 m 2.97 m
Name PP1450V PP1450V-SX
Frame Configuration Variable Width Variable Width
No. of Rows 6 6
Sowing Row HD-II e-Drive II SX e-Drive II
Sowing Unit Drive Electric Electric
Land Wheels / Drive Tyres 2 x Floatation Tyres 26 x 12.00 2 x Floatation Tyres 26 x 12.00
Row Unit Press Wheels 25mm Rubber V-press Wheel 25mm Rubber V-press Wheel
Row Unit Hopper Volume 55 L 60 L
Sowing Depth 5 – 95 mm 5 – 95 mm
Cutting Disc 381 mm dia. 381 mm dia.
Sowing Row Weight 129 kg 129 kg
GEOSEED Possible
ISOBUS Control
ISOBUS Terminal - TELLUS PRO or TELLUS GO+ Option Option
Optical Sensor Reading Seeds (e-Drive only) Misses Only Misses & Doubles
Individual Row Shut-off Via Controlling Terminal
Fan Drive PTO PTO
Fertiliser Kit Option Option
Working Possible w/Front Mounted Hopper ( SH1150 or SH1650C )
Micro Granular Option Option
Linkage Cat II Cat II
Name PP1450V PP1450V-SX
Hydraulic Frame Ballasting Kit
Road Lighting
Clean Air Set
Additional 100kg Spring Load Adjustment on Row Unit
Additional 125kg Hydraulic Load Adjustment on Row Unit
Intermediate Press Wheel w/Stainless Steel
Intermediate Press Wheel w/Soft Catching Wheel
Trash Wheels Kit
Safe & Speed Kit
Fertiliser Filling Auger Option Option
Fertiliser Sowing Coulter Option Option
Scrapers for HD Sowing Unit Depth Wheels
