Precision Planter PP1001 Series

Model Comparison Product Features Specifications

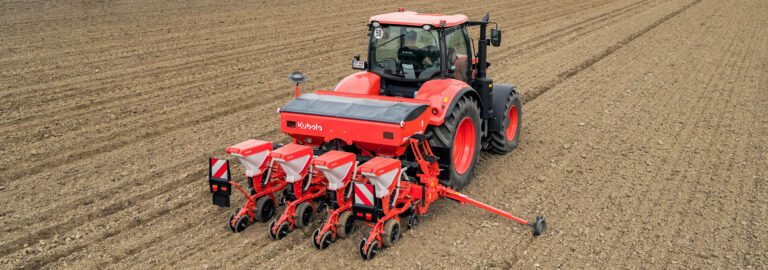

Precision Planter PP1001 Series previewPrecision Planter PP1001 Series
Rigid frame precision planters are a cost-efficient alternative for all kinds of farming applications. Kubota’s PP1001 Series is the perfect precision drill for farmers and contractors who need a versatile, light but strong machine that can handle various crops and row widths. The PP1001 come in small and large frames, and can be combined with optional fertiliser spreaders, front hoppers or microgranular spreaders.

Model Comparison

Finance Offers
Download Brochure
  • 3 m
  • 3.5 m
  • 4 m
  • 4.5 m
  • 5 m
  • 6 m

Product Features

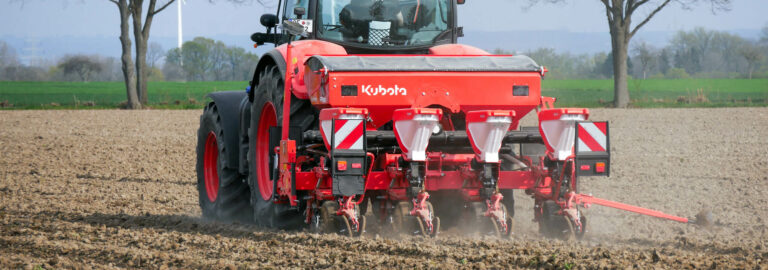

The Kubota PP1001 Series Precision Planters are available in 3 m to 6 m working widths, with 1 to 12 rows from a narrow 300 mm to an efficient 1500 mm. All of Kubota’s rigid PP1001 frames can be equipped with mechanical or electrical drives, and standard, HD-II and SX sowing row options are available. Machines with a wider working width can also be equipped with a lengthwise transport device.

kubota previewkubota
1
2
3
4
5

High Seed Sowing

The SX sowing row has a pressurised seeding heart blowing seeds to the disc. The seed is then released from the disc and shot down the seed tube at 70 km/h with precise seed placement at up to 18 km/h. The HD-II sowing row is a heavy-duty unit with a traditional vacuum system to suck seeds to the seed disc. The air stream is then interrupted to allow the seed to fall to the furrow via gravity, allowing sowing at up to 9 km/h.

High Seed Sowing

The SX sowing row has a pressurised seeding heart blowing seeds to the disc. The seed is then released from the disc and shot down the seed tube at 70 km/h with precise seed placement at up to 18 km/h. The HD-II sowing row is a heavy-duty unit with a traditional vacuum system to suck seeds to the seed disc. The air stream is then interrupted to allow the seed to fall to the furrow via gravity, allowing sowing at up to 9 km/h.

Specifications

Download Brochure
Dimensions & Weight
Name PP1301 PP1351 PP1401 PP1451 PP1501 PP1601
Frame Width 3 m 3.5 m 4 m 4.5 m 5 m 6 m
Transport Width 3 m 3.5 m 4 m 4.5 m 5 m 6 m
Name PP1301 PP1351 PP1401 PP1451 PP1501 PP1601
Frame Configuration Rigid Rigid Rigid Rigid Rigid Rigid
Max No. of Rows Possible 8 8 8 8 8 8
Mechanical Drive
Electric Drive - eDrive (ISOBUS)
Land Wheels / Drive Tyres 7.00 - 12AS (for ridges) 7.00 - 12AS (for ridges) 7.00 - 12AS (for ridges) 7.00 - 12AS (for ridges) Floatation tyres 26x12.00 Floatation tyres 26x12.00
GEOSEED Possible
ISOBUS Control Option Option Option Option Option Option
ISOBUS Terminal - TELLUS PRO or TELLUS GO+ Option Option Option Option Option Option
Opto-Electric Sensor (reads every seed on the disc as it passes) Option Option Option Option Option Option
Individual Row Shut-off Via Controlling Terminal Option Option Option Option Option Option
Fan Drive 1" 3/8, 6 spline, 800rpm PTO Drive 1" 3/8, 6 spline, 800rpm PTO Drive 1" 3/8, 6 spline, 800rpm PTO Drive 1" 3/8, 6 spline, 800rpm PTO Drive 1" 3/8, 6 spline, 800rpm PTO Drive 1" 3/8, 6 spline, 800rpm PTO Drive
Fertiliser Kit Option Option Option Option Option Option
Working Possible w/Front Mounted Hopper ( SH1150 or SH1650C )
Micro Granular Option Option Option Option Option Option
Linkage Cat II Cat II Cat II Cat II Cat II Cat II
Name PP1301 PP1351 PP1401 PP1451 PP1501 PP1601
Hydraulic Frame Ballasting Kit
Road Lighting
Clean Air Set
