Powered Rakes PR16 Series

Model Comparison Product Features Specifications

Agriculture

Implements

Powered Rakes

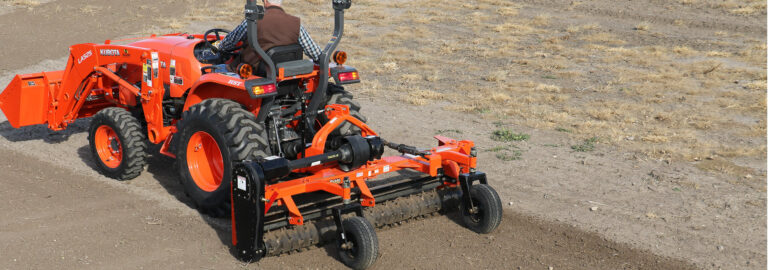

Land Pride’s PR16 Series Powered Rake is a multi-functional seed bed and soil surface preparation tool for landscapers and turf care professionals, capable of grading, leveling, shaping, cultivating, renovating, and pulverizing various types of soil surfaces. They are also capable of raking or windrowing soil, rocks, and construction site debris. The 60" or 72" working widths are a good choice for smaller landscaping and turf renovation jobs, while the 90" model is perfect for larger commercial jobs.

Model Comparison

Finance Offers

Download Brochure

152 cm
183 cm
229 cm

Product Features

Gauge Wheels

Wide gauge wheels adjust vertically to set working depth. Sealant helps seal against punctures.

Gauge Wheels

Wide gauge wheels adjust vertically to set working depth. Sealant helps seal against punctures.

Specifications

Highlight differences

Download Brochure

Specifications

Name	PR1660	PR1672	PR1690
Horsepower	25-60 hp	25-60 hp	35-75 hp
Gearbox	540 rpm	540 rpm	540 rpm
Gearbox oil capacity	0.71 l	0.71 l	0.71 l
Gearbox lubrication type	Add gear lube until it escapes from lower plug hole	Add gear lube until it escapes from lower plug hole	Add gear lube until it escapes from lower plug hole
Primary driveline	Cat. 3 Heavy-Duty	Cat. 3 Heavy-Duty	Cat. 3 Heavy-Duty
Secondary driveline	Cat. 3 with Slip-Clutch	Cat. 3 with Slip-Clutch	Cat. 3 with Slip-Clutch
Roller end bearings	Ball Bearings	Ball Bearings	Ball Bearings
Drive chain	#50 double roller chain	#50 double roller chain	#50 double roller chain
Angle adjustment (left or right - hydraulic or manual)	15 °	15 °	15 °
Side plates	Standard, removable with storage rack	Standard, removable with storage rack	Standard, removable with storage rack
Skid shoes	replaceable	replaceable	replaceable
Chaincase lubrication type	Shell Gadus S2 V2200 00 flowable grease or equivalent	Shell Gadus S2 V2200 00 flowable grease or equivalent	Shell Gadus S2 V2200 00 flowable grease or equivalent
Chaincase Lubrication capacity	1.18 l	1.18 l	1.18 l

Dimensions

Name	PR1660	PR1672	PR1690
Working Width	152 cm	183 cm	229 cm
Weight	444.5 kg	453.6 kg	521.6 kg
Material control deflector	13x127 mm	13x127 mm	13x127 mm
Spiked roller diameter	238 mm	238 mm	238 mm
Spiked roller carbide tipped studs	19x38 mm	19x38 mm	19x38 mm
Angle cylinder	2x8 inch	2x8 inch	2x8 inch
Gauge wheels/Depth control	13x6.5 inch	16.5x6.5 inch	16.5x6.5 inch

Hitch

Name	PR1660	PR1672	PR1690
Hitch	Cat I	Cat I	Cat I
Quick Hitch	Fits Land Pride Q15/QH16 Cat I Quick Hitch	Fits Land Pride Q15/QH16 Cat I Quick Hitch	Fits Land Pride Q15/QH16 Cat I Quick Hitch
