Power Harrow PH2001 Series

Model Comparison Product Features Specifications

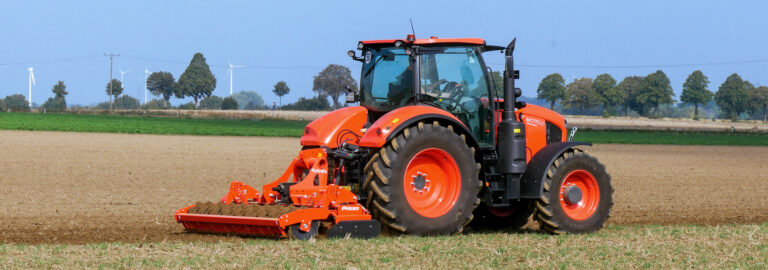

Power Harrow PH2001 Series previewPower Harrow PH2001 Series
Kubota’s PH2001 Series rigid medium-sized power harrows have a robust, self-supporting trough design for extra strength and trouble-free operation. Two large conical bearings at a wide distance provide rigidity and long service life, while the reliable headstock means easy connection to all tractors and versatile heavy seed drill combinations. The horizontal transmission and self-supporting frame give increased strength, reduced weight and improved centre of gravity for lift capacity.

Model Comparison

Finance Offers
Download Brochure
  • 3 m
  • 3.5 m
  • 4 m

Product Features

The Kubota PH2001 Series Rigid Power Harrows are designed for heavy conditions and tractors up to 180 PTO hp. Working widths in this series are from 3 m to 4 m, with matching transport width. Lower weight but strong design mean efficient performance in a range of conditions, with minimal power requirement and less fuel consumption. There’s 90 mm of clearance between the trough bottom and tine holder, and fully welded rotor housings ensure high bend and torque resistance in very tough soils. Optimum performance and low power consumption is further achieved by closer inter-tine carrier distance (250 mm) and helical tine drive layout.

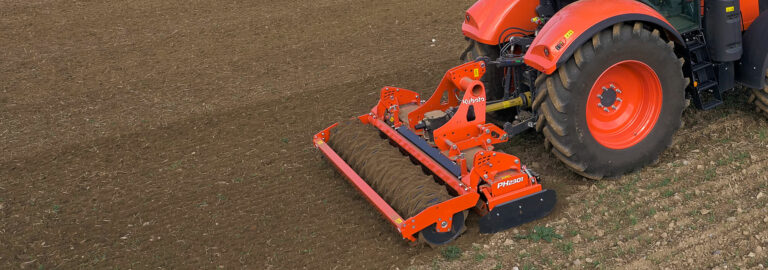

kubota previewkubota
1
2
3
4
5

Heavy-Duty Trough

The Kubota PH2001 Series provides optimum performance in difficult soils, with a robust trough and large clearance between the tine holder and trough bottom. This allows large amounts of residues and stones to pass freely and provides excellent results in mulch conditions. The PH2001 Series has two profiled 6 mm plates ensuring precise rotor spacing, and high bend resistance in the 140 x 400 mm trough. Like all Kubota power harrows, there are 4 rotors per metre of trough.

Heavy-Duty Trough

The Kubota PH2001 Series provides optimum performance in difficult soils, with a robust trough and large clearance between the tine holder and trough bottom. This allows large amounts of residues and stones to pass freely and provides excellent results in mulch conditions. The PH2001 Series has two profiled 6 mm plates ensuring precise rotor spacing, and high bend resistance in the 140 x 400 mm trough. Like all Kubota power harrows, there are 4 rotors per metre of trough.

Specifications

Download Brochure
Dimensions & Weight
Name PH2301 PH2351 PH2401
Working Width 3 m 3.5 m 4 m
Transport Width 3 m 3.5 m 4 m
Weight w/575mm Packer Roller 1,650 kg 1,825 kg 2,025 kg
Name PH2301 PH2351 PH2401
PTO Input Speed 1,000 rpm 1,000 rpm 1,000 rpm
Min. Power Required PTO 85 hp 85 hp 85 hp
Max. Power Allowed PTO 180 hp 180 hp 180 hp
Oscillating Lower Link Size Cat II Cat II Cat II & Cat III
Name PH2301 PH2351 PH2401
Overload Protection Automatic Clutch Automatic Clutch Automatic Clutch
No. of Rotors 12 14 16
No. of Tines 24 28 32
Tine Size 15 x 330 mm 15 x 330 mm 15 x 330 mm
Max. Working Depth 280 mm 280 mm 280 mm
Rotor Speed 336 rpm 336 rpm 336 rpm
Depth Control (Cage Roller) 550 mm dia. 550 mm dia. 550 mm dia.
Depth Control (Packer Roller) 575 mm dia. 575 mm dia. 575 mm dia.
Depth Control (ActiPack Roller) 565 mm dia. 565 mm dia. 565 mm dia.
Name PH2301 PH2351 PH2401
Tines Quick Fit Carbide (Hard Faced) Quick Fit Carbide (Hard Faced) Quick Fit Carbide (Hard Faced)
Drive Shaft GKN 1-3/8" 6 Spline Drive Line With Automatic Clutch GKN 1-3/8" 6 Spline Drive Line With Automatic Clutch GKN 1-3/8" 6 Spline Drive Line With Automatic Clutch
Levelling Rear Levelling Bar w/Extension Rear Levelling Bar w/Extension Rear Levelling Bar w/Extension
