PH2400F
/ PH2500F
/ PH2600F

Power Harrow PH2000F Series

Model Comparison Product Features Specifications

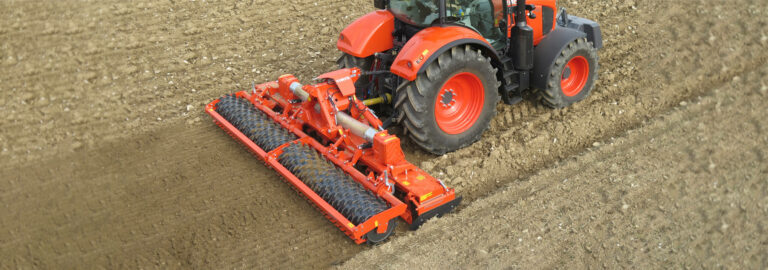

Power Harrow PH2000F Series previewPower Harrow PH2000F Series
The Kubota PH2000F Series are folding power harrows with working widths from 4 m to 6 m, suitable for large-scale farming. An innovative trough design means that no lateral frame is required, which saves weight and simplifies set-up. There are 4 rotors per metre of trough, and optimum tillage and low power consumption is achieved by the closer inter-tine carrier distances (250 mm). Helical tine configuration and 95 mm rotor clearance allow perfect soil levelling and preparation.

Model Comparison

Finance Offers
Download Brochure
  • 4 m
  • 5 m
  • 6 m

Product Features

The Kubota PH2000F Series Folding Power Harrow are designed for heavy conditions and built for tractors up to 300 PTO hp. Working widths in this series are from 4 m to 6 m, but with a compact 2.5 m transport width. The lower weight but strong design mean efficient performance in a range of conditions, with minimal power requirement and thus less fuel consumption.

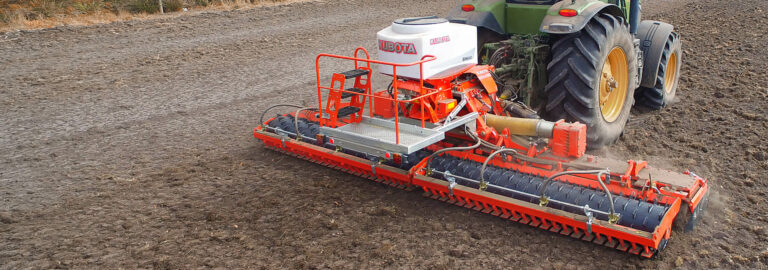

kubota previewkubota
1
2
3
4

Heavy-Duty Trough

The Kubota PH2000F Series has an innovative trough design without a lateral frame. The open design saves weight and offers high 95 mm clearance between the tine holder and trough bottom. Double conical bearings and 50 mm rotor shaft in combination with removable tine holders and quick-fit carbide coated tines guarantee high reliability, excellent wear and very low maintenance even in abrasive soils.

Heavy-Duty Trough

The Kubota PH2000F Series has an innovative trough design without a lateral frame. The open design saves weight and offers high 95 mm clearance between the tine holder and trough bottom. Double conical bearings and 50 mm rotor shaft in combination with removable tine holders and quick-fit carbide coated tines guarantee high reliability, excellent wear and very low maintenance even in abrasive soils.

Specifications

Download Brochure
Dimensions & Weight
Name PH2400F PH2500F PH2600F
Working Width 4 m 5 m 6 m
Transport Width 2.5 m 2.5 m 2.5 m
Weight w/575mm Packer Roller 2,590 kg 3,290 kg 3,690 kg
Name PH2400F PH2500F PH2600F
PTO Input Speed 1,000 rpm 1,000 rpm 1,000 rpm
Min. Power Required PTO 130 hp 130 hp 130 hp
Max. Power Allowed PTO 300 hp 300 hp 300 hp
Oscillating Lower Link Size Cat III Cat III Cat III
Name PH2400F PH2500F PH2600F
Overload Protection (per each side drive) Automatic Clutch Automatic Clutch Automatic Clutch
No. of Rotors 16 20 24
No. of Tines 32 40 48
Tine Size 15 x 330 mm 15 x 330 mm 15 x 330 mm
Max. Working Depth 280 mm 280 mm 280 mm
Rotor Speed 336 rpm 336 rpm 336 rpm
Depth Control (Cage Roller) 550 mm dia. 550 mm dia. 550 mm dia.
Depth Control (Packer Roller) 575 mm dia. 575 mm dia. 575 mm dia.
Name PH2400F PH2500F PH2600F
Tines Quick Fit Carbide (Hard Faced) Quick Fit Carbide (Hard Faced) Quick Fit Carbide (Hard Faced)
Drive Shaft 1-3/8" - 6 Spline 1000rpm (Walterscheid) Lateral PTO w/Auto Clutch 1-3/8" - 6 Spline 1000rpm (Walterscheid) Lateral PTO w/Auto Clutch 1-3/8" - 6 Spline 1000rpm (Walterscheid) Lateral PTO w/Auto Clutch
Depth Control Adjustment Hydraulic Parallelogram w/Spacers Hydraulic Parallelogram w/Spacers Hydraulic Parallelogram w/Spacers
Levelling Rear Levelling Bar Rear Levelling Bar Rear Levelling Bar
