Power Harrow PH1001 Series

Model Comparison Product Features Specifications

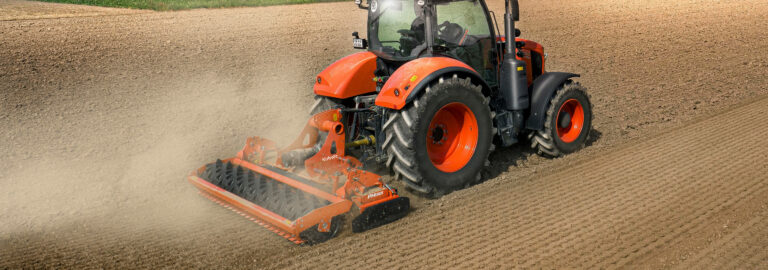

Power Harrow PH1001 Series previewPower Harrow PH1001 Series
The Kubota PH1001 Series are medium-sized power harrows designed for heavy conditions and tractors up to 140 PTO hp. Thanks to hardened gears and good distance between the conical bearings, the trough design for the PH1001 is strong, reliable and trouble-free.

Model Comparison

Finance Offers
Download Brochure
  • 2.5 m
  • 3 m

Product Features

The Kubota PH1001 Series Rigid Power Harrow is the ideal implement for mid class tractors up to 140 PTO hp. Working widths in this series are either 2.5 or 3 m, with matching transport width, and PTO input of 540 rpm. The light weight but strong design mean excellent performance in a range of conditions. The trough is self-supporting, with 95 mm clearance between the trough bottom and tine holder. The 50 mm tine shafts and two large conical bearings set wide provide rigidity and long service life.

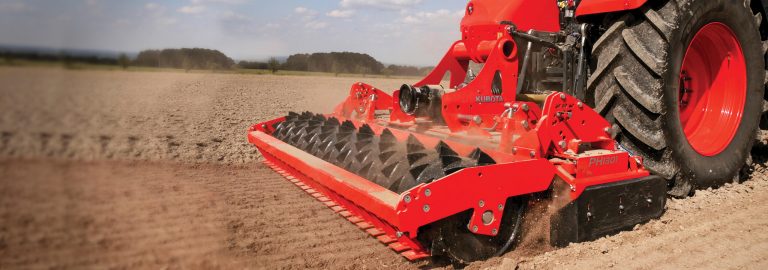

kubota previewkubota
1
2
3
4
5

Heavy-Duty Trough

The Kubota PH1001 Series performs well in difficult soils due the robust trough design and large clearance between the tine holder and trough bottom. This allows residues and stones to pass freely and provides excellent results in mulch conditions. A 5 mm profiled plate and 5 mm top plate form the 120 x 400 mm trough. Fully welded rotor housings ensure high bend and torque resistance, while precise rotor positioning and a 10 mm reinforcement plate guarantee strong performance.

Heavy-Duty Trough

The Kubota PH1001 Series performs well in difficult soils due the robust trough design and large clearance between the tine holder and trough bottom. This allows residues and stones to pass freely and provides excellent results in mulch conditions. A 5 mm profiled plate and 5 mm top plate form the 120 x 400 mm trough. Fully welded rotor housings ensure high bend and torque resistance, while precise rotor positioning and a 10 mm reinforcement plate guarantee strong performance.

Specifications

Download Brochure
Dimensions & Weight
Name PH1251 PH1301
Working Width 2.5 m 3 m
Transport Width 2.5 m 3 m
Weight w/575mm Packer Roller 1,300 kg 1,450 kg
Name PH1251 PH1301
PTO Input Speed 540 rpm 540 rpm
Min. Power Required PTO 70 hp 70 hp
Max. Power Allowed PTO 140 hp 140 hp
Oscillating Lower Link Size Cat II Cat II
Name PH1251 PH1301
Overload Protection Automatic Clutch Automatic Clutch
No. of Rotors 10 12
No. of Tines 20 24
Tine Size 12 x 280 mm 12 x 280 mm
Max. Working Depth 230 mm 230 mm
Rotor Speed 311 rpm 311 rpm
Depth Control (Cage Roller) 550 mm dia. 550 mm dia.
Depth Control (Packer Roller) 575 mm dia. 575 mm dia.
Depth Control (ActiPack Roller) 565 mm dia. 565 mm dia.
Name PH1251 PH1301
Tines Quick Fit Quick Fit
Drive Shaft GKN 1-3/8" 6 Spline Drive Line With Automatic Clutch GKN 1-3/8" 6 Spline Drive Line With Automatic Clutch
Levelling Rear Levelling Bar w/Extension Rear Levelling Bar w/Extension
