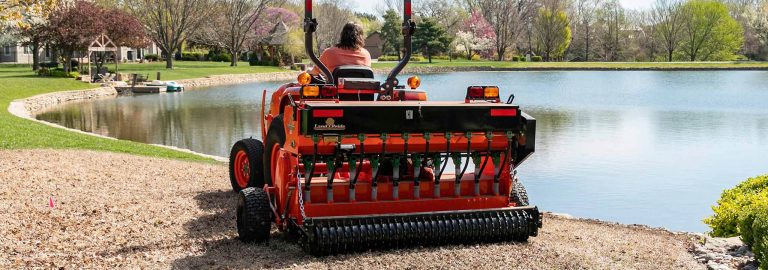

Overseeder OS15 Series

Model Comparison Product Features Specifications

Land Pride's OS1548 & OS1572 Solid Stand Overseeders offer precise placement and seed-to-soil contact, making them ideal for over-seeding existing stands of grass or establishing new turf. The three way seed-to-soil contact system provides great germination and emergence with the solid advantages of a full-width seeding pattern. Your choice of straight or curved knives slice into the ground creating slits to receive the seed. Fluted seed cups precisely meter the desired amount of seed in a broadcast pattern, delivering outstanding metering accuracy. The solid, cast-iron packer wheels finish the job by pressing and firmly packing the seed into the soil, eliminating most air pockets. Choose from gauge-wheel drive or plant close to sidewalks and obstacles with the rear-roller drive.

Model Comparison

Finance Offers

Download Brochure

129 cm
183 cm

Product Features

QUICK-HITCH COMPATIBLE

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

QUICK-HITCH COMPATIBLE

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

Specifications

Highlight differences

Download Brochure

Specifications

Name	OS1548	OS1572
Min. Horsepower	25 hp	30 hp
Max. Horsepower	60 hp	60 hp
Rotor - Diameter	457 mm	457 mm
Productivity @ 5.6km/h (Broadcast)	0.6 ha/h	0.8 ha/h
Max. Working Depth	38 mm	38 mm
Gearbox	540 rpm	540 rpm
Rear Roller Diameter	12" (305mm)	12" (305mm)
Driveline	Cat III Slip Clutch	Cat III Slip Clutch
Transport Lights	Standard	Standard

Seedbox

Name	OS1548	OS1572
Seedbox – Paddle Agitator	141 L	211 L
Small Seedbox Capacity	33.5 L	47.9 L
Number of Seed Cups	7	10
Seed Cups Drive	Rear Roller	Rear Roller

Hitch

Name	OS1548	OS1572
Cat. I

Dimensions

Name	OS1548	OS1572
Working Width	129 cm	183 cm
Overall Width w/ Gauge Wheels	197 cm	251 cm
Overall Width w/ Rear Roller Drive	153 cm	206 cm
Overall Length	133 cm	133 cm
Empty Weight – 5.1cm Spacing Wheel Drive	585 kg	746 kg
Empty Weight – 5.1cm Spacing Roller Drive	567 kg	728 kg
Empty Weight – 736cm Spacing Roller Drive	553 kg	710 kg

Knives

Name	OS1548	OS1572
Knife Type	Curved	Curved
Knives Per Flange	5	5
Knife Tip Speed	10.2 m/s	10.2 m/s
Knife Max. Depth	38 mm	38 mm
Knife Spacing	2" (51mm)	2" (51mm)
Knife Thickness	4 mm	4 mm
