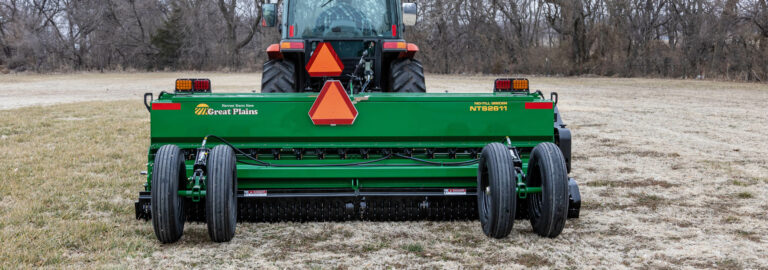

No-Till Broadcast Seeder

Model Comparison Product Features Specifications

The NTS26 No-Till Seeder makes quick work of seeding tasks with available working widths of seven, nine, or eleven feet. The upgraded NTS26 boasts several enhancements over previous generations for greater ease of use. These include a gearbox replacing the previous chain and sprocket system in the main seed box, as well as upgraded front roller spikes from 12.7mm to 15.9mm for enhanced durability. Seed metering is ground-driven through the rear packer-roller. Operators can conveniently disengage any seed box using individual lockout pins on each drive sprocket, or all boxes can be simultaneously disengaged with a single pin on the main sprocket. The NTS26 comes equipped with three seed boxes as standard, with a main box, a small seed box, and native grass seed box making the NTS26 well suited to a variety of uses. The NTS26 is particualry versatile, working as both a mounted or trailed machine thanks to its transport wheels and drawbar included as standard.

Model Comparison

Finance Offers

Download Brochure

2,460 mm
2,830 mm
3,570 mm

Product Features

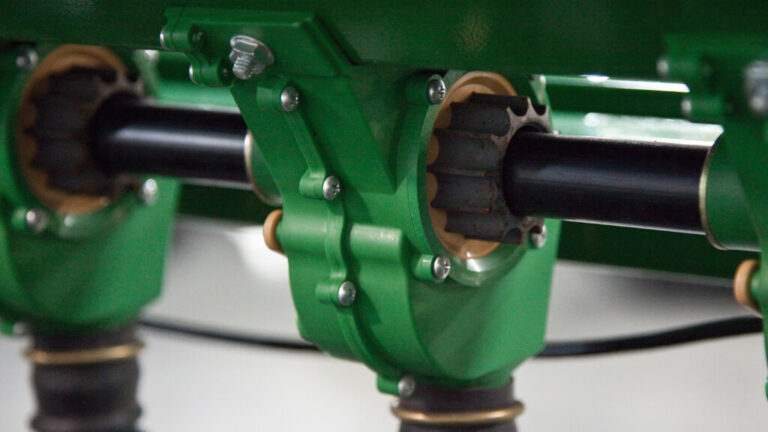

Metering Components

All three boxes utilise the same proven metering components found in all Great Plains seeding equipment. These three metering systems allow the No-Till Seeder to plant a wide variety of crops, from the smallest clovers to the fluffiest native grasses.

Metering Components

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	NTS2607	NTS2609	NTS2611
Length	3,370 mm	3,370 mm	3,370 mm
Height	1,100 mm	1,100 mm	1,100 mm
Transport Width	2,460 mm	2,830 mm	3,570 mm
Working Width	2,180 mm	2,540 mm	3,280 mm
Weight (3-Point with Native Grass Box)	1,002 kg	1,140 kg	1,427 kg
Tyres	2 x 6.70 x 15" SL	2 x 6.70 x 15" SL	4 x 6.70 x 15" SL

Specifications

Name	NTS2607	NTS2609	NTS2611
Model Info	No-Till Seeder (Broadcasting)	No-Till Seeder (Broadcasting)	No-Till Seeder (Broadcasting)
Tractor Attachment	Drawbar	Drawbar	Drawbar
Horsepower Min.	40 hp	50 hp	60 hp
Horsepower Max.	60 hp	85 hp	110 hp
Hitch	Pull-type with transport wheels	Pull-type with transport wheels	Pull-type with transport wheels
Main Box Capacity	264 L	310 L	398 L
Small Seeds Box Capacity	60 L	70 L	92 L
Native Grass Box Capacity	300 L	345 L	448 L
Front Rollers	22cm diameter, with 70mm greasable ball bearings	22cm diameter, with 70mm greaseable ball bearings	22cm diameter, with 70mm greasable ball bearings
Front Roller Angle	Up to 18 degrees	Up to 18 degrees	Up to 18 degrees
Front Roller Spikes	16mm x 51mm, Heat-treated steel, replaceable	16mm x 51mm, Heat-treated steel, replaceable	16mm x 51mm, Heat-treated steel, replaceable
Rear packer Roller	279mm - 10mm diameter, cast and notched grey iron rings	279mm - 10mm diameter, cast and notched grey iron rings	279mm - 10mm diameter, cast and notched grey iron rings
Seed Cups-Main Box and Small Seeds Box	12	14	18

Standard Options

Name	NTS2607	NTS2609	NTS2611
Small Seeds Box
Native Grass Box
Dual Front Spike Roller with Scraper Bundle
Drawbar Pull Package
Digital Acre Meter

Standard Features

Name	NTS2607	NTS2609	NTS2611
Pull Kit w/ Tongue, Jack, Lift cylinders & Hoses
Cylinders Master / Slave	Hitch Cylinder 89mm x 152mm Axle Cylinders 83mm x 152mm and 76mm x 152mm	Hitch Cylinder 89mm x 152mm, Axle Cylinders 83mm x 152mm and 76mm x 152mm	Hitch Cylinder 89mm x 152mm Axle Cylinders 83mm x 152mm and 76mm x 152mm
Formed Plate A‐Frame
Tube Frame	76mm x 102mm	76mm x 102mm	76mm x 102mm
Heavy Duty Lid w/ Seed Splash Guard
Ground Drive Metering
Seed Box Lockouts
Anti‐Reverse Clutch to Prevent Seed Cup Damage
Fluted Seed Cups for Accurate Metering
Wide Range of Calibration Settings w/ Gearbox and Sprocket and Chain
Wind Guarded Seed Drop
#40 Chain that is Spring Loaded and has Easy Access
2 Front Spiked Rollers
Roller Spike	16mm x 51mm, Heat Treated Steel, Replaceable	16mm x 51mm, Heat Treated Steel, Replaceable	16mm x 51mm, Heat Treated Steel, Replaceable
Number of Rear Rollers	1	2	2
Lift Hooks
