No Till Air Drill Spartan II 9m Direct Drill

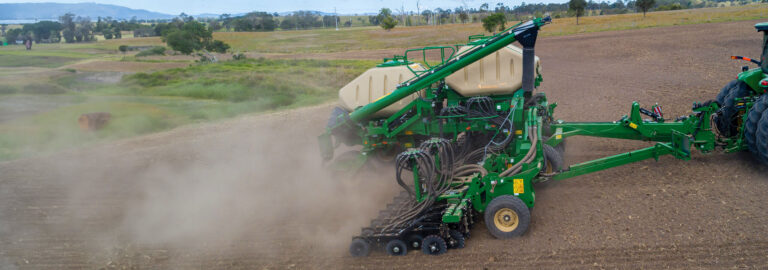

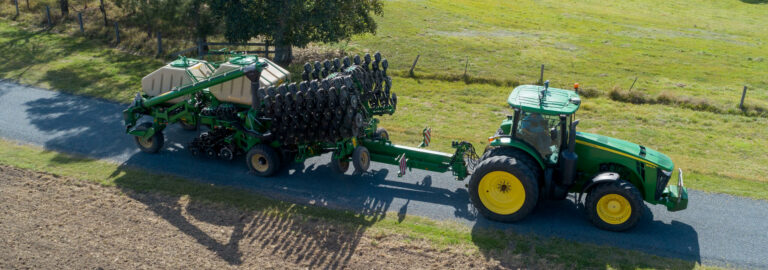

The Spartan II no-till air drills offer a range of features making them well suited to pasture renovation and fodder crop establishment. The 07 series triple disc opener enhances versatility allowing this machine to seed a wide variety of crops in both no-till conditions and worked ground. Individual row shut off and double shoot product delivery means the Spartan can sow at a number of different row spacings and allow specialized applications such as alternate row seeding. The new generation Spartan includes features such as variable-rate hydraulic drive for precise application rates and prescription maps. The Spartan II is available in six and nine-meter working widths, with both models folding down to a compact three meters for convenient transportation on roads and between fields. All Spartan II models feature zone cultivation seeding, hydraulic weight transfer, and 250kg down-pressure for true no-till seeding. The 9m Spartan offers 60 or 72 rows, with row spacings of 152mm (6") or 191mm (7.5"), and includes two 3,500-litre hoppers suitable for seeds and dry fertiliser.

Model Comparison

Finance Offers

Download Brochure

190.5 mm
152.4 mm

Product Features

The 9 meter NTA907‐2 has a choice of 6" (152mm) or 7.5" (191mm) row spacings. Featuring double shoot to opener, true no‐till sowing with 250kg ground pressure on the coulter and a 3 meter transport width, these machines are ideal for farmers and contractors in pasture renovation and hay cropping areas.

Variable-Rate Hydraulic Drive

The variable rate hydraulic meter drive system has an integrated radar sensor to accurately measure ground speed. The metering hydraulic motor incorporates an internal speed sensor to monitor meter speed. The system uses the same hydraulic circuit as the drill’s hydraulic down-pressure function reducing the number of tractor remotes required.

Variable-Rate Hydraulic Drive

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	NTA907-2-4875	NTA907-2-6006
Working Width	9,000 mm	9,000 mm
Working Length	8,500 mm	8,500 mm
Transport Width	3,000 mm	3,000 mm
Transport Height	4,000 mm	4,000 mm
Weight Min.	15,330 kg	16,200 kg
Weight Max.	23,200 kg	23,200 kg
Row Spacing	190.5 mm	152.4 mm
Transport Length	11,600 mm	11,600 mm
Coulter Type	Turbo	Turbo
Coulter Diameter	432 mm	432 mm
Disc Opener Diameter	343 mm	343 mm
Disc Opener Thickness	4 mm	4 mm

Specifications

Name	NTA907-2-4875	NTA907-2-6006
Max. Wing Flex Down	10°	10°
Max. Wing Flex Up	15°	15°
No. of Openers	48	60
Min. HP Required	250 hp	250 hp
Cart Tyre Size	400/60‐22.5	400/60‐22.5
Implement Tyre Size	11L‐15SL 10 ply	11L‐15SL 10 ply
Opener Down Pressure Max.	110 kg	110 kg
Coulter Down Pressure Max.	250 kg	250 kg
Hopper No. 1 Size	3,500 L	3,500 L
Hopper No. 2 Size	3,500 L	3,500 L
Hydraulic Flow Min.	95 L/min	95 L/min
No. Tractor Remotes	4	4

Standard Features

Name	NTA907-2-4875	NTA907-2-6006
07 Series Openers
Air Seed Delivery
ISO Terminal	TopCon XD	TopCon XD
Blockage Monitors	Dickey John	Dickey John
Manual Individual Row Shut Off
Hydraulic Weight Transfer
Hydraulic Variable Rate Metering
Push Button Calibration
Remote Hydraulically Positioned Auger

Standard Options

Name	NTA907-2-4875	NTA907-2-6006
Press Wheel	3 x 13	2 x 13
Adjustable Press Wheel Scrapers
Turbo Coulter
Hydraulic Brakes
Double Shoot to Opener
Dual Hopper
Dual Hydraulic Drive
Small Seed Metering Shaft
Remote Controlled Auger
Hydraulic Jack

Optional Accessories

Name	NTA907-2-4875	NTA907-2-6006
Tramline Kit	Optional	Optional
