No Till Air Drill Spartan II 6m Direct Drill

Model Comparison Product Features Specifications

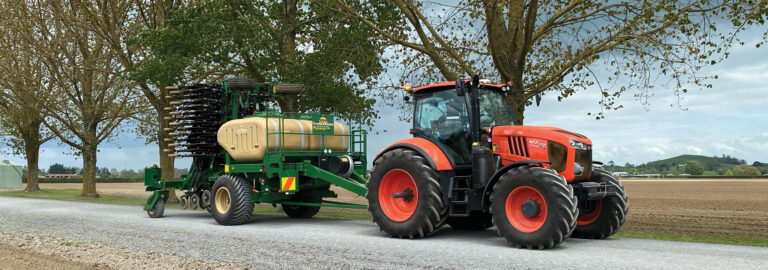

No Till Air Drill Spartan II 6m Direct Drill previewNo Till Air Drill Spartan II 6m Direct Drill
The Spartan II no-till air drills offer a range of features making them well suited to pasture renovation and fodder crop establishment. The 07 series triple disc opener enhances versatility allowing this machine to seed a wide variety of crops in both no-till conditions and worked ground. Individual row shut off and double shoot product delivery means the Spartan can sow at a number of different row spacings and allow specialised applications such as alternate row seeding. The new generation Spartan includes features such as variable-rate hydraulic drive for precise application rates and prescription maps. The Spartan II is available in six and nine-meter working widths, with both models folding down to a compact three meters for convenient transportation on roads and between fields. All Spartan II models feature zone cultivation seeding, hydraulic weight transfer, and 250kg down-pressure for true no-till seeding. The 6m Spartan offers 40 or 32 rows, with row spacings of 152mm or 191mm, and includes two 2885-litre hoppers suitable for seeds and dry fertiliser.

Model Comparison

Finance Offers
Download Brochure
  • 190.5 mm
  • 152.4 mm

Product Features

The 6 meter NTA607‐2 has a choice of 6" (152mm) or 7.5" (191mm) row spacings. Featuring double shoot to opener, true no‐till sowing with 250kg ground pressure on the coulter and a 3 meter transport width, these machines are ideal for farmers and contractors in pasture renovation and hay cropping areas.

kubota previewkubota
1
2
3
4
5
6
7
8

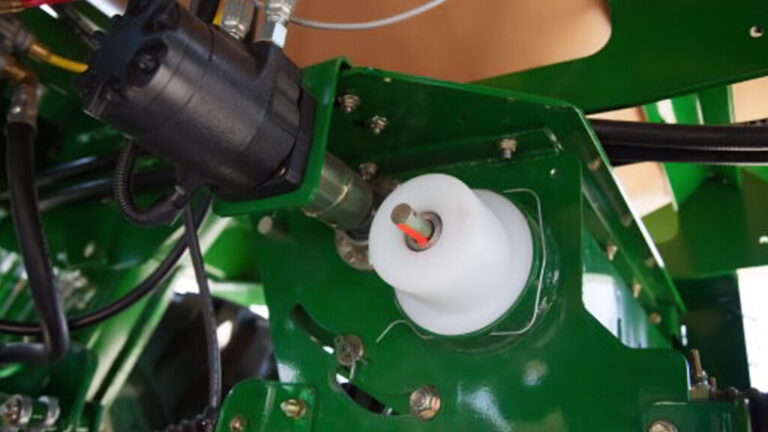

Variable-Rate Hydraulic Drive

Variable-Rate Hydraulic Drive

The variable rate hydraulic meter drive system has an integrated radar sensor to accurately measure ground speed. The metering hydraulic motor incorporates an internal speed sensor to monitor meter speed. The system uses the same hydraulic circuit as the drill’s hydraulic down-pressure function reducing the number of tractor remotes required.

Variable-Rate Hydraulic Drive

The variable rate hydraulic meter drive system has an integrated radar sensor to accurately measure ground speed. The metering hydraulic motor incorporates an internal speed sensor to monitor meter speed. The system uses the same hydraulic circuit as the drill’s hydraulic down-pressure function reducing the number of tractor remotes required.

Variable-Rate Hydraulic Drive

Specifications

Download Brochure
Dimensions & Weight
Name NTA607-2-3275 NTA607-2-4006
Working Width 6,100 mm 6,100 mm
Working Length 9,600 mm 9,600 mm
Transport Width 3,000 mm 3,000 mm
Transport Height 4,000 mm 4,000 mm
Weight Min. 10,200 kg 10,800 kg
Weight Max. 15,200 kg 15,800 kg
Row Spacing 190.5 mm 152.4 mm
Transport Length 9,100 mm 9,100 mm
Coulter Type Turbo Turbo
Coulter Diameter 432 mm 432 mm
Disc Opener Diameter 343 mm 343 mm
Disc Opener Thickness 4 mm 4 mm
Name NTA607-2-3275 NTA607-2-4006
Max. Wing Flex Down 10° 10°
Max. Wing Flex Up 15° 15°
No. of Openers 32 40
Min. HP Required 170 hp 170 hp
Cart Tyre Size 600/55‐26.5 16 ply 600/55‐26.5 16 ply
Implement Tyre Size 10.0/75‐15.3 18 ply 10.0/75‐15.3 18 ply
Opener Down Pressure Max. 110 kg 110 kg
Coulter Down Pressure Max. 250 kg 250 kg
Hopper No. 1 Size 2,885 L 2,885 L
Hopper No. 2 Size 2,885 L 2,885 L
Hydraulic Flow Min. 95 L/min 95 L/min
No. Tractor Remotes 3 3
Name NTA607-2-3275 NTA607-2-4006
07 Series Openers
Air Seed Delivery
ISO Terminal TopCon XD TopCon XD
Blockage Monitors Dickey John Dickey John
Manual Individual Row Shut Off
Hydraulic Weight Transfer
Hydraulic Variable Rate Metering
Additional Weight Kits
Push Button Calibration
Name NTA607-2-3275 NTA607-2-4006
Press Wheel 3 x 13 3 x 13
Adjustable Press Wheel Scrapers
Turbo Coulter
Hydraulic Brakes
Double Shoot to Opener
Dual Hopper
Dual Hydraulic Drive
Small Seed Metering Shaft
Name NTA607-2-3275 NTA607-2-4006
Tramline Kit Optional Optional
