SE7280
/ SE7320

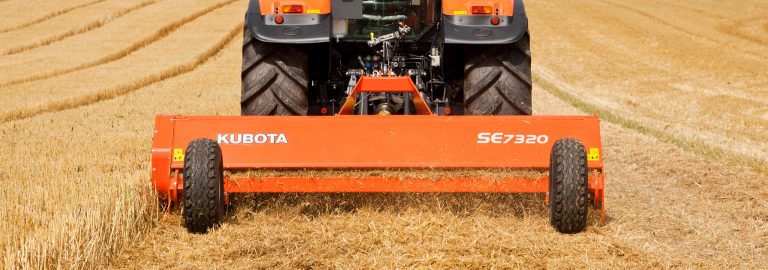

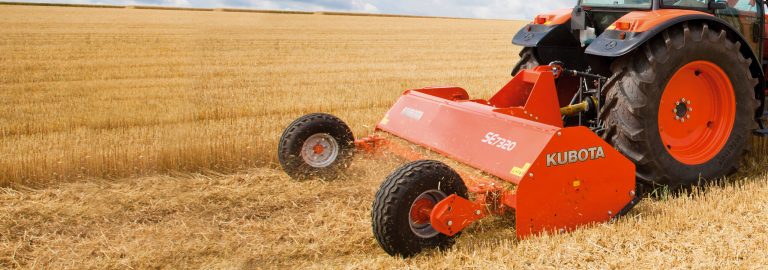

Mulcher SE7000 Series
Model Comparison
- 2.8 m
- 3.2 m
Product Features
The Kubota SE7000 Series is suitable for tractors up to 160 PTO hp. The heavy construction promises a reliable long life, while minimal maintenance makes the SE7000 Series a profitable mulcher. Heavy duty flail blades come as standard to meet a wide variety of applications, along with included skids and rear depth wheels.
1
2
3
4
Minimal Maintenance
The SE7000 Series combined with Kubota’s precisely manufactured rotor shafts and hard-wearing blades add up to extreme reliability with minimal maintenance.
| Name | SE7280 | SE7320 |
|---|---|---|
| Working Width | 2.8 m | 3.2 m |
| Transport Width | 2.95 m | 3.35 m |
| Weight | 1,174 kg | 1,302 kg |
| Name | SE7280 | SE7320 |
|---|---|---|
| Blade Type | Flail | Flail |
| No. of Flails | 72 | 80 |
| Name | SE7280 | SE7320 |
|---|---|---|
| Mounting Position | Rear | Rear |
| PTO Input Speed | 540 or 1000 rpm | 540 or 1000 rpm |
| Min. Power Required PTO | 55 hp | 55 hp |
| Max. Power Allowed PTO | 160 hp | 160 hp |
| Name | SE7280 | SE7320 |
|---|---|---|
| Rotor Speed (PTO input speed 540/1000) | 1729/1828 rpm | 1729/1828 rpm |
| Blade Tip Speed (PTO input speed 540/1000) | 59/62 m/sec | 59/62 m/sec |
| Rotor Shaft Diameter | 55 mm | 55 mm |
| Rotor Diameter | 245 mm | 245 mm |
| Rotor Thickness | 10 mm | 10 mm |
| Cutting Diameter | 650 mm | 650 mm |
| Name | SE7280 | SE7320 |
|---|---|---|
| No. of Belts | 5 | 5 |
| Belt Tensioner Adjustment | Automatic | Automatic |
| Name | SE7280 | SE7320 |
|---|---|---|
| Depth Control (Adjustable By Bolts) | 2 x Rear Wheels & Skids | 2 x Rear Wheels & Skids |
| Offset | None | None |
| Bolted Double Skin | ||
| Rear Wheel Size | 10/8.0 x 12.8 Ply | 10/8.0 x 12.8 Ply |
| Name | SE7280 | SE7320 |
|---|---|---|
| 2 Separate stationary counter knives |
