Mulcher SE4000 Series

Model Comparison Product Features Specifications

Agriculture

Implements

Mulchers

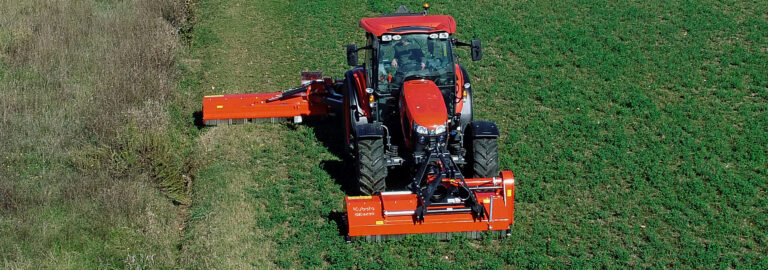

The Kubota SE4000 Series Mulcher is a powerful multipurpose chopper for grass, pasture, set-aside land and stubble, as well as clippings in orchards and vineyards. A strong double headstock allows for front or rear tractor mounting. Together with the hydraulic offset, this means the SE4000 is versatile in many conditions, from clearing out field edges and orchards to road edges. The hydraulic offset is also ideal for road maintenance.

Model Comparison

Finance Offers

Download Brochure

2.35 m
2.8 m
3.25 m

Product Features

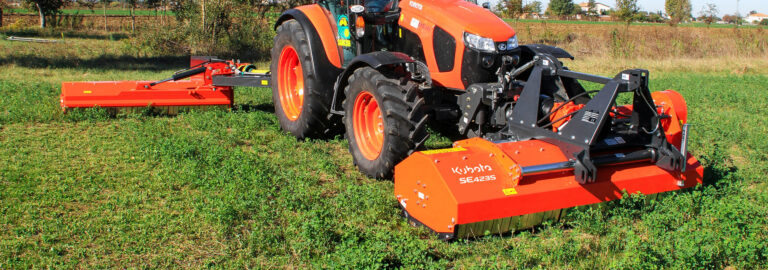

The Kubota SE4000 Series is suitable for tractors up to 140 PTO hp and available in working widths of 2.35 m, 2.80 m and 3.25 m. The central gearbox fitted into the headstock ensures the PTO shaft remains straight in all working positions – even at the maximum 500 mm offset the PTO angle does not change.

Minimal Maintenance

The SE4000 Series has a solid double-skin construction for long working life and minimal maintenance. The central gearbox guarantees a smooth drive, and reduced wear and tear across the whole driveline.

Minimal Maintenance

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	SE4235	SE4280	SE4325
Working Width	2.35 m	2.8 m	3.25 m
Transport Width	2.54 m	3 m	3.46 m
Weight	863 kg	980 kg	1,080 kg

Blades

Name	SE4235	SE4280	SE4325
Blade Type	Hammer	Hammer	Hammer
No. of Hammers	20	24	28

Attachment to Tractor

Name	SE4235	SE4280	SE4325
Mounting Position	Front & Rear	Front & Rear	Front & Rear
PTO Input Speed	540 or 1000 rpm	540 or 1000 rpm	540 or 1000 rpm
Min. Power Required PTO	60 hp	60 hp	60 hp
Max. Power Allowed PTO	140 hp	140 hp	140 hp

Rotor

Name	SE4235	SE4280	SE4325
Rotor Speed (PTO input speed 540/1000)	1729/1828 rpm	1729/1828 rpm	1729/1828 rpm
Blade Tip Speed (PTO input speed 540/1000)	44/48 m/sec	44/48 m/sec	44/48 m/sec
Rotor Shaft Diameter	50 mm	50 mm	50 mm
Rotor Diameter	220 mm	220 mm	220 mm
Rotor Thickness	8 mm	8 mm	8 mm
Cutting Diameter	500 mm	500 mm	500 mm

Lateral Transmission

Name	SE4235	SE4280	SE4325
No. of Belts	5	5	5
Belt Tensioner Adjustment	Automatic	Automatic	Automatic

Equipment & Features

Name	SE4235	SE4280	SE4325
Depth Control (Adjustable By Bolts)	Rear Roller & Skids (optional front wheels)	Rear Roller & Skids (optional front wheels)	Rear Roller & Skids (optional front wheels)
Hydraulic Offset w/ Nylon Bushings
Bolted Double Skin
Offset Distance	500 mm	500 mm	500 mm
Rear Roller Size	160 mm	160 mm	160 mm

Standard Extras

Name	SE4235	SE4280	SE4325
2 Separate stationary counter knives
Warning Panels
