Mulcher SE3000 Series

Model Comparison Product Features Specifications
Mulcher SE3000 Series previewMulcher SE3000 Series

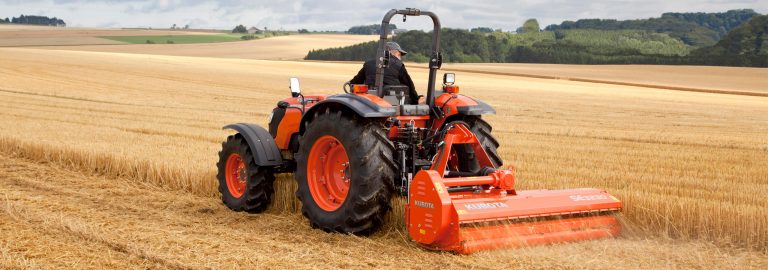

The Kubota SE3000 Series Mulcher is a compact, heavy-duty machine for moderately demanding jobs in soft and top fruit orchards, vineyards and light undergrowth. It’s equally handy for tidying pasture and other grass fields, or chopping straw and stubble. Due to its solid construction the SE3000 promises a long lifetime with minimal maintenance. The 500 mm standard offset increases versatility and provides safer working conditions. In addition, the standard roller and skids support the chopper to maintain a constant working depth.

Model Comparison

Finance Offers
Download Brochure
  • 1.55 m
  • 1.85 m
  • 2 m
  • 2.3 m
  • 2.5 m

Product Features

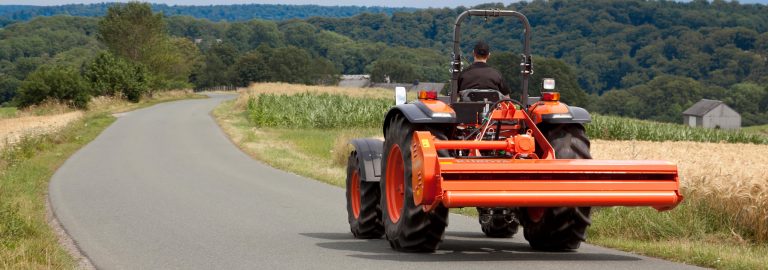

The SE3000 Series, for tractors up to 80 PTO hp, is modern and versatile, with the latest generation rotor equipped with hammer blades for adaptation to most conditions. The 160 mm diameter rear roller is standard, and the top rotor speed (2243 rpm) in combination with the double counter knife and double skin guarantee excellent shredding with minimal power requirement.

kubota previewkubota
1
2
3
4
5
6

Low Maintenance

Thanks to its solid construction, double skin as standard, and nylon plate in the sliding guide rail, the SE3000 Series promises a long lifetime with minimal maintenance.

Low Maintenance

Thanks to its solid construction, double skin as standard, and nylon plate in the sliding guide rail, the SE3000 Series promises a long lifetime with minimal maintenance.

Specifications

Download Brochure
Dimensions & Weight
Name SE3155 SE3185 SE3200 SE3230 SE3250
Working Width 1.55 m 1.85 m 2 m 2.3 m 2.5 m
Transport Width 1.77 m 2.07 m 2.22 m 2.52 m 2.74 m
Weight 475 kg 540 kg 572 kg 620 kg 655 kg
Name SE3155 SE3185 SE3200 SE3230 SE3250
Blade Type Hammer Hammer Hammer Hammer Hammer
No. of Hammers 20 24 28 30 32
Name SE3155 SE3185 SE3200 SE3230 SE3250
Mounting Position Rear Rear Rear Rear Rear
PTO Input Speed 540 rpm 540 rpm 540 rpm 540 rpm 540 rpm
Min. Power Required PTO 35 hp 35 hp 35 hp 35 hp 35 hp
Max. Power Allowed PTO 80 hp 80 hp 80 hp 80 hp 80 hp
Name SE3155 SE3185 SE3200 SE3230 SE3250
Rotor Speed 2,243 rpm 2,243 rpm 2,243 rpm 2,243 rpm 2,243 rpm
Blade Tip Speed 52 m/sec 52 m/sec 52 m/sec 52 m/sec 52 m/sec
Rotor Shaft Diameter 50 mm 50 mm 50 mm 50 mm 50 mm
Rotor Diameter 170 mm 170 mm 170 mm 170 mm 170 mm
Rotor Thickness 10 mm 10 mm 10 mm 10 mm 10 mm
Cutting Diameter 450 mm 450 mm 450 mm 450 mm 450 mm
Name SE3155 SE3185 SE3200 SE3230 SE3250
No. of Belts 5 5 5 5 5
Belt Tensioner Adjustment Automatic Automatic Automatic Automatic Automatic
Name SE3155 SE3185 SE3200 SE3230 SE3250
Depth Control (Adjustable By Bolts) Rear Roller & Skids Rear Roller & Skids Rear Roller & Skids Rear Roller & Skids Rear Roller & Skids
Mechanical Offset by Pin (optional Hydraulic)
Bolted Double Skin
Offset Distance 500 mm 500 mm 500 mm 500 mm 500 mm
Rear Roller Size 160 mm 160 mm 160 mm 160 mm 160 mm
Name SE3155 SE3185 SE3200 SE3230 SE3250
2 Separate stationary counter knives
