Mulcher SE2000P Series

Model Comparison Product Features Specifications

Agriculture

Implements

Mulchers

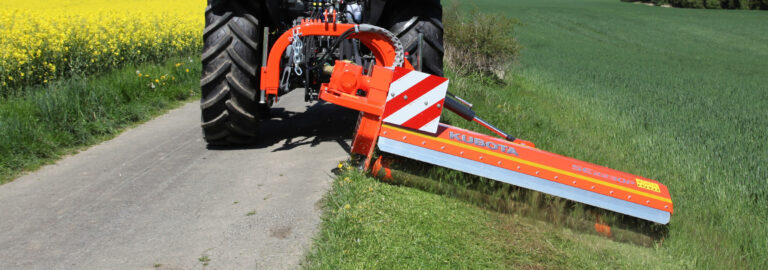

The Kubota SE2000P Series Mulcher is a highly versatile and manoeuvrable solution for farming and road maintenance due to the variation in working angle positions, making the SE2000P indispensable for daily farming or contracting. Compared to the SE2000 the SE2000P has major offset abilities (1250 mm) and reach positions, providing working angles impossible to achieve with similar equipment. In addition, the SE2000P allows chopper combinations with a front unit (SE4000 Series or SE6000 Series) so working coverage is optimised without any overlap.

Model Comparison

Finance Offers

Download Brochure

2 m
2.3 m
2.5 m

Product Features

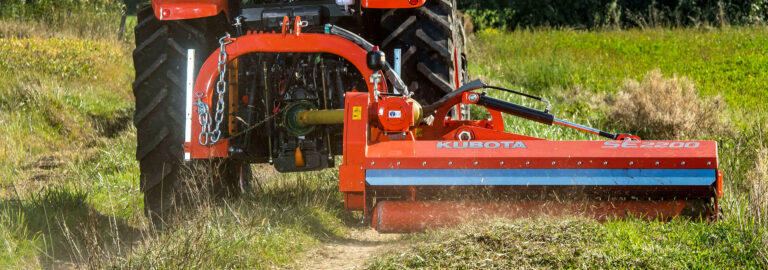

The Kubota SE2000P Series, with working widths of 2 to 2.5 m, offers all the features and strength required by professional users. It combines robust design with heavy construction for excellent field performance. That also means high safety and comfort during operations and maximum reliability in work.

Easy Maintenance

The SE2000P Series is easy to maintain, with minimal greasing points in combination with a hydraulic accumulator on the telescopic arm to protect against damage.

Easy Maintenance

The SE2000P Series is easy to maintain, with minimal greasing points in combination with a hydraulic accumulator on the telescopic arm to protect against damage.

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	SE2200P	SE2230P	SE2250P
Working Width	2 m	2.3 m	2.5 m
Transport Width	2.2 m	2.4 m	2.4 m
Weight	870 kg	925 kg	1,000 kg

Blades

Name	SE2200P	SE2230P	SE2250P
Blade Type	Hammer	Hammer	Hammer
No. of Hammers	28	30	32

Attachment to Tractor

Name	SE2200P	SE2230P	SE2250P
Mounting Position	Rear	Rear	Rear
PTO Input Speed	540 rpm	540 rpm	540 rpm
Min. Power Required PTO	70 hp	70 hp	70 hp
Max. Power Allowed PTO	130 hp	130 hp	130 hp

Rotor

Name	SE2200P	SE2230P	SE2250P
Rotor Speed	2,243 rpm	2,243 rpm	1,858 rpm
Blade Tip Speed	52 m/sec	52 m/sec	52 m/sec
Rotor Shaft Diameter	50 mm	50 mm	50 mm
Rotor Diameter	170 mm	170 mm	170 mm
Rotor Thickness	10 mm	10 mm	10 mm
Cutting Diameter	450 mm	450 mm	450 mm

Lateral Transmission

Name	SE2200P	SE2230P	SE2250P
No. of Belts	5	5	5
Belt Tensioner Adjustment	Automatic	Automatic	Automatic

Equipment & Features

Name	SE2200P	SE2230P	SE2250P
Headstock Box Section Size	120 x 120 mm	120 x 120 mm	120 x 120 mm
Depth Control (Adjustable By Bolts)	Rear Roller & Skids	Rear Roller & Skids	Rear Roller & Skids
Hydraulic Offset Distance	1,200 mm	1,200 mm	1,535 mm
Bolted Double Skin
Offset Arm	Parallelogram	Parallelogram	Parallelogram
Breakaway Protection by Hydraulic Accumulator
Rear Roller Size	195 mm	195 mm	195 mm
Working Horizontally Directly Behind and Variably to the RIGHT
Working Angle Down a Bank	-65° degrees	-65° degrees	-65° degrees
Working Angle Up a Bank or a Tree Break/Hedge	+90° degrees	+90° degrees	+90° degrees

Standard Extras

Name	SE2200P	SE2230P	SE2250P
2 Separate stationary counter knives
Warning Panels
