Mulcher SE1001 Series

Model Comparison Product Features Specifications

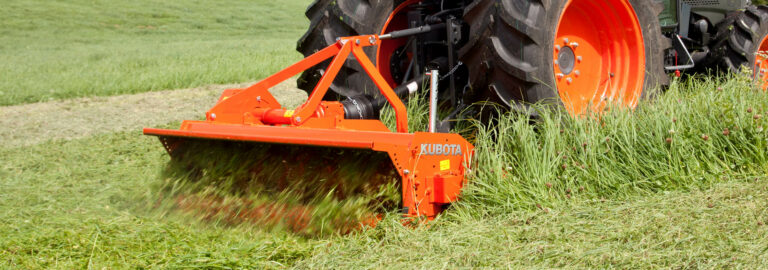

The Kubota SE1001 Series Mulcher is a small, medium-duty machine for use on slightly rough ground and other green amenity areas, and for tidying pasture and similar situations. The SE1001 is suitable for tractors up to 50 PTO hp and available in 1.50 m and 1.80 m working widths. Like our entire mulcher range, the SE1001 Series is solidly built, precisely balanced, easy to control and requires little to no maintenance even in the toughest conditions. These first machines in the mulcher range are small and light, but still offer high rotation speed and plenty of flail blades for powerful chopping performance.

Model Comparison

Finance Offers

Download Brochure

1.5 m
1.8 m

Product Features

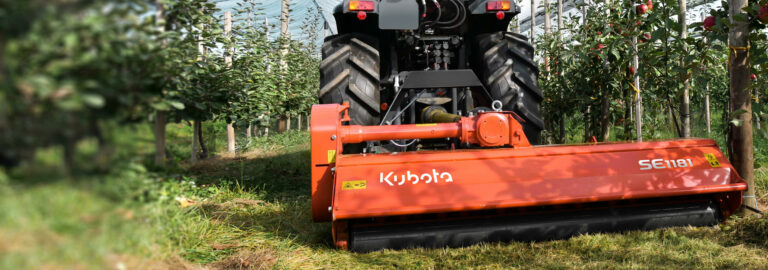

The Kubota SE1001 Series Mulcher is the perfect choice for tidying green areas and slightly rough pasture. It’s easy to operate and requires minimum maintenance. The rear roller (as standard) allows for reliable control of working depth, and the mechanical headstock offset is convenient for centre or right-side set-ups.

Low Maintenance

The Kubota SE1001 Series is small, light, and easy to operate and maintain. The standard roller and mechanical offset are robust, and the rotor is accurately balanced for consistently smooth running.

Low Maintenance

The Kubota SE1001 Series is small, light, and easy to operate and maintain. The standard roller and mechanical offset are robust, and the rotor is accurately balanced for consistently smooth running.

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	SE1151	SE1181
Working Width	1.5 m	1.8 m
Transport Width	1.7 m	2 m
Weight	272 kg	329 kg

Blades

Name	SE1151	SE1181
Blade Type	Flail	Flail
No. of Flails	80	96

Attachment to Tractor

Name	SE1151	SE1181
Mounting Position	Rear	Rear
PTO Input Speed	540 rpm	540 rpm
Min. Power Required PTO	15 hp	15 hp
Max. Power Allowed PTO	50 hp	50 hp

Rotor

Name	SE1151	SE1181
Rotor Speed	1,993 rpm	1,993 rpm
Blade Tip Speed	46 m/sec	46 m/sec
Rotor Shaft Diameter	40 mm	40 mm
Rotor Diameter	101.6 mm	101.6 mm
Rotor Thickness	8 mm	8 mm
Cutting Diameter	386 mm	386 mm

Lateral Transmission

Name	SE1151	SE1181
No. of Belts	2	3
Belt Tensioner Adjustment	By Screw Setting	By Screw Setting

Equipment & Features

Name	SE1151	SE1181
2 Position Mechanical Offset
Depth Control (Adjustable By Bolts)	Rear Roller	Rear Roller
Rear Roller Size	135 mm	135 mm
