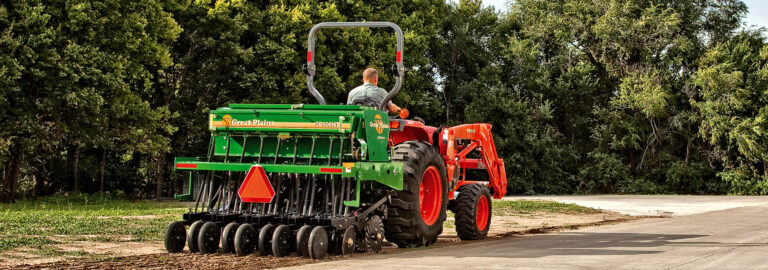

Linkage Mounted No-Till Drills

Model Comparison Product Features Specifications

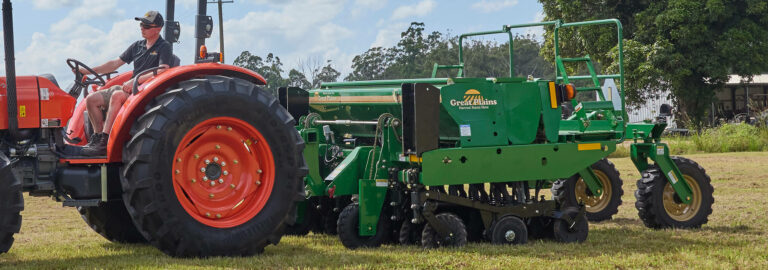

Great Plains Linkage Mounted No‐Till Drills allow you to get close to field edges and with our proven ground drive, no hydraulics are needed. This heavy‐duty no‐till drill is loaded with features, including 203 kg pre‐loaded coulters, a calibration crank that is convenient to access, a ground‐driven metering system, rain‐tight Seed Box lids, and our finest double-disk no‐till 06 series opener. The coulter blade is our exclusive 5/8'' Turbo Blade and comes standard with a fluted feed seed box. Available in three models, 3P606NT, 3P806NT, and 3P1006NT, with working widths of 1.72, 2.47, and 2.86 metres respectively. The 3P606N is particularly compact and maneuverable, making it ideal for tight spaces and field edges or when maneuvering around obstacles is needed. The 3P806NT and 3P1006NT feature lift-assist wheels that reduce tractor 3-point lift requirements. Designed specifically for planting directly into high-residue areas such as pasture renovations and food plots, these drills enable simultaneous planting of three different seeds at varying rates thanks to durable openers and multiple seedboxes.

Model Comparison

Finance Offers

Download Brochure

1,720 mm
2,470 mm
2,860 mm

Product Features

06 Series Opener

The 06 Series Opener is a triple disc system. The leading Turbo coulter can have up to 203kg pre load to cut residue and prepare a mini‐seed bed for the trailing double disc opener. The Great Plains double disc opener has a unique full length seed tube design to control the seed all the way to the bottom of the trench where the seed stays. Opener discs are 34cm in diameter with 4mm thick blades, 205 triple‐lip sealed bearings, and 19mm opener disc lead.

06 Series Opener

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	3P606NT	3P806NT	3P1006NT
Row Spacing	191 mm	191 mm	191 mm
Number of Rows	9	13	15
Tyre Size	5.70L x 8	265/ 70B 16.5	265/ 70B 16.5
Weight Approx.	1,034 kg	1,973 kg	2,476 kg
Working Width	1,720 mm	2,470 mm	2,860 mm
Transport Width	1,840 mm	2,510 mm	3,000 mm
Length (transport)	1,550 mm	3760mm w/ lift Assist	3760mm w/ lift Assist
Clearance (transport)	Varies	Varies	Varies
Height (transport)	Varies	2,410 mm	2,410 mm
Double Disc Opener	343mm x 4 mm	343mm x 4 mm	343mm x 4 mm
Opener Travel	165 mm	165 mm	165 mm
Opener Depth Min.	0 mm	0 mm	0 mm
Opener Depth Max.	89 mm	89 mm	89 mm
Opener Down Pressure Min.	40.8 kg	41 kg	41 kg
Opener Down Pressure Max.	81.6 kg	81.6 kg	82 kg
Coulter	432mm x 16mm Turbo	432mm x 16mm Turbo	432mm x 16mm Turbo
Coulter Pre Load	203 kg	203 kg	203 kg
Main Box Capacity	423 l	564 l	705 l
Second Seed Box		282 l	N/A
Fertiliser Box Capacity		210 l	261 l
Small Seed Box Capacity	51 l	67 l	85 l

Specifications

Name	3P606NT	3P806NT	3P1006NT
Primary Design	No-till	No-till	No-till
Tractor Attachment	3 Point Linkage	3 Point Linkage	3 Point Linkage
Engine Horsepower Min.	60 hp	80 hp	100 hp
Opener Series	06 Series	06 Series	06 Series

Standard Options

Name	3P606NT	3P806NT	3P1006NT
Category II Lower Hitch Plates	Cat II	Cat II	Cat II
Acre Meter
Single Gauge \| Drive Wheel
Dual Gauge \| Drive Wheel
2 bu./ft Main Box Capacity
44mm Fluted Feed Cups w/ powdered Metal Flutes
Calibration Crank
Grease Bank
4 Speed Gearbox
Direct Link Press Wheel For Depth Control
Heavy Duty Coil Springs
T-handle Opener Depth Adjustment
Seed Tubes & Flaps
Walk Board w/ steps
Walk Board Handrail
Spring Steel Coulter Mounting Bars
Folding Rear Ladder
Safety Lighting
Manual Storing Pak
Seed Level Indicator
Gas Shock Assisted Lids
Rear Lift Assist Wheels
Light Kit
Press Wheel	76mm x 330 mm	76mm x 330 mm	76mm x 330 mm
Adjustable Press Wheel Scrapers
Turbo Coulter	432mm x 16mm	432mm x 16mm	432mm x 16mm
Main Seed Box
Small Seed Box
Fertiliser Box
Second Main Seed Box
Agitator w/o Drive
Weight Holder Bracket With Hardware
Compact Extension Hitch
Second Ladder Option

Optional Accessories

Name	3P606NT	3P806NT	3P1006NT
Seed Cup Calibration Tool
Irwin Hose Clamp Pliers
Seed Cup Plugs \| Main Seed Box
Seed Cup Plugs \| Small Seed Box
Keeton Seed Firmers
