KJ-T130/KJ-T180/KJ-T300 Generator

Model Comparison Product Features Specifications

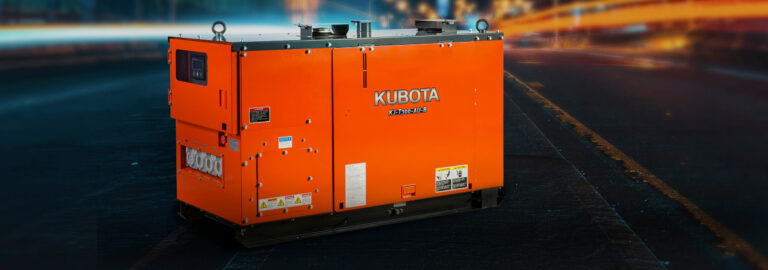

KJ-T130/KJ-T180/KJ-T300 Generator previewKJ-T130/KJ-T180/KJ-T300 Generator
The Kubota KJ-T130-AU-B generator features a four-pole, cabinet style, three-phase diesel generator with a capacity of 12.6kVA and 1500RPM. Available to work under a 415 voltage and run a current (A) of 17.4 amps per phase. The Kubota KJ-T180-AU-B generator is a four-pole, full cabinet style, three-phase diesel generator which has a capacity of 19.8kVA and 1500RPM. Available to work under a 415 voltage and run a current (A) of 25 amps per phase. The Kubota KJ-T300-AU-B generator is a four-pole, full cabinet style, three-phase diesel generator which has a capacity of 30kVA and 1500RPM. Available to work under a 415 voltage and run a current (A) of 41.7 amps per phase. Remote worksites will love the Kubota KJ-T130-AU-B diesel generator.

Model Comparison

Finance Offers
Download Brochure
  • 9.3 hours
  • 7 hours
  • 8.8 hours

Product Features

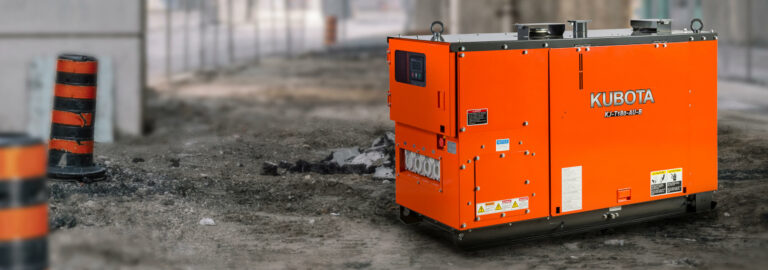

kubota previewkubota
1
2
3
4
5
6

Engine

The Kubota KJ-T130-AU-B diesel generator is backed by our extra reliable D1703 diesel engine, while the KJ-T180-AU-B is powered by a Kubota V2203 diesel engine and the KJ-T300 by a V3300 diesel engine. These engines work hard for primary producers, construction, industrial hire, mining sites and contractors who want a reliable way to fuel up their power tools for longer in the field.

Engine

The Kubota KJ-T130-AU-B diesel generator is backed by our extra reliable D1703 diesel engine, while the KJ-T180-AU-B is powered by a Kubota V2203 diesel engine and the KJ-T300 by a V3300 diesel engine. These engines work hard for primary producers, construction, industrial hire, mining sites and contractors who want a reliable way to fuel up their power tools for longer in the field.

Specifications

Download Brochure
General
Name KJ-T130 KJ-T180 KJ-T300
Fuel Type Diesel Diesel Diesel
Phase Three Three Three
Fuel Tank Capacity 37 l 37 l 68 l
Operating Hours @Full Load 9.3 hours 7 hours 8.8 hours
Starting System Electric Electric Electric
Weight 630 kg 470 kg 880 kg
Sound Levels @7m 73 dBA 75 dBA 75 dBA
Dimensions 1488 x 650 x 971 mm 1488 x 650 x 971 mm 1730 x 805 x 1046 mm
Name KJ-T130 KJ-T180 KJ-T300
Engine Model D1703 V2203 V3300
Engine Type Vertical Water Cooled Vertical Water Cooled Vertical Water Cooled
Displacement 1,647 cc 2,197 cc 3,318 cc
No of Cylinders 3 4 4
Bore & Stroke 87 x 92.4 mm 87 x 92.4 mm 98 x 110 mm
Rated Output 12.5 kW (16.8 hp) 16.9 kW (22.7 hp) 26.8 kW (35.9 hp)
RPM 1,500 rpm 1,500 rpm 1,500 rpm
Name KJ-T130 KJ-T180 KJ-T300
Type Revolving Field Revolving Field Revolving Field
Rated Output 12.5 kVA 18 kVA 30 kVA
Voltage 240/415 240/415 240/415
Frequently 50 Hz 50 Hz 50 Hz
Current 17.4 Amps 25 Amps 41.7 Amps
Power Factor 0.8 1 0.8
Poles 4 4 4
Voltage Regulation AVR AVR AVR
